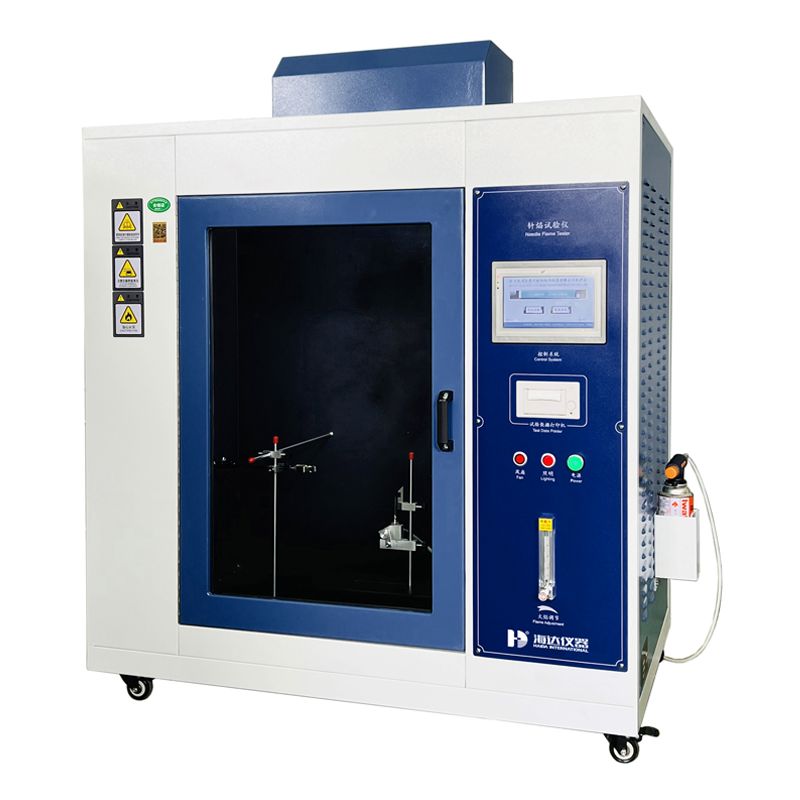

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment
Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Gambar besar :  Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Detail produk:
Tempat asal: Cina
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 6012-hd
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Menyediakan kemampuan: 300 set per bulan

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Deskripsi
Volume Kamar: ≥0,5 m³, dengan pintu observasi kaca Iluminasi internal: <20 lux
Bahan bakar: Gas butana (≥95% kemurnian); Tidak ada masuknya udara ke dalam tabung burner Tinggi api: Disesuaikan: 12mm ± 1mm ​​(termasuk pengukur pengukuran)
Mekanisme Penggerak: Bermotor Timer: Kisaran yang dapat disesuaikan: 0-999,9 detik; Perekaman pengapian/durasi yang dapat dikonfigurasi
tampilan suhu: Kisaran: 0-1000 ° C; Resolusi: 1 ° C. Sumber daya listrik: AC 220V, 50Hz, 1KVA
Menyoroti:

Touch Screen Needle Flame Testing Machine

,

Needle Flame Testing Machine

,

Motorized Drive Needle Flame Testing Machine

Needle Flame Test Instrument

Product Description


This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards. It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).

Test Standard


IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065

Product Specifications
Model 6012-HD
Chamber Volume ≥0.5 m³, with glass observation door
Internal Illuminance <20 Lux
Fuel Butane gas (≥95% purity); no air ingress into burner tube (user-provided)
Burner Specifications Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature 100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included.
Temperature Display Range: 0-1000°C; Resolution: 1°C
Timer Adjustable: 0-99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording.
Drive Mechanism Motorized
Key Features Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation.
Power Supply AC 220V, 50Hz
Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 1Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 2Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 3Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 4Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 5Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
