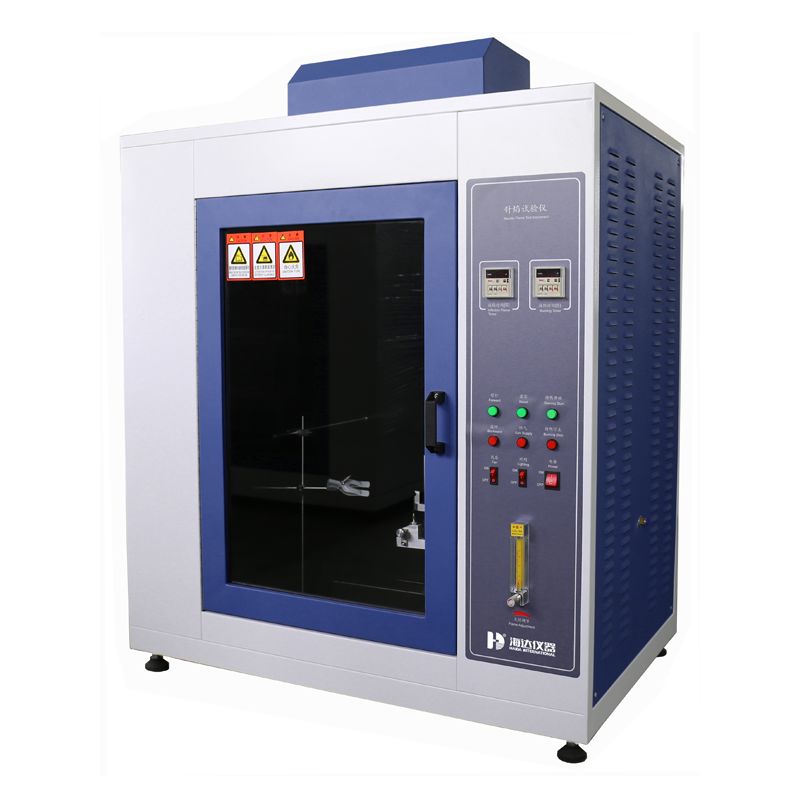

Needle Flame Test Equipment / Button-Control Needle Flame Tester

Needle Flame Test Equipment / Button-Control Needle Flame Tester
Needle Flame Test Equipment / Button-Control Needle Flame Tester

Gambar besar :  Needle Flame Test Equipment / Button-Control Needle Flame Tester

Detail produk:
Tempat asal: Cina
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 6011-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Menyediakan kemampuan: 300 set per bulan

Needle Flame Test Equipment / Button-Control Needle Flame Tester

Deskripsi
Volume Kamar: ≥0,5 m³, dengan pintu observasi kaca Iluminasi internal: <20 lux
Bahan bakar: Gas butana (≥95% kemurnian); Tidak ada masuknya udara ke dalam tabung burner Tinggi api: Disesuaikan: 12mm ± 1mm ​​(termasuk pengukur pengukuran)
Mekanisme Penggerak: Bermotor Timer: Kisaran yang dapat disesuaikan: 0-999,9 detik; Perekaman pengapian/durasi yang dapat dikonfigurasi
Sumber daya listrik: AC 220V, 50Hz, 1KVA
Menyoroti:

Needle Flame Tester

,

needle flame test equipment

,

Button-Control Needle Flame Tester

Needle Flame Testing Instrument

Product Description



This instrument simulates small flames generated under fault conditions (e.g., leakage currents, component overheating, poor contacts) to assess fire hazards.



Needle Flame Testing Instrument is specifically designed for evaluating fire risks in small components where glow-wire or horizontal/vertical flame tests are unsuitable. If a sample ignites during glow-wire testing, the needle flame test further analyzes combustion risks. Applicable to parts of electrical/electronic products and household appliances, such as terminal blocks, centrifugal switches, and rice cooker sockets.



This model features PLC + color LCD touchscreen control with an intuitive interface and includes a built-in printer for recording test conditions and results.

Product Specifications
Model 6011-HD
Control System 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with test data printer.
Display System 7-inch color LCD touchscreen for setting/displaying burn time, test duration, test date, print interface, and operational status.
Chamber Volume ≥0.5 m³, with glass observation door.
Internal Illuminance <20 Lux.
Fuel Butane gas (≥95% purity); no air ingress into burner tube.
Burner Specifications Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature 100°C±5°C to 700°C±3°C in 23.5±1 seconds (optional temperature calibration device available).
Timer Adjustable range: 0-999.9 seconds; Configurable ignition/duration recording.
Drive Mechanism Motorized.
Key Features Automated operation: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and stable performance.
Power Supply AC 220V, 50Hz.
Moel6001-
