5080-HD Digital Bottle Wall Thickness Gauge for PET Containers

5080-HD Digital Bottle Wall Thickness Gauge for PET Containers
5080-HD Digital Bottle Wall Thickness Gauge for PET Containers 5080-HD Digital Bottle Wall Thickness Gauge for PET Containers 5080-HD Digital Bottle Wall Thickness Gauge for PET Containers 5080-HD Digital Bottle Wall Thickness Gauge for PET Containers 5080-HD Digital Bottle Wall Thickness Gauge for PET Containers

Gambar besar :  5080-HD Digital Bottle Wall Thickness Gauge for PET Containers

Detail produk:
Tempat asal: CINA
Nama merek: Haida
Sertifikasi: CE、ISO
Nomor model: 5080-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram
Supply Ability: 300 Sets per Month

5080-HD Digital Bottle Wall Thickness Gauge for PET Containers

Deskripsi
Fungsi: Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker Nama: Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan: LCD, Tampilan Digital Unit beralih: KGF, n. (Opsional), lbf
Kecepatan pengujian: 10 ~ 200 mm/menit Dimensi: 360*264*400mm, 70*34*60 cm, 85*65*80cm
rentang pengukuran: 250-5600 kPa, 10 ~ 1000mn Mode tampilan: Tampilan LCD, Mode Digital
Kriteria Desain: ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87
Menyoroti:

PET Containers Wall Thickness Gauge

,

Digital Bottle Wall Thickness Gauge

,

LCD Display Bottle Wall Thickness Gauge

5080-HD BOTTLE WALL THICKNESS GAUGE
Product Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Testing speed 10 ~ 200 mm/min
Dimension 360*264*400mm, 70*34*60 cm, 85*65*80cm
Measuring range 250-5600 Kpa, 10 ~ 1000mN
Display mode LCD display, digital mode
Design criteria ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87
Product Description

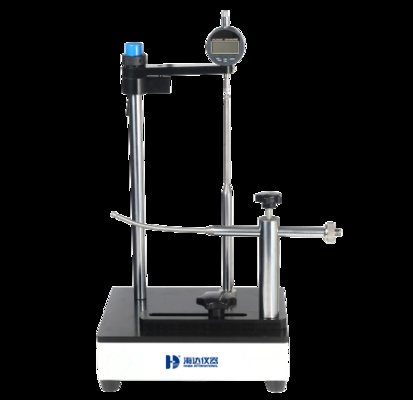

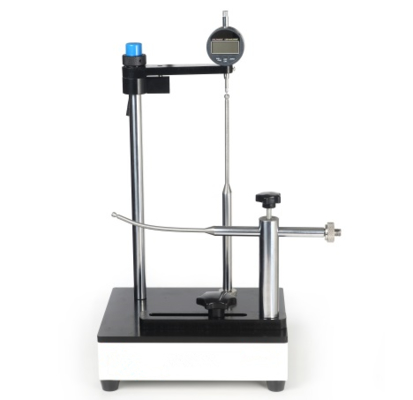

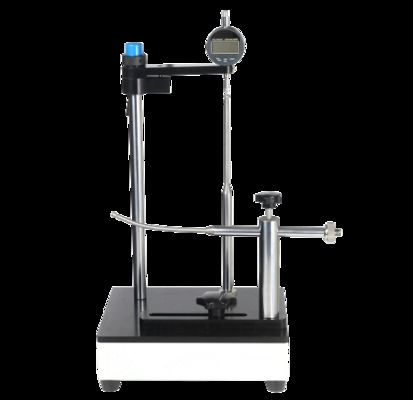

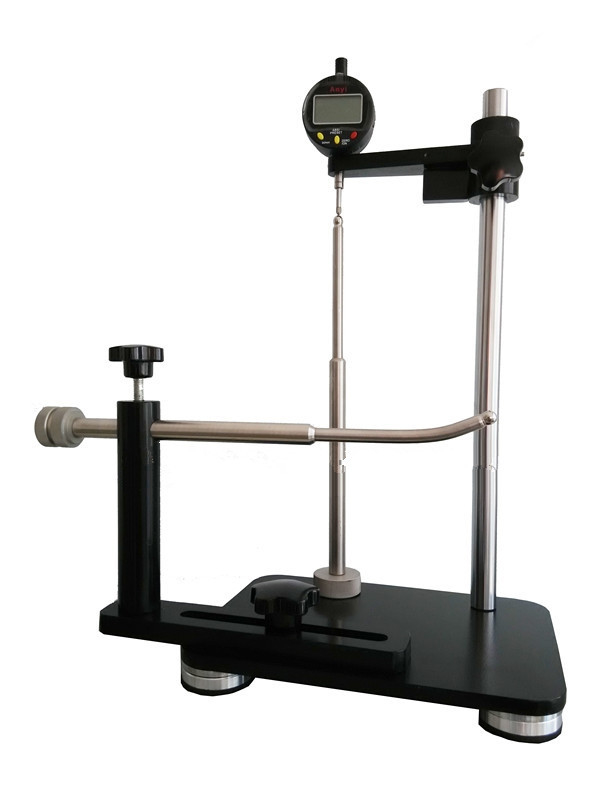

The 5080-HD Bottle Wall Thickness Gauge is the ideal measuring instrument for PET drink bottles, cans, glass bottles, and aluminum pots. It accurately measures wall thickness of packaging containers with complex patterns, offering user-friendliness, durability, and high precision. Widely used in manufacturing enterprises of glass bottles, plastic bottles, buckets, and industries including medicine, healthcare, cosmetics, beverages, oils, and liquor.

Standard

QB/T2665-2004 QBT 2357-1998 QBT 1868-2004

Features
  • Customizable measuring rods for special-shaped samples
  • Suitable for samples with complex patterns such as glass bottles and mineral water bottles
  • Bottle bottom and bottle wall thickness tests can be completed with one machine
  • Super-standard high-precision meter head
  • Simple and durable mechanical design
  • Flexible measurement of large and small samples
  • LCD digital display
  • Data output method: Can connect to computer to output data to EXCEL, Word table for data statistical analysis (optional function)
Technical Parameters
Measuring range 0-12.7mm
Resolution 0.001mm
Diameter of sample 15~200mm (Can be customized)
Height of sample ≤300mm (Can be customized)
Measurement parallelism 400*220*500mm
Weight 10kg
About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
