5090-HD Tensile Test Machine for Film and Paper Packaging

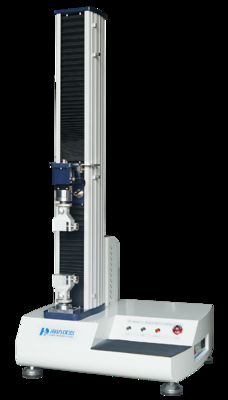

Gambar besar : 5090-HD Tensile Test Machine for Film and Paper Packaging

Detail produk:

Tempat asal:	CINA
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5090-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5090-HD Tensile Test Machine for Film and Paper Packaging

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Unit beralih:	KGF, n. (Opsional), lbf
Mode tampilan:	Tampilan LCD, Mode Digital	Mode getaran:	Bergerak maju mundur
Drive gerakan:	sekrup bola dan motor servo	Kedalaman pemotongan:	<8 mm
Memuat akurasi:	≤0,5%	Muat resolusi:	1/100.000
Rentang amplitudo:	25,4 mm (1 inci)	Area Tes:	10 ± 0,05cm ^ 2
Jatuhkan Platform Area:	(P×L) 1700×1200 mm	Ruang uji:	120012001200mm (dapat dibuat pelanggan)
Berat tes maksimum:	500kg	Ukuran sampel:	100 (L) × 63 (W) mm
Udara terkompresi:	6kg/cm2	Kekuatan:	Listrik
Bola baja:	16mm * 20	Standar Uji:	ISO, ASTM, Tappi, DIN, JIS, GB, dll.
Muat sel:	4 load cell untuk akurasi tertinggi	Guci samping:	Diameter 32 mm (silinder gandar ganda)
Menyoroti:	Film Packaging Tensile Test Machine , High Accuracy Tensile Test Machine , Paper Packaging Tensile Test Machine

5090-HD Tensile Test Machine for Film

Key Features

Multi-functional testing: compression, tensile, burst, and paper testing capabilities
High-precision LCD digital display with multiple unit switching (Kgf, N, Lbf)
Ball screw and servo motor movement drive for precise control

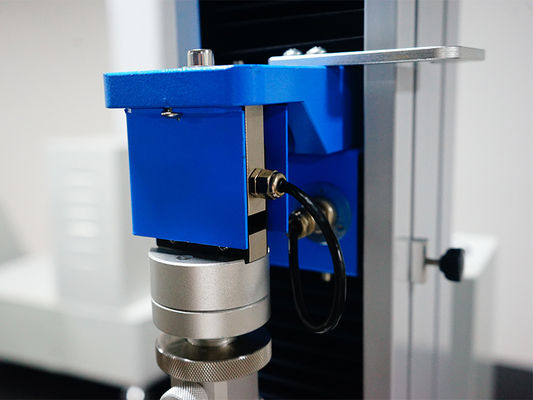

Advanced load cell system with ≤0.5% accuracy and 1/100,000 resolution
Complies with multiple international standards: ISO, ASTM, TAPPI, DIN, JIS, GB

Technical Specifications

Attribute	Value
Display	LCD, Digital display
Movement Drive	Ball screw and servo motor
Load Accuracy	≤0.5%
Load Resolution	1/100,000
Test Space	1200×1200×1200mm (customizable)
Maximum Test Weight	500KG
Power	Electric (220V±10%, 50/60Hz)

Testing Capabilities

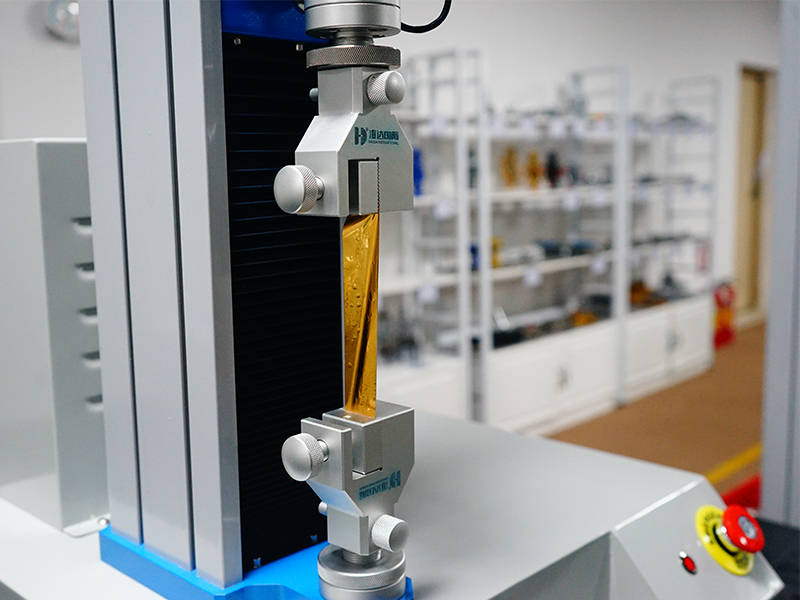

The 5090-HD performs axial tensile tests on samples, measuring changing loads and elongation until breakage to calculate mechanical performance indicators. It features ten professional test procedures including:

Tensile, peeling, tearing, and heat sealing tests
Fixed extension tensile and lower pressure tests
Puncture retention force and compression tests
Rubber plug puncture and ampoule breaking force tests

Advanced Features

World-renowned brand force-value testing system with better than 0.5 level accuracy
Precision ball screw multi-axis positioning technology
Intelligent safety features: limit protection, overload protection, automatic return

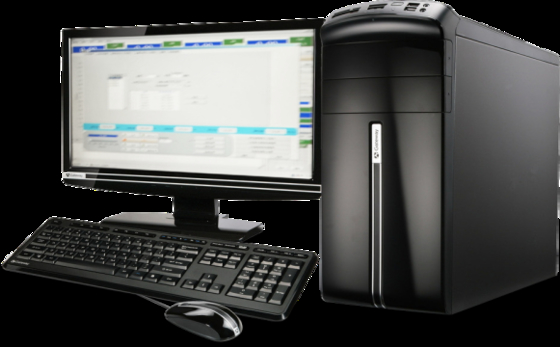

Embedded computer platform with data comparison analysis and multi-unit conversion

Test Applications

Basic Applications	Extended Applications
Tensile strength and deformation rate	Breaking force of ampoule
Heat seal strength	Combination cover opening force
Tear resistance	Pulling force of infusion bag cover
180 degree peel	Adhesive strength test (soft)
Fixed tensile test	Milk cup film peeling force

Industry Applications

The 5090-HD is extensively used in paper goods, packaging, adhesive tapes, plastics, rubber, and quality inspection agencies. Complies with UL, ASTM, JIS, GB, and ISO standards.
