Toilet Seat Swing Life Test Machine with Adjustable Parameters

Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters Toilet Seat Swing Life Test Machine with Adjustable Parameters Toilet Seat Swing Life Test Machine with Adjustable Parameters

Gambar besar :  Toilet Seat Swing Life Test Machine with Adjustable Parameters

Detail produk:
Place of Origin: China
Nama merek: Haida
Sertifikasi: ISO
Model Number: 5058-HD
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Dapat dinegosiasikan
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month
Kontak

Toilet Seat Swing Life Test Machine with Adjustable Parameters

Deskripsi
sumber panas: Pemanas keramik Layar sentuh: LCD
Menampilkan: Layar LCD Waktu pengujian: Bisa disesuaikan
Balas untuk probme: Dalam 24 jam Parameter uji: Suhu, tekanan, berat, dll.
Hasil tes: Data kuantitatif dan kualitatif Metode pengujian: Dampak, abrasi, resistensi kimia, dll.
Tampilan skala: 1 derajat Penggunaan: Menguji peralatan masak untuk daya tahan dan keamanan
Hammer Dampak Baja: Memiliki massa 1kg ± 50g Resolusi skala: 1 °
Kisaran suhu: 0-300 ° C. Disesuaikan: Selamat datang
Uji siklik: 15000 siklik (dapat disesuaikan) Pabrik: Ya
Ketepatan: ± 1 ° C. Catu daya: 220v
Tes Stoke: 20 hingga 60 mm (dapat disesuaikan) Berat Kotor: 210kg
Aplikasi: Laboratorium, Dapur Angkutan: Di laut
Berat: 5kg Sertifikasi: CE, ISO
Menyoroti:

Adjustable Parameters Swing Life Test Machine

,

Toilet Seat Swing Life Test Machine

5058-HD Toilet Seat Ring and Cover Swing Life Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Display LCD screen
Testing Time Adjustable
Test Parameters Temperature, pressure, weight, etc.
Test Results Quantitative and qualitative data
Test Methods Impact, abrasion, chemical resistance, etc.
Temperature Range 0-300°C
Accuracy ±1°C
Power Supply 220V
Test Cyclic 15000 cyclic (adjustable)
Gross Weight 210KG
Certifications CE, ISO
Applications & Test Purpose

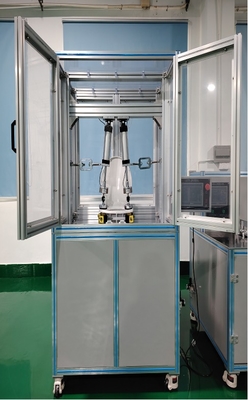

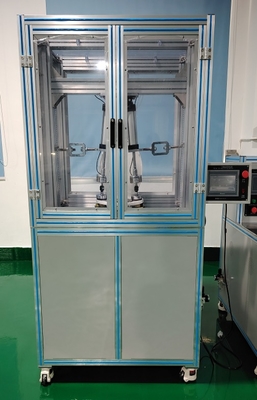

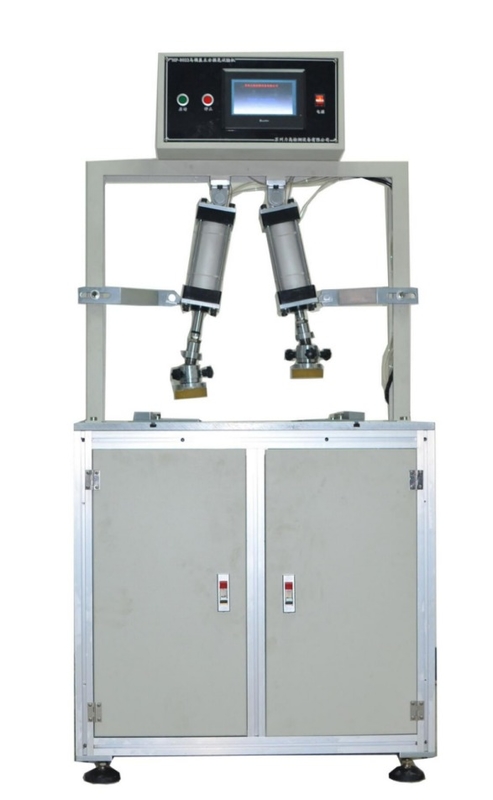

This equipment is designed for swing life testing of toilet seat rings and covers. The sample is installed on the test platform where two cylinder mechanical hands alternately push and press the seat ring and cover (1 second push with 0.5 second interval) to simulate normal use conditions.

Test Standard: JCT 764-2008 Appendix A

Standard Features
Function Swing life test of toilet seat ring and cover
Swing Thrust 0-2000N (adjustable)
Force Application Method Pressure applied by cylinder, force value adjusted via air pressure regulation
Cylinder Specifications Inner diameter φ50.8mm, stroke 127mm
Pressure Plate Specification Diameter φ76.2mm, thickness 19mm
Force Application Time 0-99.9 seconds (adjustable)
Control Mode PLC + human-machine interface
Working Cycles 0-99,999 times (adjustable)
Dimensions 1000mm * 800mm * 1500mm
Product Images
Toilet Seat Swing Life Test Machine with Adjustable Parameters 0 Toilet Seat Swing Life Test Machine with Adjustable Parameters 1 Toilet Seat Swing Life Test Machine with Adjustable Parameters 2 Toilet Seat Swing Life Test Machine with Adjustable Parameters 3
Customer Testimonials
Toilet Seat Swing Life Test Machine with Adjustable Parameters 4 Toilet Seat Swing Life Test Machine with Adjustable Parameters 5
Why Choose Haida International Equipment?
  • Design & Production: Custom solution consultation, special model R&D, cost-performance recommendations
  • Shipping & Delivery: One-stop service from production to installation and training
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: What is your warranty policy?
A: We offer a 1-year warranty including technical support and parts replacement. On-site engineer service is available when necessary.
Q: What is your order process?
A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Q: Can we visit your factory before ordering?
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Q: Do you offer customization services?
A: Yes, we provide both standard and fully customized machines tailored to your specific requirements.
About Haida International Equipment

Established in 2004 and located in Dongguan, Guangdong Province, China, Haida specializes in R&D and production of material testing equipment. With our own research center and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.
