Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Sanitary Tapware Quick-On Valve Cartridge Life Test Machine
Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

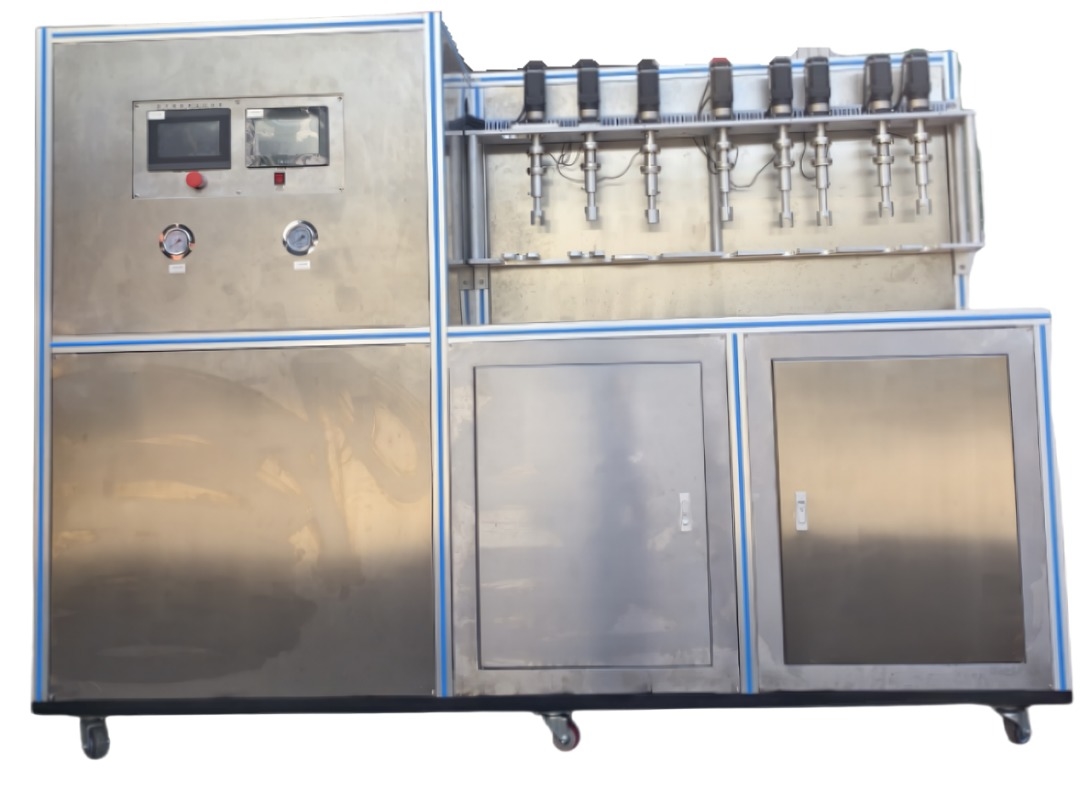

Gambar besar :  Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Detail produk:
Place of Origin: China
Nama merek: Haida
Sertifikasi: ISO
Model Number: 5074-HD
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Dapat dinegosiasikan
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month
Kontak

Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Deskripsi
heat source: Ceramic heater touch screen: LCD
Display: LCD screen Testing Time: Adjustable
Customized: Welcome Test Cyclic: 15000 cyclic (adjustable)
Factory: Yes Application: Laboratory, Kitchen
Transportation: By Sea Tank Body Matiral: PVC
Testing Methods: Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc. Testing Parameters: Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Fixture: two fixtures suitable different cutlery Weight: Unspecified
Torque Rod Diameter: 10±1mm Horizontal Test Floor: angle is justable
Scale Resolution: 1° Temperature Range: Room temperature to 300°C
Test Stroke: 20~66mm Leverage: 1 m
Customer: More than 500+ Test Load: 50N
Dimensions: 1100mm*532mm*389mm Clamp Strength: 130 + 2.5N
Power Supply: AC 220V, 50Hz
Menyoroti:

Cartridge Life Test Machine

,

Sanitary Tapware Test Machine

,

Cartridge Life Test Machine

5074-HD Sanitary Tapware Quick-On Valve Cartridge Life Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Display LCD screen
Testing Time Adjustable
Test Cyclic 15000 cyclic (adjustable)
Application Laboratory, Kitchen
Testing Methods Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc.
Testing Parameters Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Temperature Range Room temperature to 300°C
Test Load 50N
Dimensions 1100mm × 532mm × 389mm
Power Supply AC 220V, 50Hz
Applications & Test Purpose

This machine is designed to conduct the life test of quick-opening valve cores under test conditions specified in ASMEA112.18.1-2005/CSAB125.1-05/GB18145 and EN817 standards.

Standard Features
  • Test Sample: 4 inch quick open × 2 pcs, 8 inch quick open × 2 pcs
  • Plumbing Units: 1 Set 500L
  • Temperature Range: 5℃ ~ 90℃ (individually selectable for hot and cold)
  • Operating Time: 99H59M59S (configurable with pause function)
  • Test Speed: 0-30 times/min adjustable
  • Counting Function: 0-99999999 cycles
  • Control Mode: PLC software with 7" color touch screen
  • Material: SUS304 stainless steel construction
  • Independent control of product movements (up/down, left/right)
Product Images
Sanitary Tapware Quick-On Valve Cartridge Life Test Machine 0
Sanitary Tapware Quick-On Valve Cartridge Life Test Machine 1
Sanitary Tapware Quick-On Valve Cartridge Life Test Machine 2
Sanitary Tapware Quick-On Valve Cartridge Life Test Machine 3
Customer Testimonials
Sanitary Tapware Quick-On Valve Cartridge Life Test Machine 4
Sanitary Tapware Quick-On Valve Cartridge Life Test Machine 5
Why Choose Haida International Equipment?
  • Design & Production: Custom solution consultation and R&D for special requirements
  • Shipping & Delivery: Complete one-stop service from production to installation
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: Rapid response within 2 hours with video inspection and on-site support
Frequently Asked Questions
Q: How about your warranty?
A: We offer a one-year warranty with technical support and replacement parts. Our engineers can provide on-site service when necessary.
Q: What is the order process?
A: Our process includes inquiry, quotation confirmation, production, testing, shipping, and after-sales support.
Q: Can we visit your factory before ordering?
A: Yes, we welcome factory visits and can assist with travel arrangements.
Q: Do you accept customization?
A: We provide both standard and fully customized machines to meet specific testing requirements.
