60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control

60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control
60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control
60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control 60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control 60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control 60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control 60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control

Gambar besar :  60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control

Detail produk:
Place of Origin: Guangdong, China (Mainland)
Nama merek: Haida
Sertifikasi: ISO,CE
Model Number: 60100-HD
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 Set
Harga: Dapat dinegosiasikan
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida
Kontak

60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control

Deskripsi
Use: universal tensile testing machine 10kn Motor: Adjustable-speed motor, ball screw rod
Control: Manual Warranty Period: 1 year
Usage: Material Tensile Strength Test Machine Certifications: ISO 9001, CE
Safety Features: Emergency Stop Button, Overload Protection Sensor: Celtron load cell
Screw: High Precise Ball Screw Weight: Approx.300kg
Elongation Accuracy: 0.001mm Clamping Mode: Hydraulically
Load Cell: China brand load cell, 50 kg (500N) Stoke: 1100mm including fixture
Available Tensile Stroke: 900mm All Weight: 2800kg
Load Accuracy: 0.5% F.S Display Device: PC
Operation Control: Hydraulic Dimensions: 1200mm x 600mm x 1800mm
Capacity: 100 kN Testing Range: 0-1000 mm
Menyoroti:

100kN Thermal Expansion Testing Machine

,

60100-HD Thermal Expansion Testing Machine

,

Hydraulic Control Thermal Expansion Testing Machine

60100-HD Thermal Expansion Coefficient Testing Machine
Product Attributes
Use Universal tensile testing machine 10kN
Motor Adjustable-speed motor, ball screw rod
Control Manual
Warranty Period 1 year
Usage Material Tensile Strength Test Machine
Certifications ISO 9001, CE
Safety Features Emergency Stop Button, Overload Protection
Sensor Celtron load cell
Screw High Precise Ball Screw
Weight Approx. 300kg
Elongation Accuracy 0.001mm
Clamping Mode Hydraulically
Load Cell China brand load cell, 50 kg (500N)
Stroke 1100mm including fixture
Available Tensile Stroke 900mm
All Weight 2800kg
Load Accuracy 0.5% F.S
Display Device PC
Operation Control Hydraulic
Dimensions 1200mm x 600mm x 1800mm
Capacity 100 kN
Testing Range 0-1000 mm
Product Description

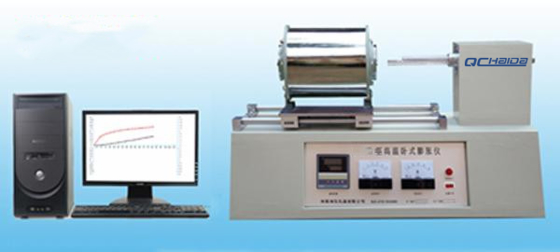

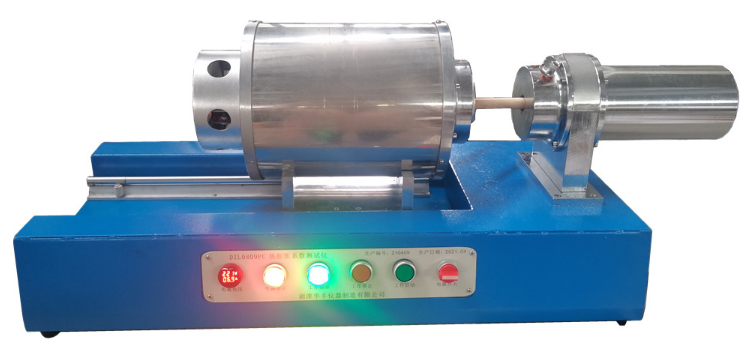

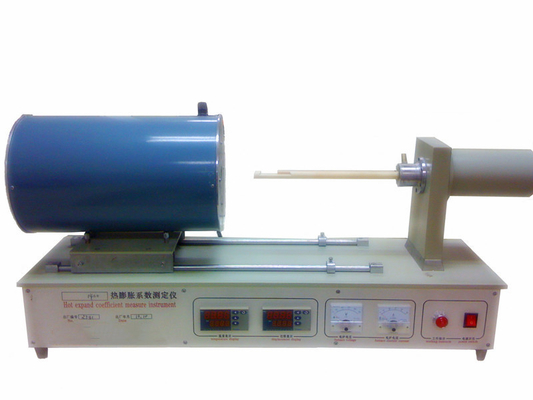

The 60100-HD Thermal Expansion Coefficient Testing Machine is designed to test expansion and shrinkage characteristics of various materials including metals, ceramics, glaze materials, fire-resistant materials, and other non-metallic materials during baking processes. This machine complies with GB/T3810.8-2016 and ISO 10545.8-1995 standards for tile thermal expansion coefficient testing.
Key Features:

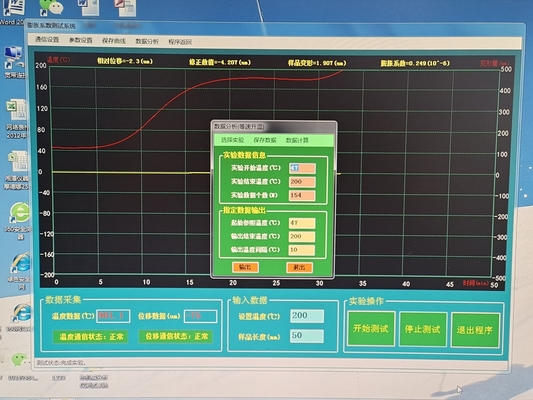

  • Automatically controls temperature, records, saves, and prints data including temperatures and expansion coefficient curves
  • Complete test process controlled by computer
  • Maximum stove temperature options: 1000℃/1400℃/1600℃
  • Bending scope: ±2.5mm
  • Displacement sensor sensitivity: 0.1μm with measurement accuracy of 0.5μm
  • Automatic calibration range
  • Temperature controlling accuracy: ±1℃
  • Automatic calculation of expansion coefficient and line swelling capacity
  • Automatic adjustment of compensation factor
  • Sample size: Ф6～10*50mm, 10*10*50mm
  • Power supply: 220V, 2KW
