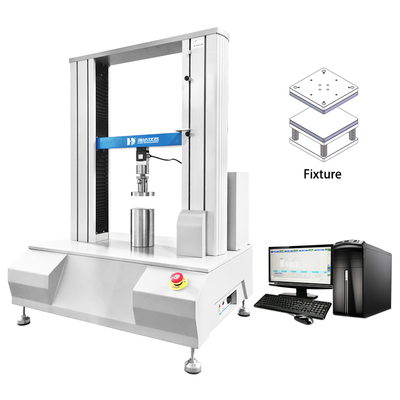

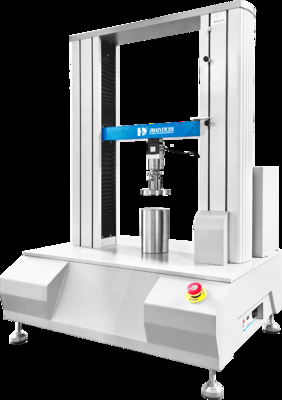

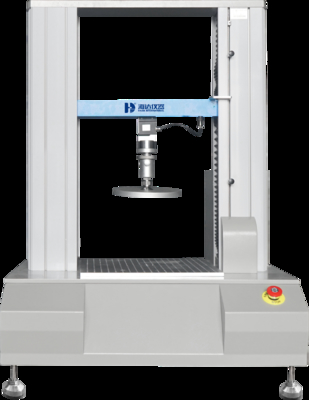

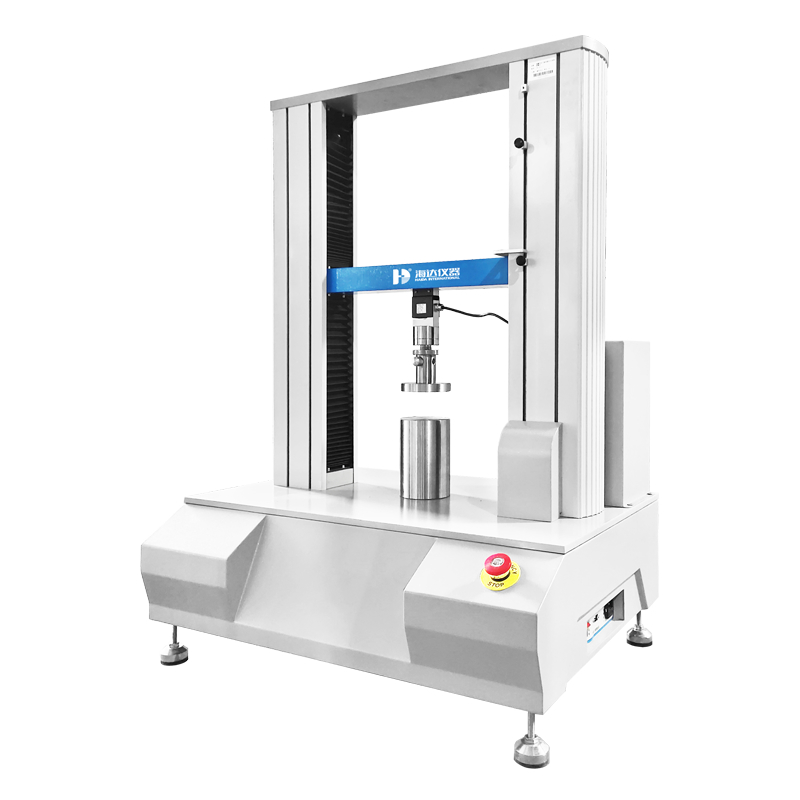

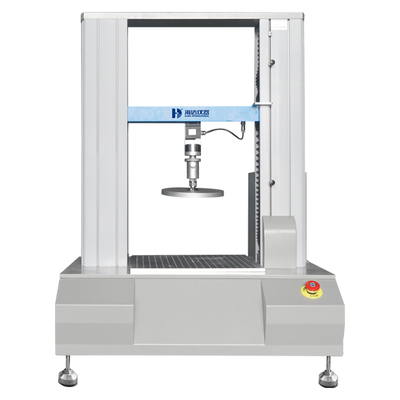

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Sertifikasi
CINA Hai Da Labtester Sertifikasi
CINA Hai Da Labtester Sertifikasi
Ulasan pelanggan
Ya, kami menerima mesin minggu lalu. Kami sangat sibuk saat ini, dan saya belum bisa mengujinya, tapi sepertinya tidak masalah bagi saya.

—— Peter Maas

Atas nama perusahaan untuk mengunjungi pabrik dan perusahaan Anda, staf teknis sangat profesional dan sabar, saya pikir saya akan senang untuk bekerja sama dengan Anda lagi.

—— Steve Hubbard

I 'm Online Chat Now

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity
HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Gambar besar :  HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Detail produk:
Place of Origin: China
Nama merek: Haida
Sertifikasi: CE、ISO
Model Number: HD-A513-C
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Dapat dinegosiasikan
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Deskripsi
Fungsi: Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker Nama: Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan: LCD, Tampilan Digital Fitur: mudah dioperasikan
Metode operasi: Otomatis Jenis produk: Instrumen pengujian
Perangkat perlindungan: Perangkat Perlindungan Jenis Induksi Kontrol: Kontrol PLC
Metode penginderaan: Pemancar tekanan Berhenti: Hentikan tes
Resolusi kekuatan: 1/500000 dari gaya uji maksimum FS Mode getaran: membalas
Menyoroti:

Paper Bowl Compression Test Machine

,

500kg Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine
Product Overview

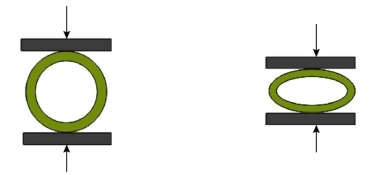

Specialized testing equipment for evaluating the flat compression performance of paper tubes and cores, compliant with GB/T 27591 standards.

Key Features
  • Double-column ball screw drive ensures high-precision and stable operation
  • Force value accuracy better than 1.0 level for precise test data
  • Embedded USB interface or network port for convenient data transmission
  • Adjustable test speed to accommodate various testing requirements
  • PLC control system with automatic operation
  • Pressure transmitter sensing method with 1/500,000 force resolution
Technical Specifications
Capacity 500kg, imported load cell
Load Resolution 1/250,000
Load Precision Within ±0.5%
Motor 400W Panasonic servo motor
Operation Mode PC controlled with software, Windows 10 operation
Test Plate ≥100x100mm
Test Speed 12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke 600mm (excluding fixture)
Test Units gf/kgf/N/kN/lbf/T
Dimensions 790 x 610 x 1100mm (LxWxH)
Weight Approx. 170 kg
Power 1∮, 220V, 500W
General Specifications
Packaging Dimensions 1240 x 840 x 1320mm (WxDxH)
Power Supply Single-phase, 220V±10%, 50/60Hz (customizable)
Gross Weight 180kg
Product Images
HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 0 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 1 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 2
