5V 3A Battery Formation& Grading Machine For Lithium ion Battery

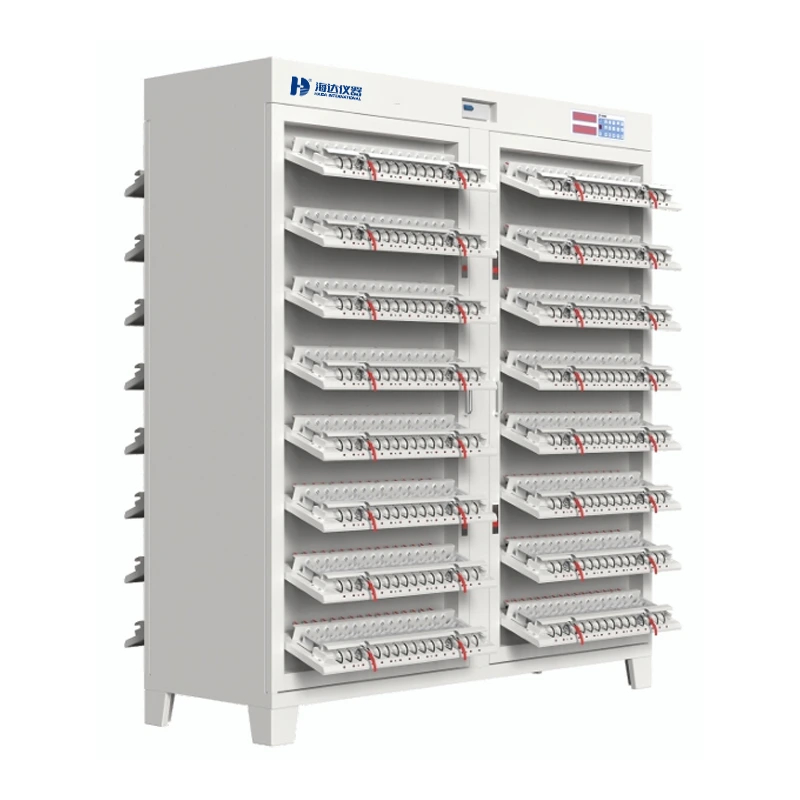

Gambar besar : 5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE,,ISO
Nomor model:	8002-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, T/T, D/A, D/P, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Deskripsi

Aplikasi:	Pengujian Baterai	Metode kabel:	AC empat fase empat fase
Menampilkan:	LCD	Kisaran saat ini:	0-10A
Resolusi:	0.001V/0.001a	Metode kabel:	AC 220V
Ketepatan:	± 0,1%	Ukuran kabinet:	6008501980 (Wdh mm)
Arus keluaran:	100a, 150a, 200a, 300a, 400a, 600a	Waktu switching saat ini:	5ms (-90% ~ 90% FS)
Resolusi Tegangan:	0,1mV	Resolusi Saat Ini:	1mA
Antarmuka komunikasi:	RS232/RS485/USB/Ethernet	Kisaran suhu:	-20 ° C hingga 50 ° C.
Waktu respons saat ini:	5ms (10% ~ 90% FS)	Suhu kerja:	0℃~40℃
Mode kontrol:	Manual/otomatis	Akurasi Tegangan:	± 0,05% FS
Daya output:	24kw

5V 5A Battery Formation& Grading Machine For Lithium ion Battery

Model: 8002-HD

It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics, covering Cell phones, laptops, drones battery capacity and more.

Inquiry

Product Description

Battery Formation& Grading Machine For Lithium ion Battery 5V 5A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.

Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology. after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.

Product Specifications

Model	8002-HD
Channels	512 Channels
Voltage Range	DC0~5V
Voltage Accuracy	0.1mV
Output Current Range	50mA ~5A
Current Accuracy	0.1mA
Jig Form	Push Down Four Wire Method Fixture
Fixture Spacing	85mm
Battery Type	Prismatic Cell
Working Power Supply	Three-Phase Five-Wire Ac380V±10%, 50Hz
Ac Current Distortion Rate	≤5%
Power Consumption	≤13Kw
Power Factor	≥0.99
Charging Efficiency Of Whole Machine	≥75%
Feeder Net Conversion Efficiency	≥70%
Equipment Failure Rate	<1%
Work Environment	Temperature -10 ~ 40℃, Relative Humidity ≤80%
Heat-Dissipating Method	Natural Air Intake And Upward Exhaust
Control mode	Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system
Communication mode	485 serial port communication (baud rate 57600)/TCP communication
Process setting	Up to 32 steps and 256 cycles can be set
Charge voltage	time Constant current, constant voltage, constant current constant voltage
Charge end conditions	Voltage, current, time, capacity, -△V
Discharge mode	Constant current, constant power, constant resistance
Discharge end conditions	Voltage, time, capacity
Time range	0~3000 minutes/step, time unit is min
Time accuracy	<+1%60

Product Characteristics

Accurate sorting to ensure battery consistency Capacity sorting
High-precision measurement: ±0.5‰ current/voltage accuracy
Intelligent grading: According to parameters such as capacity, internal resistance, and voltage, the battery is automatically graded
Performance verification
- Cycle life test: Supports cyclic charging and discharging
- Temperature simulation: Optional temperature control module (-40°C to +85°C) to test battery performance in extreme environments.
Data management
- Report generation: One-click export of PDF/Excel reports to meet quality certification requirements (such as IEC 62133, UL standards).
