5V 60A Battery Formation& Grading Machine

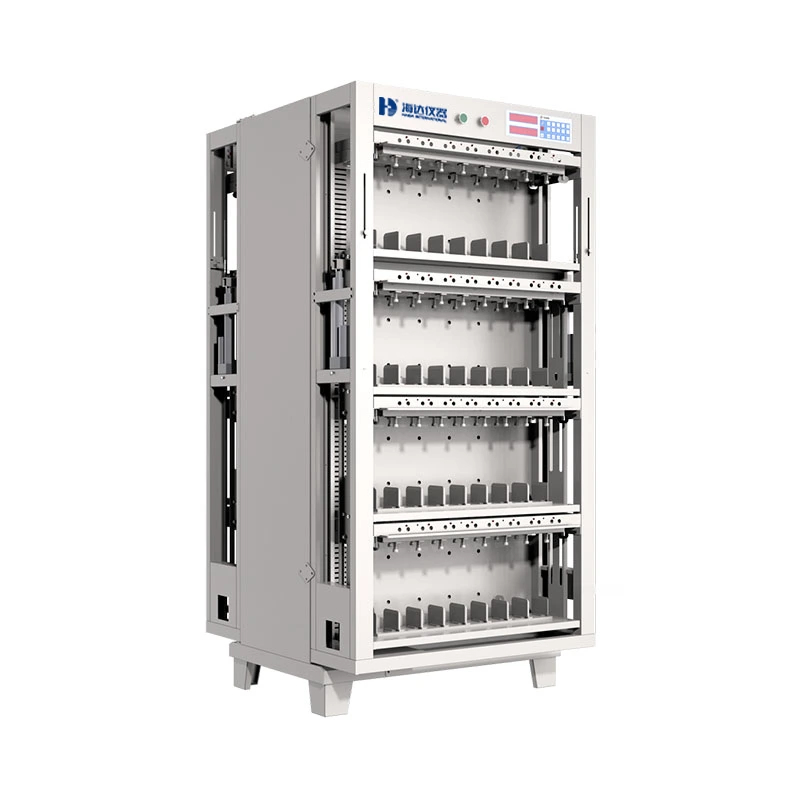

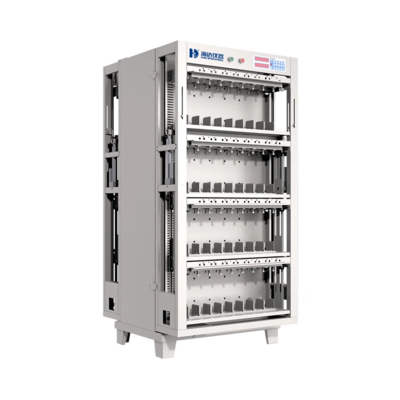

Gambar besar : 5V 60A Battery Formation& Grading Machine

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE,,ISO
Nomor model:	8005-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, T/T, D/A, D/P, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5V 60A Battery Formation& Grading Machine

Deskripsi

Aplikasi:	Pengujian Baterai	Metode kabel:	AC empat fase empat fase
Catu daya:	Ac	Ukuran kabinet:	6008501980 (Wdh mm)
Tingkat perlindungan:	IP20	Kebisingan:	≤65db
Mode kontrol:	Tegangan konstan/arus konstan (CV/CC)	Frekuensi catu daya:	50 ± 5% Hz
Antarmuka komunikasi:	RS232/RS485/USB/Ethernet	Waktu respons saat ini:	10ms (10% ~ 90% FS)
Daya output:	24kw	Suhu operasi:	0-40 ° C.
Jenis:	Sistem Pengujian Baterai	Waktu switching saat ini:	20ms (-90% ~ 90% FS)
Interval Rekaman Data:	10ms	Kekuatan Dinilai:	3.5kw
Metode kabel:	AC 220V

5V 60A Battery Formation& Grading Machine

Power battery modules/packs (such as square aluminum shell LFP/NMC batteries): The capacity division current can reach 100A-500A, testing high voltage and high current performance for electric vehicles and power tools.

Model: 8006-HD

Inquiry

Product Description

Battery Formation& Grading Machine 5V 60A For Lithium ion Battery 5V 3A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.

Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.

Product Specifications

Model	8006-HD
Channels	64 Channels
Voltage Range	DC0~5V
Voltage Accuracy	0.1mV
Output Current Range	200mA ~60A
Current Accuracy	0.1mA
Jig Form	Push Down Four Wire Method Fixture
Fixture Spacing	81mm
Battery Type	Multiple Battery Type
Working Power Supply	Three-Phase Five-Wire Ac380V±10%, 50Hz
Ac Current Distortion Rate	≤5%
Power Consumption	≤13Kw
Power Factor	≥0.99
Charging Efficiency Of Whole Machine	≥75%
Feeder Net Conversion Efficiency	≥70%
Equipment Failure Rate	<1%
Work Environment	Temperature -10 ~ 40℃, Relative Humidity ≤80%
Heat-Dissipating Method	Natural Air Intake And Upward Exhaust
Control mode	Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system
Communication mode	485 serial port communication (baud rate 57600)/TCP communication
Process setting	Up to 32 steps and 256 cycles can be set
Charge voltage	time Constant current, constant voltage, constant current constant voltage
Charge end conditions	Voltage, current, time, capacity, -△V
Discharge mode	Constant current, constant power, constant resistance
Discharge end conditions	Voltage, time, capacity
Time range	0~3000 minutes/step, time unit is min
Time accuracy	<+1%60

Product Characteristics

Accurate sorting to ensure battery consistency Capacity sorting
High-precision measurement: ±0.5‰ current/voltage accuracy
Intelligent grading: According to parameters such as capacity, internal resistance, and voltage, the battery is automatically graded
Performance verification
- -Cycle life test: Supports cyclic charging and discharging
- -Temperature simulation: Optional temperature control module (-40°C to +85°C) to test battery performance in extreme environments.
Data management
- Report generation: One-click export of PDF/Excel reports to meet quality certification requirements (such as IEC 62133, UL standards).
