EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR
EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

Gambar besar :  EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

Detail produk:
Tempat asal: Cina
Nama merek: HAIDA
Sertifikasi: CE
Nomor model: 5035-hd
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

Deskripsi

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR
EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR 0
APPLICATION

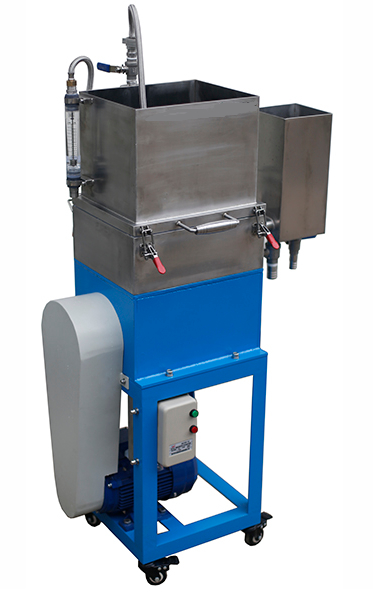

This machine is a laboratory-specific pulp screen (Somerville type equipment), which separates the large sticky matter, plastic, sediment, iron filings and other impurities in the pulp through the up and down vibration of the screen plate. Check and quantify.

STANDARD

TAPPI 275

STANDARD FEATURES
Item Description
Sieve plate size 307mm×268mm
Screen slit length 45 mm, width 0.15 mm
Specification of sieve plate sieve slit 0.15mm
Rubber membrane and actuation: Amplitude 3.2 ± 0.1mm eccentric actuation at 690-700 rpm
Water flow rate control 8.6 L/min. Water pressure: 1.23 Kg/cm2.
Dimensions 720*410*1150mm
Other optional sieve plate sieve slot specifications 0.15mm, 0.2mm, 0.3mm, 0.35mm, 0.4mm.

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR 1

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR 2

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR 3
