5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment

Gambar besar : 5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment

Detail produk:

Tempat asal:	CINA
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5123-hd

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment

Deskripsi

Bahan:	Baja	Fitur opsional:	Kapasitas dan dimensi beban yang dapat disesuaikan
Kata kunci:	mesin pengujian furnitur	Kekuatan:	Elektronik
Metode pengujian:	Pengujian beban dinamis dan statis	Catu daya:	AC/DC
menggunakan:	kursi	Jenis:	Peralatan uji
Sakelar unit:	gf，kgf, N, LBf, W, KN, T	Mode mengemudi:	motor frekuensi variabel dan timing belt
Sumber Daya:	Listrik	Tampilan LCD:	Ya
Sandaran tangan yang dapat disesuaikan:	Ya
Menyoroti:	5123-HD Wheelchair Rain Test Machine , Steel Wheelchair Rain Test Machine

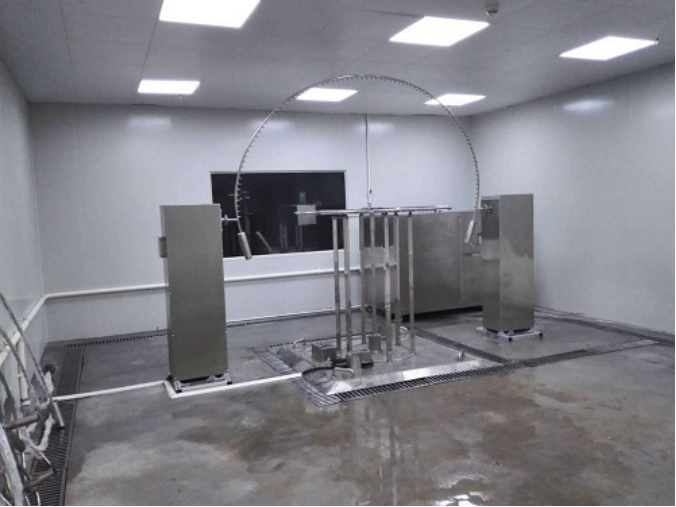

5123-HD Wheelchair Rain Test Machine

EQUIPMENT DETAILS

Image For Reference Only

5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment 0

GENERL SPECIFICATIONS

Power supply source: Three-phase,380V±10%,50/60Hz (canbeappointed)

HS Code: 8424899909

STANDARD FEATURES

Item	Specification
Dimension of waterproof test room (WDH)	550045004500mm (Waterproof test room provided by buyer)
Spray system	Consists of pumps, hydraulic pressure gauge, stationary nozzle stents
Oscillating tube	Radius 800mm
Oscillating angle	IPX3: spray ±60° from vertical line to each side, total 120° IPX4: spray ±180° from vertical line to each side, total 360°
Oscillating speed	IPX3: 2120° for 4s IPX4: 2360° for 12s
Spray nozzle	Diameter: 0.4mm, removable Ensure the water sprays in a line and without tolerance
Distance between two nozzles	50mm
Turntable diameter	1100mm
Turntable rotation speed	1-3 cycles/min
Water flow of each nozzle	0.07 L/min +5%
Test duration	1~999h999min, adjustable
Pressure gauge	80-150Kpa
Distance from nozzle to specimen surface	200mm
Material	Oscillating tube / spray nozzle / sample turntable - Stainless steel
Chamber material	Stainless steel, with observation window
Safety protection device	Short circuit protection, grounding protection, water shortage protection, audible and visual alarm
