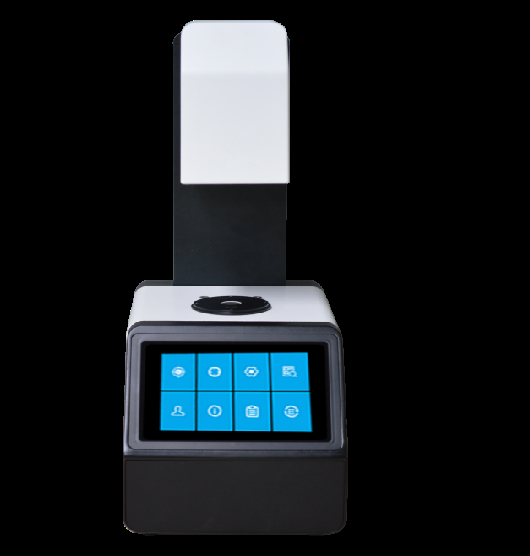

EQUIPMENT DETAILS OF 5096-HD LUMINOUS TRANSMITTANCE HAZE METER
***Picture for reference
DESCIBTION
It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measuremen trequirement.
STANDARD
ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
FEATURE
1). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose lifetime can reach 10 years.
8). Small size and light weight which makes it much easier to carry.
TECHNICAL PARAMETER
|
Measuring range
|
0-100%
|
|
Light source
|
CIE-A,CIE-C,CIE-D65
|
|
Spectral Response
|
CIE Luminosity function Y/V
|
|
Geometry
|
0/d
|
|
Lighting and sample aperture size
|
15mm/21mm
|
|
Resolution
|
0.01%
|
|
Repeatability
|
Light transmittance: ≤ 0.1%
Haze: If H ≤ 10%, ≤ 0.05%;
If H>10%, ≤0.1%
|
|
Sample size
|
Thickness ≤145mm
|
|
Minimum reading
|
0.1%
|
|
Memory
|
20000 value
|
|
Interface
|
USB
|
|
Power
|
DC24V
|
|
Working environment
|
10~40℃, RH≤80%, (under 35℃,No condensation of moisture)
|
|
Storage environment
|
-20℃~50℃, RH≤80%, (under 35℃, No condensation of moisture)
|
|
Machine size
|
310 x 215 x 540mm
|
|
Optional
|
Fixture, haze standard plate, 5/7/10mm Custom Made Aperture
|
