High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment

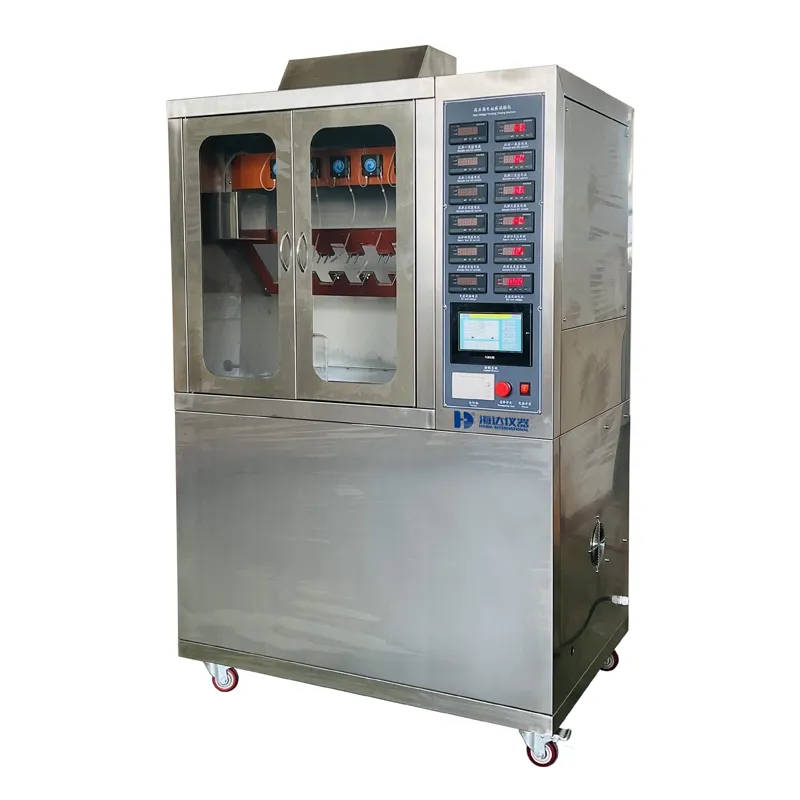

Gambar besar : High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE,,ISO
Nomor model:	6007-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Menyediakan kemampuan:	300 set per bulan

Kontak

High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment

Deskripsi

Saluran Uji:	5 kelompok uji independen	Stabilitas Tegangan:	± 1%
Rentang tegangan uji:	100V-6000V (terus-menerus dapat disesuaikan)	Mode tegangan output:	AC/DC (Switchable)
Regulator tegangan:	Output: 0-250V Disesuaikan; Kapasitas: 5kva	Durasi Tes:	6 jam
Interval tetesan:	Disesuaikan: 0-99,99 detik/menit/jam	Volume Kamar:	900L × 650W × 950H (mm); 0,56 m³
Sumber daya listrik:	AC 220V, 50Hz, 1KVA
Menyoroti:	High Voltage Tracking Resistance Test Machine , High Voltage Tracking Resistance Test Equipment , 6000V Tracking Resistance Test Equipment

High Voltage Tracking Resistance Tester

This instrument is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. It simulates severe environmental conditions by applying liquid contaminants and inclined samples under power frequency (45Hz-65Hz) to assess the tracking and erosion resistance grades of electrical insulation materials.

The tester strictly complies with GB/T 6553-2014 and IEC 60587:2007 standards.

Model	6007-HD
Test Channels	5 independent test groups.
Voltage Stability	±1%
Test Voltage Range	100V-6000V (continuously adjustable)
Output Voltage Mode	AC/DC (switchable)
Voltage Regulator	Output: 0-250V adjustable; Capacity: 5kVA
Test Transformer	Capacity: 5kVA; Max. output voltage: AC 6000V
High-Precision Stabilizer	Output: AC 220V; Power: 6000W; Accuracy: ±1%
Electrodes	Material: 304 stainless steel, thickness: 0.5mm; Electrode spacing: 50.0mm ±0.1mm
Overcurrent Protection	Trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Tracking Criteria	Per GB/T 6553-2014 Clause 4.1.2: Voltage applied (2.5kV/3.5kV/4.5kV) with contaminant flow; current must remain below 60mA for 6 hours to pass.
Test Duration	6 hours.
Droplet Interval	Adjustable: 0-99.99 seconds/minutes/hours
Droplet System	High-precision peristaltic pump (LEAF); Flow rate: 0.00185-20 mL/min; Speed: 0.1-50 rpm; Accuracy: <0.5%.
Test Solution	Mixture of ammonium chloride, isooctylphenoxy polyethoxy ethanol (nonionic wetting agent), and deionized water. Resistivity: (3.95 ±0.05) Ω·m at (23±1)°C
Filter Paper	Standard dimensions; Thickness: 0.15-0.17mm
Chassis Material	SUS304 stainless steel (brushed finish)
Contaminant Tank	316 stainless steel with sealed design.
Chamber Volume	900L × 650W × 950H (mm); 0.56 m³
Overall Dimensions	1300L × 700W × 1800H (mm)
Control System	PLC + touchscreen; Automated report generation; Built-in thermal printer for real-time results.
Design Features	Integrated structure with control panel on the right
	Glass-view door for observation
	Top-mounted exhaust fan for fume extraction post-test

High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment 0

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment 4

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
