Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine

Sertifikasi
CINA Hai Da Labtester Sertifikasi
CINA Hai Da Labtester Sertifikasi
Ulasan pelanggan
Ya, kami menerima mesin minggu lalu. Kami sangat sibuk saat ini, dan saya belum bisa mengujinya, tapi sepertinya tidak masalah bagi saya.

—— Peter Maas

Atas nama perusahaan untuk mengunjungi pabrik dan perusahaan Anda, staf teknis sangat profesional dan sabar, saya pikir saya akan senang untuk bekerja sama dengan Anda lagi.

—— Steve Hubbard

I 'm Online Chat Now

Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine

Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine
Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine

Gambar besar :  Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine

Detail produk:
Tempat asal: Cina
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 6018-hd
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Menyediakan kemampuan: 300 set per bulan

Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine

Deskripsi
Volume Kamar: ≥0,75 m³, dengan pintu observasi kaca Sudut pembakar: Dapat Disesuaikan: 20 °, 45 °, 90 ° (vertikal)
Bahan bakar: Metana tingkat industri (≥98% kemurnian, disediakan pengguna) Tinggi api: Disesuaikan: 20mm-175mm (patuh standar)
Sumber daya listrik: AC 220V, 50HZ Dimensi (P×L×T): 126 × 70 × 130cm (termasuk kastor)
Menyoroti:

Button-Controlled Horizontal Flame Test Machine

,

Button-Controlled Vertical Flame Test Machine

Horizontal & Vertical Burning Test Apparatus

Product Description

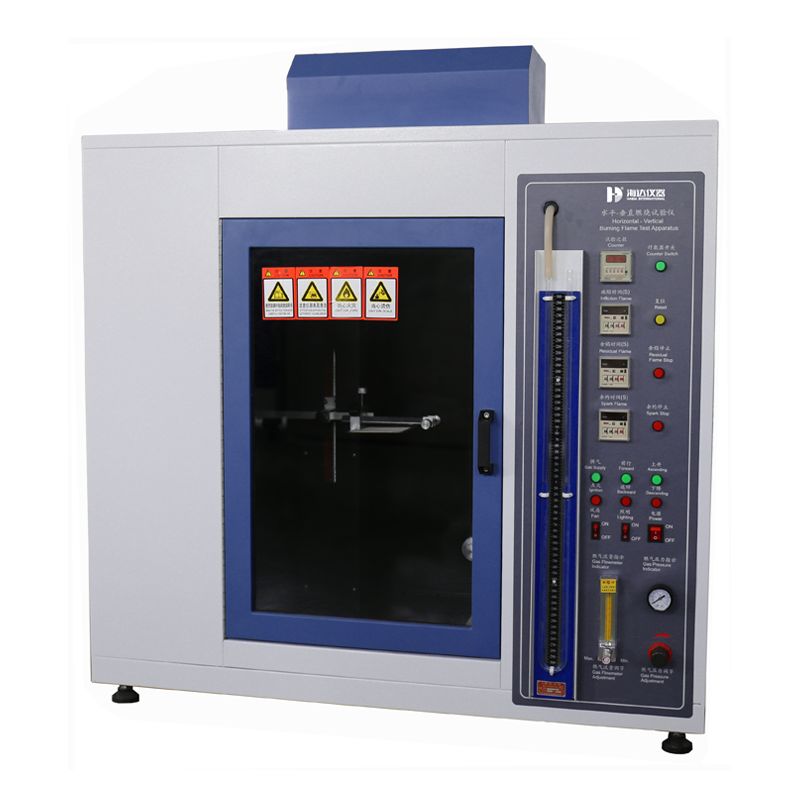

This apparatus is designed to evaluate the burning characteristics of plastic materials in accordance with UL 94 (Flammability of Plastic Materials for Parts in Devices and Appliances).
It conducts horizontal and vertical flammability tests on plastic components, featuring: Motorized operation for safety and ease of use. Gas flow meter for precise flame adjustment.

Test standard

UL 94, GB/T 2408, IEC 60695-11-4, GB/T 5169.22, IEC 60695-11-3, GB/T 5169.15, IEC 60695-11-10, GB/T 5169.16, UL 60065, GB/T 5169.17-2017, IEC 60695-11-20.

Product Specifications
Parameter Description
Chamber Volume ≥0.75 m³, with glass observation door.
Test Timing Adjustable: 0-99 minutes 99 seconds for:
• Flame application time
• Afterflame time
• Afterglow time
Burner Angle Adjustable: 20°, 45°, 90° (vertical).
Burner Specifications Nozzle inner diameter: Ø9.5±0.3mm; Effective length: 100±10mm; Equipped with air adjustment holes.
Fuel Gas Industrial-grade methane (≥98% purity, user-provided).
Flame Height Adjustable: 20mm-175mm (standard-compliant).
Key Features Integrated lighting, exhaust system, gas flow/pressure regulators, pressure gauge, U-tube manometer, and sample fixture.
Dimensions (L×W×H) 126×70×130cm (including casters).
Power Supply AC 220V, 50Hz.

el61-
Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine 1Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine 2Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine 3

 Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine 4Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine 5

Button-Controlled Horizontal Vertical Flame Test Machine / Horizontal Tensile Testing Machine 6

Why Choose Us?

Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.

Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.

Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.

Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection





FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
