Detail produk:
|
Penggunaan: | Kontrol dan pengujian kualitas | Kapasitas transformator: | 1000VA |
---|---|---|---|
Kecepatan dampak: | 3.4m/s | Landasan pacu: | Panjang 100mm |
Ukuran eksternal: | 900*500*800 (W*d*h) | sudut tumbukan: | 90 derajat |
Penguji suhu: | Suhu kamar hingga 200°C | Dimensi: | 650mm×400×830mm |
Rentang waktu: | 3 menit (dapat diatur secara sewenang -wenang) | Rentang Pengukuran Saat Ini: | 10pa ~ 1mA |
Beban perlengkapan: | 2,5N | Mode yang Dihasilkan Ozon: | Generator ozon atau metode penyerapan UV |
horisontal: | 500mm * 250mm * 500m | Kisaran ketebalan spesimen: | 0 ~ 60 mm |
Ukuran spesimen: | 16mm, 6-15mm (D) | Pengamat: | CIE 10° Pengamat standar |
Spesifikasi: | 20-88HRA, 20-100HRB, 20-70HRC | Resolusi tekanan: | 0,001mpa (0,01bar atau 1psi) |
Mode uji a: | Suhu kamar | Tampilan: | Digital |
Kecepatan tes: | Bisa disesuaikan | Berat bola: | 5kg |
Dimensi eksterior: | 95x150x105cm | Pukulan pukulan: | 25mm |
Keseragaman suhu: | ± 2 ℃ | Mengontrol akurasi: | ±0,2°C |
Menyoroti: | Thermal Conductivity Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester |

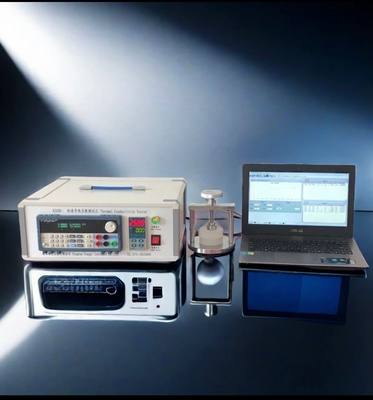

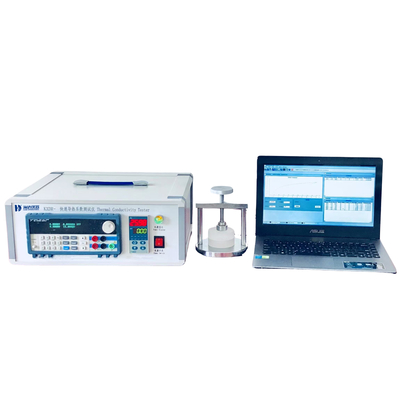

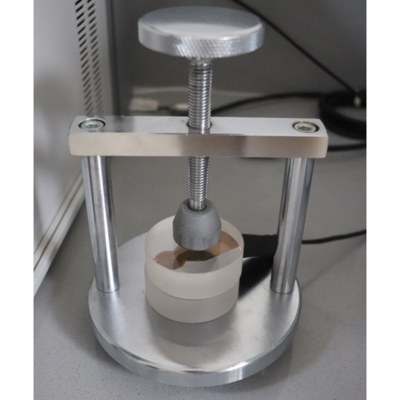

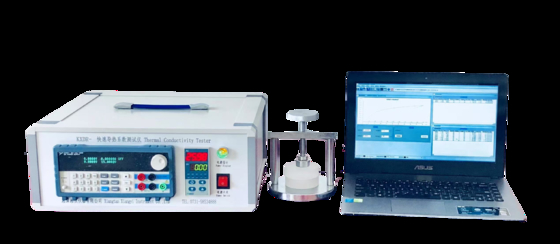

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
Technical Parameters
Item | Parameters |
Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
Measurement relative error | ≤3% |
Repeatability error | ≤3% |
Temperature resolution | 0.01℃ |
Measuring time | 2~180 seconds |
Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
Control mode | By computer and software |
Machine dimension | (L*W*H)380*400*165mm |
Machine weight | Approx. 5KG |
Power | AC 220V±10%, 50/60 Hz, 200W |
