Detail produk:
|
Fungsi: | Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker | Nama: | Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst |
---|---|---|---|
Menampilkan: | LCD, Tampilan Digital | Unit beralih: | KGF, n. (Opsional), lbf |
Testing speed: | 10 ~ 200 mm/min | Dimensi: | 360*264*400mm, 70*34*60 cm, 85*65*80cm |
rentang pengukuran: | 250-5600 kPa, 10 ~ 1000mn | Mode tampilan: | Tampilan LCD, Mode Digital |
Kriteria Desain: | ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87 | ||
Menyoroti: | Bottle Compression Test Machine,Precise Bottle Compression Test Machine |

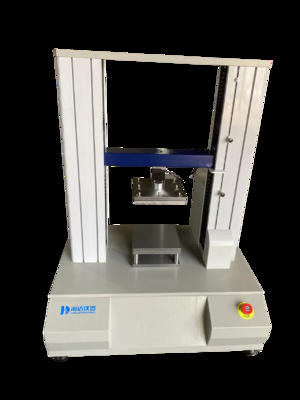

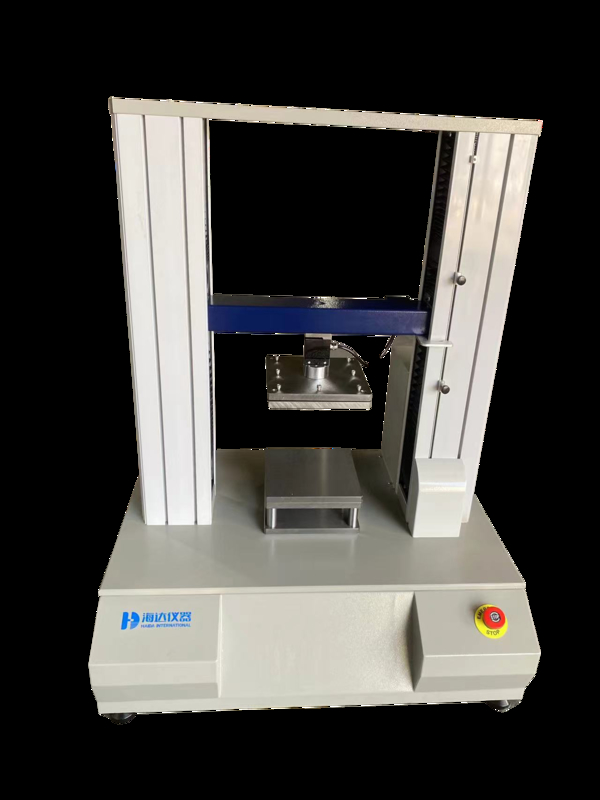

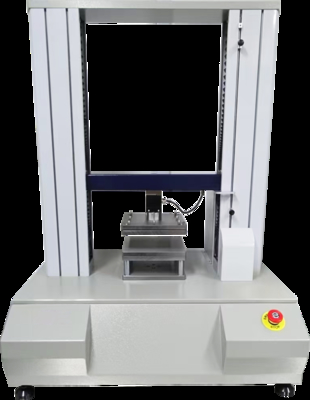

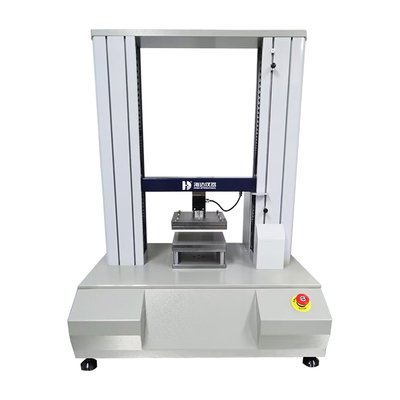

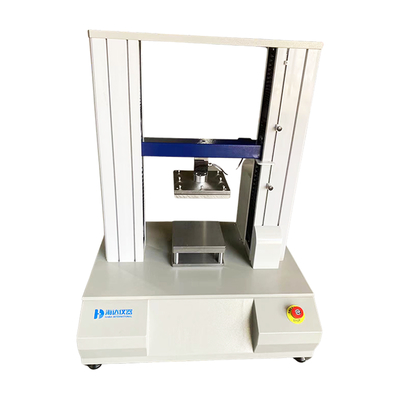

This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.
It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.
ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453
Packaging Dimensions: (WxDxH) 1240 x 840x1320m
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 180kg
Item | Description |
---|---|
Capacity | 500kg, imported load cell |
Load resolution | 1/250,000 |
Load Precision | Within ± 0.5% |
Motor | 400W Panasonic servo motor |
Operation Mode | Controlled by PC with software, Windows 10 operation |
Test Speed | 0.1-500mm/min adjustable |
Max. Stroke | 600mm (excluding fixture) |
Test unit | gf/kgf/N/kN/lbf/T |
Dimensions | (L*W*H)790 x 610 x 1100mm |
Weight | Approx. 170 kg |
Power | 1∮, 220V, 500W |
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
