Paper Tube Compressive Strength Tester ASTM D3078 GB/T 15171

Gambar besar : Paper Tube Compressive Strength Tester ASTM D3078 GB/T 15171

Detail produk:

Tempat asal:	CINA
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5083-hd

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

Paper Tube Compressive Strength Tester ASTM D3078 GB/T 15171

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Unit beralih:	KGF, n. (Opsional), lbf
Mode tampilan:	Tampilan LCD, Mode Digital	Kriteria Desain:	ASTM D3078, GB/T 15171
Catu daya:	220V, 50Hz	Memuat akurasi:	≤0,5%
Pelat cetak:	φ 65mm φ 65mm × 20mm × 10mm	Menangkal:	LCD, 0~999,999
Muat sel:	1 Load Cell Untuk Akurasi Tertinggi	Kecepatan pengujian:	2 °/ detik
Mode tampilan:	LCD	Berat tes maksimum:	500kg
resolusi tertinggi:	0.1n;	Udara terkompresi:	6kg/cm2
Kapasitas kekuatan:	5,3 HP	Metode penginderaan:	pemancar tekanan
Jatuhkan Platform Area:	(P×L) 1700×1200 mm	Berat berat:	7kgf
Model:	Ppti-100
Menyoroti:	ASTM D3078 Compressive Strength Tester , Paper Tube Compressive Strength Tester , GB/T 15171 Compressive Strength Tester

EQUIPMENT DETAILS FOR 5083-HD LEAK TEST MACHINE (VACUUM TESTER)

Product Specifications

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Display mode	LCD display, digital mode
Design criteria	ASTM D3078, GB/T 15171
Power Supply	220V, 50Hz
Load Accuracy	≤0.5%
The Printing Plate	φ 65mm φ 65mm × 20mm × 10mm
Counter	LCD, 0~999,999
Load Cell	1 Load Cell For Highest Accuracy
Testing Speed	2°/ second
Display Mode	LCD
Maximum Test Weight	500KG
The Highest Resolution	0.1N
Compressed Air	6 kg/cm2
Power Capacity	5.3 HP
Sensing Method	Pressure Transmitter
Drop Platform Area	(L×W) 1700×1200 mm
Heavy Weight	7kgf
Model	PPTI-100

Product Description

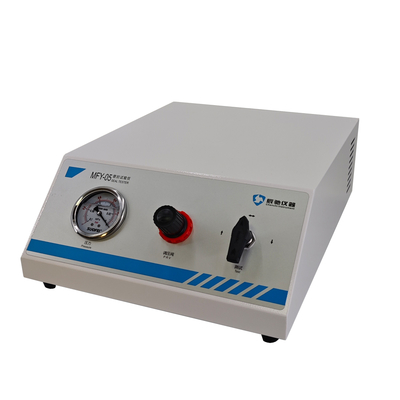

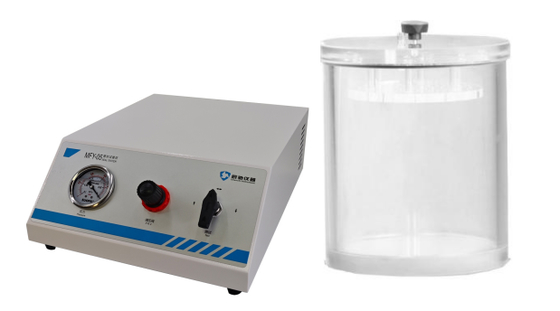

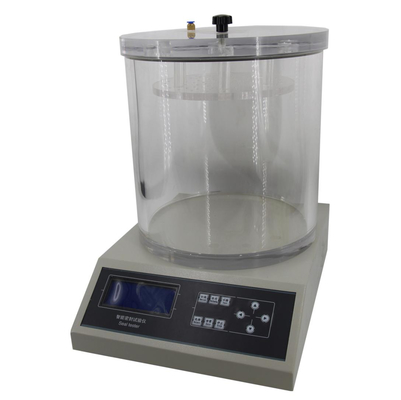

This leak test machine is suitable for sealing tests of bottles, pipes, cans, and boxes in industries including food, pharmaceuticals, medical equipment, daily chemicals, automotive, electronic components, and stationery. It can also evaluate sealing performance after drop tests and pressure resistance tests.

Design Standards

ASTM D3078, GB/T 15171

Test Principle

By evacuating the vacuum chamber, the sample immersed in water generates a pressure difference between inside and outside, allowing observation of gas escape to determine sealing performance
Through vacuum chamber evacuation, the sample develops internal/external pressure difference, enabling observation of sample expansion and shape recovery after vacuum release to assess sealing capability

Technical Parameters

Item	Description
Vacuum Density	-90-0kPa
Accuracy	± 0.1kPa
Pressure speed	1m/s

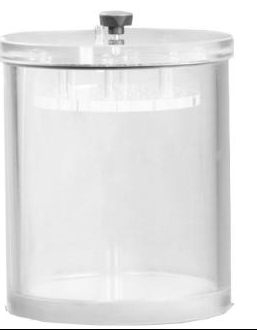

Available Vacuum room Size	Standard: Φ270mm×210mm(H) (custom sizes available)
Air pressure	0.7MPa (user-provided)
Gas Source interface	Φ6PU pipe
Control ways	Microcomputer control, automatic test
Display ways	LCD display
Power	AC 220V 50Hz (AC110V 50HZ available)
Standard Configuration	Main unit, experimental sealed barrels, power cords
Net Weight	16kg
Dimensions	(L×W×H) 420×320×520mm

About Haida

Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
