5084-HD Leak Burst Tester for Paper Packaging Compression Tests

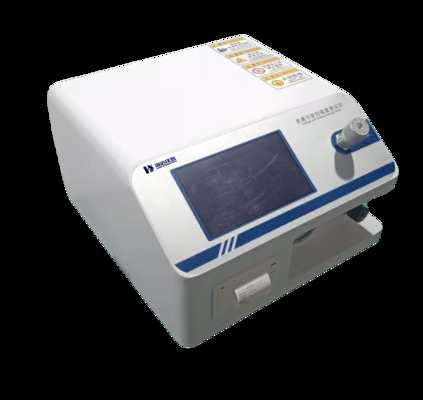

Gambar besar : 5084-HD Leak Burst Tester for Paper Packaging Compression Tests

Detail produk:

Tempat asal:	CINA
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5084-hd

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5084-HD Leak Burst Tester for Paper Packaging Compression Tests

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Unit beralih:	KGF, n. (Opsional), lbf
Kecepatan pengujian:	10 ~ 200 mm/menit	Dimensi:	360264400mm, 703460 cm, 856580cm
rentang pengukuran:	250-5600 kPa, 10 ~ 1000mn	Mode tampilan:	Tampilan LCD, Mode Digital
Kriteria Desain:	ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87
Menyoroti:	Paper Packaging Compression Tester , Digital Display Leak Burst Tester , Leak Burst Compression Tester

5084-HD Leak Burst Tester

Product Attributes

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper GSM tester/bursting strength tester, paper testing instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Testing speed	10 ~ 200 mm/min
Dimension	360264400mm, 703460 cm, 856580cm
Measuring range	250-5600 Kpa, 10 ~ 1000mN
Display mode	LCD display, digital mode
Design criteria	ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87

Product Description

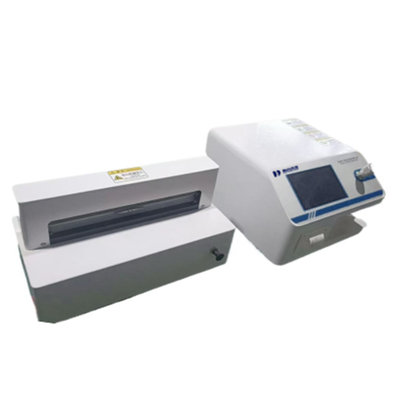

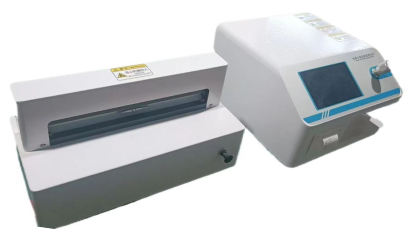

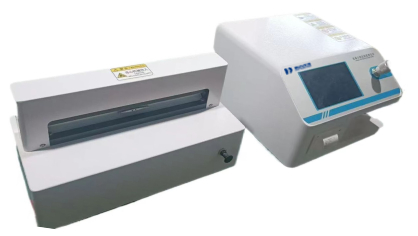

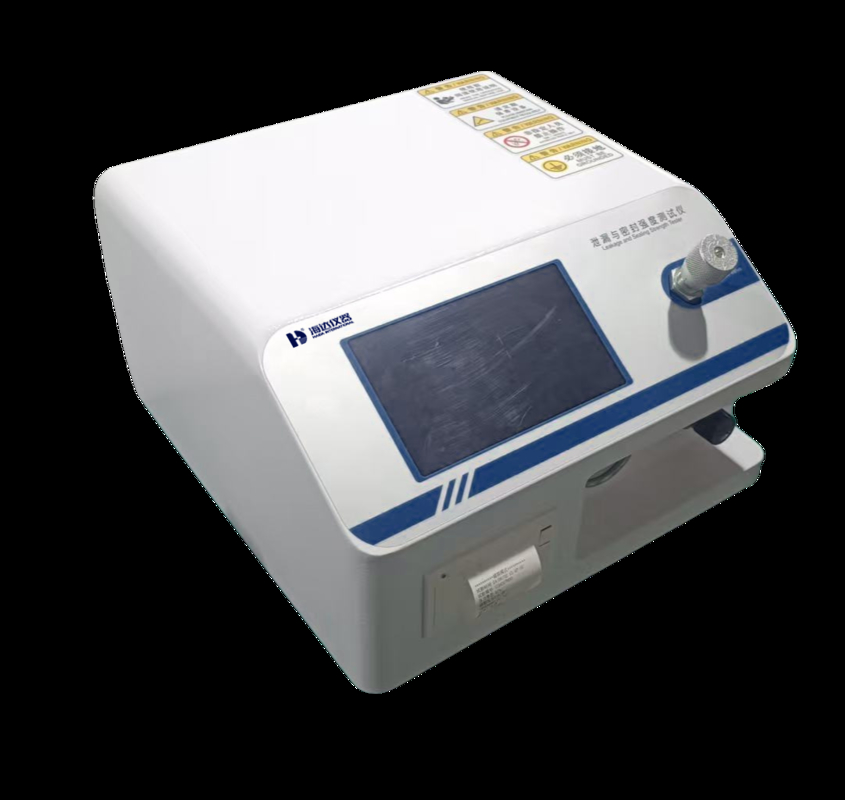

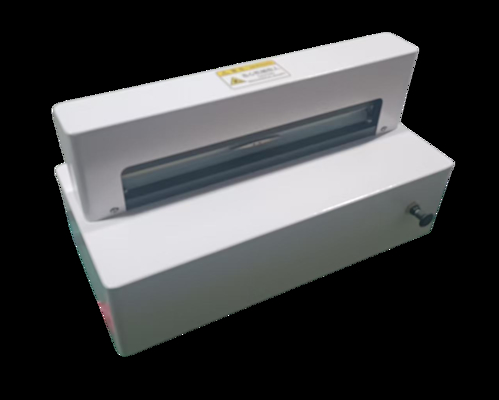

The 5084-HD Leak Burst Tester is professionally designed to test the comprehensive sealing performance of various soft packages (including heat-sealed/bonded aseptic packaging and hoses) as well as bottle caps and bottles. This precision instrument provides quantitative measurement of:

Sealing strength and heat-sealing quality
Whole bag bursting pressure and sealing leakage
Material compressive and bursting strength
Bottle cap sealing and connection release strength
Material stress strength
Bottle compression resistance and burst resistance
Overall sealing pressure resistance of hoses

This tester provides all-round reliability verification from edge sealing to connection parts, ensuring comprehensive quality control.

Design Standards

ASTM F1140, ASTM F2054, ISO 11607-1, ISO 11607-2

Technical Parameters

Item	Description
Test range	0.00 ~ 600.00Kpa (standard configuration)
Air source pressure	0.5MPa ~ 0.7MPa (air source user-provided)
Air source interface	Φ6 mm polyurethane tube
Dimensions	400 (L) * 400 (W) * 240 (H) mm
Test seat size	280mm (L) * 380mm (W) * 380mm (H) (can be customized)
Net weight	30kg (Including Test Fixture)

About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
