5085-HD Dart Impact Tester for Paper Packaging ASTM D1709

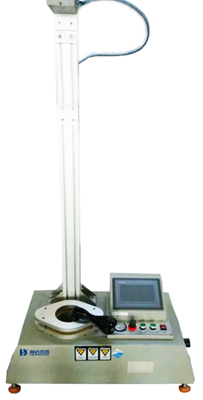

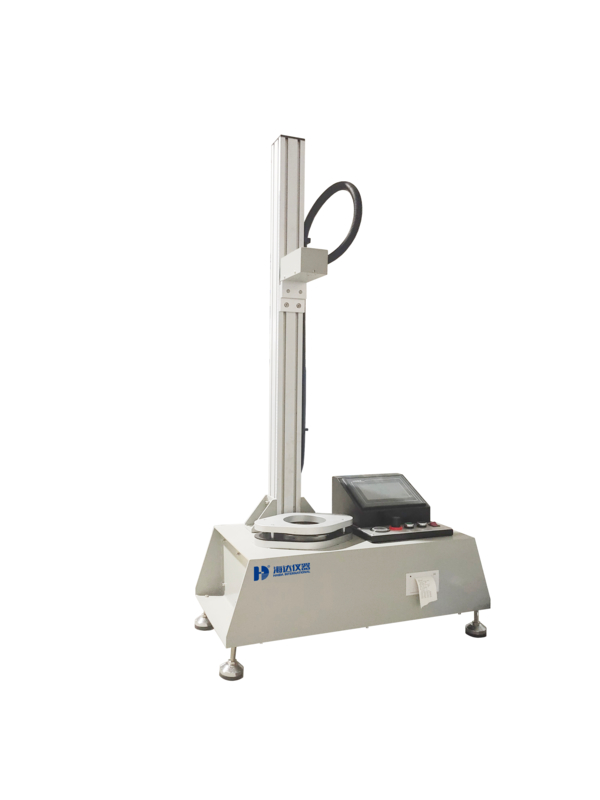

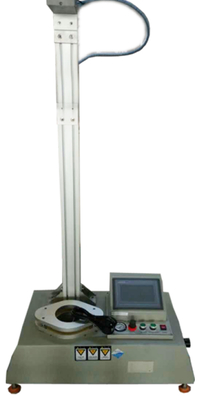

Gambar besar : 5085-HD Dart Impact Tester for Paper Packaging ASTM D1709

Detail produk:

Tempat asal:	CINA
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5085-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5085-HD Dart Impact Tester for Paper Packaging ASTM D1709

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Unit beralih:	KGF, n. (Opsional), lbf
Mode tampilan:	Tampilan LCD, Mode Digital	Kriteria Desain:	ISO 2248, JIS Z0202-87
Kecepatan tes:	3 ± 1mm/mnt	standar:	BS EN IS) 8442: -5: 2
Kesalahan kecepatan tumbukan:	≤ ± 5%	Drive gerakan:	sekrup bola dan motor servo
Jaminan:	1 tahun	Menggunakan:	Wadah kemasan
Ukuran titik:	8x20mm	Konfigurasi Opsional:	Printer, Pompa Udara
Akurasi Angkatan:	≤±1	Berhenti:	Hentikan Tes
Daya kuda:	1/2 HP	Muat resolusi:	1/100.000
Uji rentang kelembaban:	0 ～ 50%	Standar Uji:	ISO 534, ISO 3034
Menyoroti:	ASTM Dart Impact Tester , Paper Packaging Dart Impact Tester , Dart Impact Tester

5085-HD DART IMPACT TESTER EQUIPMENT DETAILS

Key Functions

Compression testing
Paper tube compressive strength testing
Burst strength testing
Tensile testing
Comprehensive paper testing instrument

Technical Specifications

Display Type	LCD, Digital display
Units Switch	Kgf, N. (Optional), Lbf
Testing Speed	10 ~ 200 mm/min
Dimensions	360264400mm, 703460cm, 856580cm
Measuring Range	250-5600 Kpa, 10 ~ 1000mN
Design Standards	ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87

Applications

The Fall Dart Impact Testing Machine evaluates impact resistance of plastic films and slices, compliant with ASTM D1709 standards.

General Specifications

Packaging Dimensions	10206002250mm (L×W×H)
Gross Weight	130kg
Power Supply	Single-phase, 220V±10%, 50/60Hz (customizable)

Standard Features

Testing Sample Mass	Method A: 50-2000g; Method B: 300-2000g
Testing Accuracy	0.1g (0.1J)
Testing Methods	Method A & Method B (Option)
Specimen Size	>150mm×150mm
Impacting Head Diameter	Method A: Ф38.1±0.1mm, Method B: Ф50.8±0.1mm
Dart Shaft Diameter	Ф6.5±0.1mm
Specimen Fixture Inner Diameter	125±2 mm
Impacting Height	Method A: 0-660mm, Method B: 0-1520mm
Weights	Method A: 5g2, 15g8, 30g8, 60g8, 500g2 Method B: 15g2, 45g8, 90g8, 300g*2
Power	Single-phase 220V, 60Hz
Estimated Weight	100kg
Specimen Fixture	Pneumatic

About Haida

Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
