5093-HD Film Coefficient Friction Tester for Paper Packaging Testing

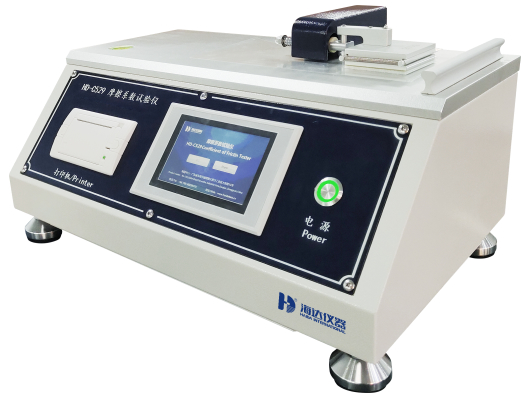

Gambar besar : 5093-HD Film Coefficient Friction Tester for Paper Packaging Testing

Detail produk:

Tempat asal:	CINA
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5093-hd

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5093-HD Film Coefficient Friction Tester for Paper Packaging Testing

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Unit beralih:	KGF, n. (Opsional), lbf
Mode tampilan:	Tampilan LCD, Mode Digital	Mode getaran:	Bergerak maju mundur
Drive gerakan:	sekrup bola dan motor servo	Rentang amplitudo:	25,4 mm pp (1 inci)
Dukungan khusus:	OEM ODM	Penggunaan:	Instrumen pengujian kertas
Rentang tes:	0-2000 kPa	Fitur:	Presisi tinggi, operasi mudah, kinerja yang andal
Kapasitas:	2000kg	Rentang frekuensi:	60-300 Round/Min Disesuaikan
Pengontrol:	PLC (Programmable Logic Controller)	Tes jatuh:	Sudut, tepi, permukaan sampel
Tinggi Silinder:	50 mm	rentang pengukuran:	0. 1 μ G-200MGH2O (2ppm ~ 100%)
Menggunakan:	mesin uji kekakuan kertas karton	Catu daya:	AC 220V 50HZ
Fungsi:	Tahan puncak	Metode tampilan:	Tampilan Digital
Tampilan waktu:	Untuk menampilkan waktu selama pengujian
Menyoroti:	Friction Tester for Paper Packaging Testing , Film Coefficient Friction Tester , Film Coefficient Friction Tester

EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER

Product Attributes

Attribute	Value
Function	compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument
Name	paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Display mode	LCD display, digital mode
Vibration Mode	reciprocating
Movement Drive	ball screw and servo motor
Amplitude Range	25.4 mm P-P(1 inch)
Customized Support	OEM ODM
Usage	Paper Testing Instrument
Test Range	0-2000 kPa
Features	High precision, easy operation, reliable performance
Capacity	2000KG
Frequency Range	60-300 round/min adjustable
Controller	PLC (programmable logic controller)
Drop Test	Corners, edges, faces of sample
Cylinder Height	50 mm
Measuring Range	0.1 μg-200mgH2O (2ppm~100%)
Use	paperboard stiffness test machine
Power Supply	AC 220V 50Hz
Function	Peak hold
Display Method	digital display
Time Display	To display time during test (s)

Product Description

This tester complies with GB 10006-88 and ISO 8295-1986 standards. It measures dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness <0.2mm) when sliding on themselves or other materials. Also suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The friction coefficient measurement indicates product smoothness.

Testing Standards

GB 10006-88, ISO 8295-1986

Features

Hardware Features

Stepper motor components ensure superior position accuracy and motion repeatability
Dual guide rails and dual linear bearings provide accurate positioning, smooth movement, quiet operation, and easy maintenance
Paint-sprayed exterior offers high rust resistance and attractive appearance

Software Features

Touch screen control for easy operation and improved test efficiency
Built-in direct thermal line printer for immediate test result printing
Travel limit protection and fault alarm prompts ensure safe operation

Operation Principle

The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force value test module for uniform linear motion. Samples are secured under the handle on the weight module. During testing, the force value test module moves uniformly, calculating the friction coefficient, with results printed by the built-in printer.

Standard Features

Specifications	5093-HD
Control mode	touch screen control
Test stroke	1-200mm
Test speed	100±10mm/min (speed adjustable)
Slider weight	200±2g (others can be customized)
Upper sample size	63mm63mm (LW)
Lower sample size	80mm200mm (LW)
Force test accuracy	±0.02N
Measuring range	0.001-5N (expandable)
Instrument dimensions	Approx. 490320210mm (LWH)
Usage environment	indoor temperature 20±10℃, relative humidity <85%
Power supply	1∮ AC220V
Machine weight	Approx. 18kg
Power	Approx. 350W
Main test items	Determination of sliding static friction coefficient and dynamic friction coefficient of materials such as plastic film and paper

About Haida: Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. Suitable for research institutions, quality inspection agencies, and academic fields. Complies with UL, ASTM, JIS, GB, and ISO standards.
