Infrared Water Vapor Permeability Tester for Packaging Materials

Infrared Water Vapor Permeability Tester for Packaging Materials
Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials

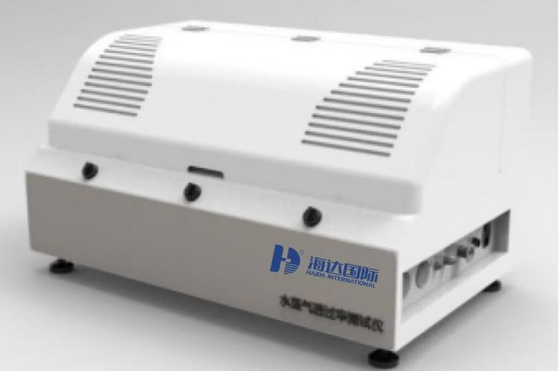

Gambar besar :  Infrared Water Vapor Permeability Tester for Packaging Materials

Detail produk:
Tempat asal: CINA
Nama merek: Haida
Sertifikasi: CE、ISO
Nomor model: 5098-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan

Infrared Water Vapor Permeability Tester for Packaging Materials

Deskripsi
Fungsi: Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker Nama: Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan: LCD, Tampilan Digital Unit beralih: KGF, n. (Opsional), lbf
Mode tampilan: Tampilan LCD, Mode Digital Mode getaran: Bergerak maju mundur
Drive gerakan: sekrup bola dan motor servo Dukungan khusus: OEM ODM
Penggunaan: Instrumen pengujian kertas Fitur: Presisi tinggi, operasi mudah, kinerja yang andal
Pengontrol: PLC (Programmable Logic Controller) Tes jatuh: Sudut, tepi, permukaan sampel
Metode tampilan: Tampilan Digital Tampilan waktu: Untuk menampilkan waktu selama pengujian
Area AS: peralatan masak Kriteria Desain: EN71 ANSI, UL, ASTM ISTA
Sistem Kontrol: Kontrol Terprogram PLC Asal: CINA
Metode tes: Elektronik, mekanik, manual Berat: Dapat disesuaikan
Modus transmisi: Perangkat pneumatik + reducer + rilis Mode Pindai: garis tunggal
Menggunakan: Bahan kemasan
Menyoroti:

Infrared Permeability Tester

,

Packaging Materials Vapor Permeability Tester

,

Packaging Materials Permeability Tester

EQUIPMENT DETAILS 5098-HD WATER VAPOR PERMEABILITY TESTER (INFRARED METHOD)
Product Specifications
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Control System PLC Programmed Control
Test Methods Electronic, mechanical, manual
Design Criteria EN71 ANSI, UL, ASTM ISTA
Features High precision, easy operation, reliable performance
Product Description
This infrared moisture analysis-based tester provides wide-range, high-efficiency water vapor transmission rate testing for medium and high water vapor barrier materials. It is suitable for testing plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, and various packaging materials across industries including food, medicine, medical equipment, daily chemicals, and photovoltaic electronics.
Test Standards
GBT 26253, ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, ISO 15106-3, DIN 53122-2, YBB 00092003
Key Features
  • Laser pulse modulated infrared sensor with long optical path absorption for higher measurement accuracy
  • Three independent test chambers for simultaneous testing of identical or different samples
  • Computer-controlled fully automated test process with one-button operation
  • High-quality components ensure instrument stability and reliability
  • Automatic test execution with parameter settings and result saving
  • Real-time test status monitoring with intelligent software for data analysis
  • Self-detection capabilities and power-off data storage protection
  • Precise automated temperature and humidity control for various test conditions
  • Multiple test process judgment modes (manual, proportional, cyclic)
  • Expandable test range for large transmittance testing requirements
Technical Specifications
Measuring range (membrane) 0.01~40 g/(m²*day) (standard)
0.1~1000 g/(m²*day) (optional)
Resolution 0.001 g/(m²*day)
Number of samples 1~3 pieces
Sample size φ110mm
Temperature control range 5℃~65℃ (constant temperature water bath)
Temperature control accuracy ±0.1℃
Humidity control range 0% RH, 5%~90%RH, 100%RH
Humidity control accuracy ±1%RH
Industry Applications
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They comply with UL, ASTM, JIS, GB, and ISO standards.

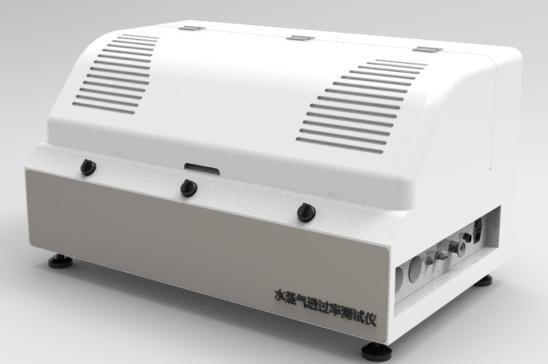

Infrared Water Vapor Permeability Tester for Packaging Materials 0

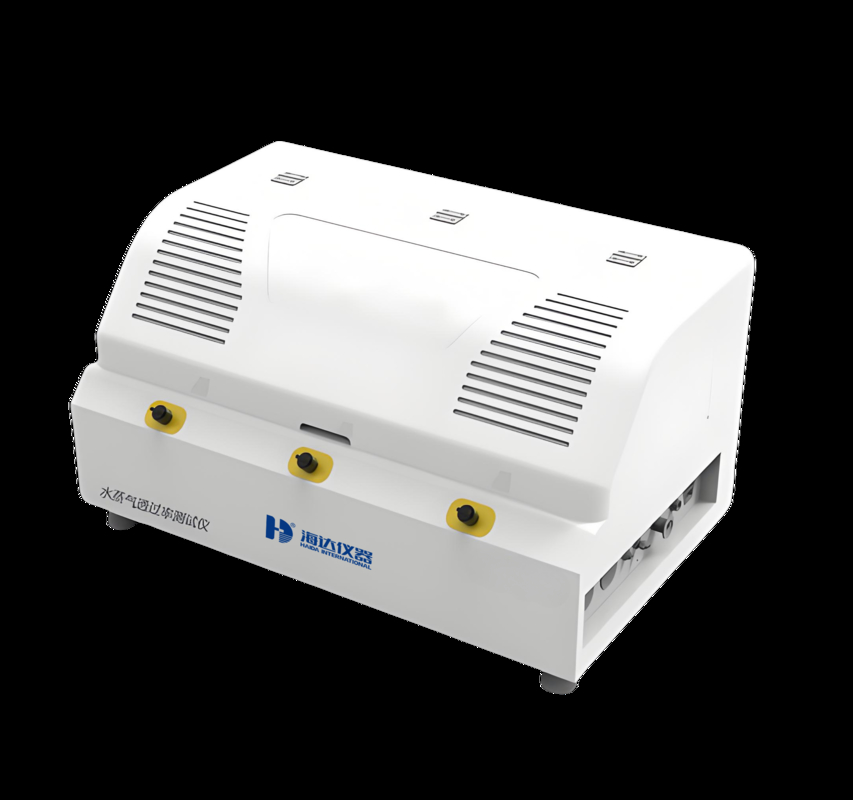

Infrared Water Vapor Permeability Tester for Packaging Materials 1

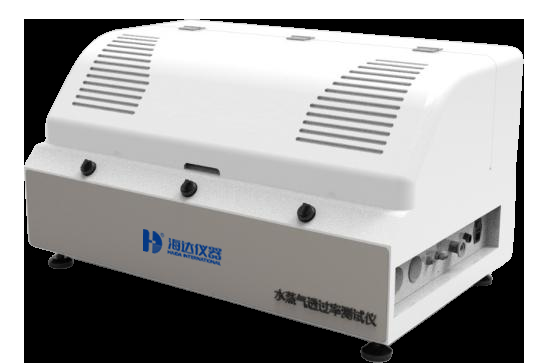

Infrared Water Vapor Permeability Tester for Packaging Materials 2
