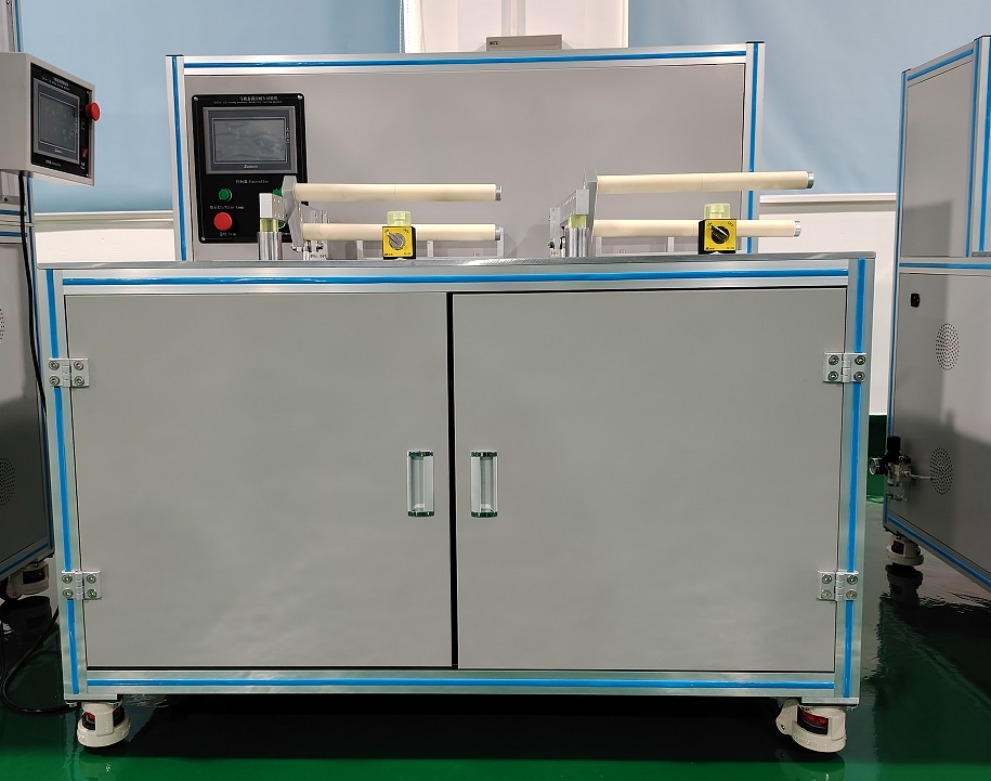

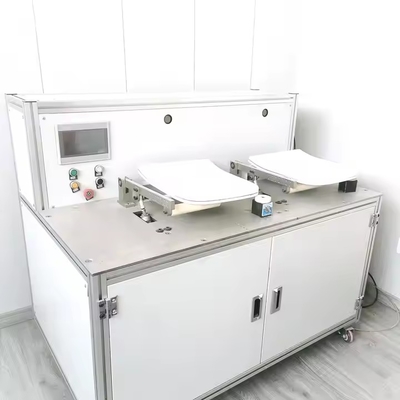

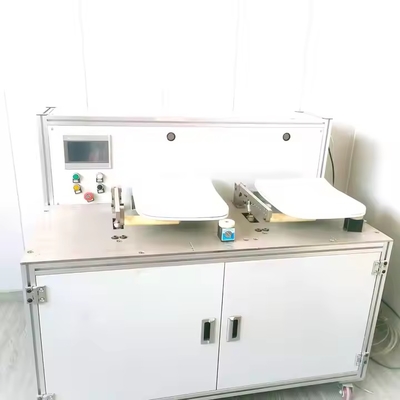

5066-HD Anti-Siphon Test Machine for Cookware Valves

5066-HD Anti-Siphon Test Machine for Cookware Valves
5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves

Gambar besar :  5066-HD Anti-Siphon Test Machine for Cookware Valves

Detail produk:
Tempat asal: CINA
Nama merek: Haida
Sertifikasi: ISO
Nomor model: 5066-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram, dalam bentuk tunai, escrow
Menyediakan kemampuan: 30 set per bulan

5066-HD Anti-Siphon Test Machine for Cookware Valves

Deskripsi
Menjaga suhu air: 60 ± 2 ℃ Tubuh tangki matiral: 2~5 siklus per menit
Ukuran mesin: 1350mm * 1050mm * 2550mm Berat Kotor: 210kg
Sumber panas: Pemanas keramik Layar sentuh: LCD
Menyoroti:

Cookware Valves Anti-Siphon Test Machine

,

Anti-Siphon Test Machine

5066-HD Anti-Siphon Performance Test Machine
Product Specifications
Attribute Value
Water temperature maintain 60±2℃
Tank body material 2~5 cycles per minute
Machine Size 1350mm*1050mm*2550mm
Gross Weight 210KG
Heat source Ceramic heater
Touch screen LCD
Applications & Test Purpose

This equipment is dedicated to testing the anti-siphon performance of water inlet valves. It features a transparent container between the sample and vacuum machine to collect water flow during failed siphon tests, protecting the vacuum machine from damage. The vacuum system simulates vacuum states in water supply pipelines to detect siphon phenomena in water inlet valves.

Compliance Standard

ASME A112.18.1-2018 CSA B125.1-18(C) 5.9

Standard Features
Feature Specification
Number of Workstations Single workstation
Test Pressure 0 ~0.1 PA (adjustable), 0.5% full scale accuracy
Pressure Adjustment Manual control
Observation Tube ID 13 mm
Immersion Depth 13 mm
Vacuum Generation Vacuum pump
Test Fixtures Customized per specification (≥2 pcs each)
Timer Range 0-99.99 (Hours, Minutes, seconds)
Dimensions 1000x1000x1600 mm
Power supply AC220V 50HZ
Weight Approx. 120 kg
About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida specializes in production and R&D of various material physical properties testing equipment. We have our own independent R&D center and four testing equipment production lines: textile, footwear, leather, and mask. Our testing equipment entered the international market in 2006.

5066-HD Anti-Siphon Test Machine for Cookware Valves 0
5066-HD Anti-Siphon Test Machine for Cookware Valves 1
5066-HD Anti-Siphon Test Machine for Cookware Valves 2
5066-HD Anti-Siphon Test Machine for Cookware Valves 3
5066-HD Anti-Siphon Test Machine for Cookware Valves 4
5066-HD Anti-Siphon Test Machine for Cookware Valves 5
Why Choose Haida?
  • Design & Production: Solution consultation for each order, recommending the most cost-performance machine, with R&D for special-designed models.
  • Shipping & Delivery: One-stop service from production to delivery, including installation, training, and technical support.
  • Warranty: 1 year warranty with lifetime technology support.
  • After-Sale Service: Quick response within 2 hours, with video inspection and on-site service options.
Frequently Asked Questions
Q: How about your warranty?
A: We offer a one-year warranty with technical support and parts replacement. Our engineers may provide on-site service if necessary.
Q: What is the order process?
A: Process includes inquiry, quotation, requirements confirmation, payment, production, testing, packing, documentation, delivery, and after-sales service.
Q: Can we visit your factory before order?
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Q: Do you accept customization service?
A: Yes, we offer both standard and customized machines tailored to your specific requirements.
