ASME Life Cycle Test Machine for Cookware Durability Testing

ASME Life Cycle Test Machine for Cookware Durability Testing
ASME Life Cycle Test Machine for Cookware Durability Testing

Gambar besar :  ASME Life Cycle Test Machine for Cookware Durability Testing

Detail produk:
Place of Origin: China
Nama merek: Haida
Sertifikasi: ISO
Model Number: 5070-HD
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Dapat dinegosiasikan
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month
Kontak

ASME Life Cycle Test Machine for Cookware Durability Testing

Deskripsi
heat source: Ceramic heater touch screen: LCD
Display: LCD screen Testing Time: Adjustable
Test Parameters: Temperature, pressure, weight, etc. Test Results: Quantitative and qualitative data
Test Methods: Impact, abrasion, chemical resistance, etc. Usage: Testing cookware for durability and safety
Steel Impact Hammer: Having a mass of 1KG ±50g Customized: Welcome
Test Cyclic: 15000 cyclic (adjustable) Factory: Yes
Application: Laboratory, Kitchen Transportation: By Sea
Menyoroti:

Cookware Durability Testing Machine

,

Life Cycle Cookware Durability Testing Machine

5070-HD ASME Life Cycle Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Touch Screen LCD
Display LCD screen
Testing Time Adjustable
Test Parameters Temperature, pressure, weight, etc.
Test Results Quantitative and qualitative data
Test Methods Impact, abrasion, chemical resistance, etc.
Usage Testing cookware for durability and safety
Steel Impact Hammer 1KG ±50g mass
Customization Available
Test Cycles 15000 cycles (adjustable)
Manufacturing Factory production
Application Laboratory, Kitchen
Transportation By Sea
Applications & Test Purpose

This machine evaluates the lifespan of pull-out tubes, showerhead buttons, and water outlet swing to assess product quality.

Test Standards

ASME A112.18.1-2005; CSA B125.1-05; GB18145; EN817

Standard Features
  • Test samples: 4 sets (1 pull-up water divider, 1 button set, 2 swing sets)
  • Lifting function parameters:
    • Water divider function: 0-20mm adjustable
    • Speed range: 0-20 cycles/min adjustable
    • Action sequence: Cylinder clamps/pulls → releases → returns (1 cycle)
  • Button function parameters:
    • Normal water supply function
    • Pressing speed: 5-30 times per minute
  • Swing function parameters:
    • 2 workstations for left/right swing
    • Angle: Adjustable ±90°
    • Speed: 5-30 cycles per minute
  • Frequency setting: 1 to 99,999,999 cycles
  • Control: PLC system
  • Operation: 7" color touch screen
  • Power: 380V 50HZ
  • Air source: 6kg
  • Material: SUS304 stainless steel
  • Water supply: American standard, dynamic pressure 0.3-0.4Mpa

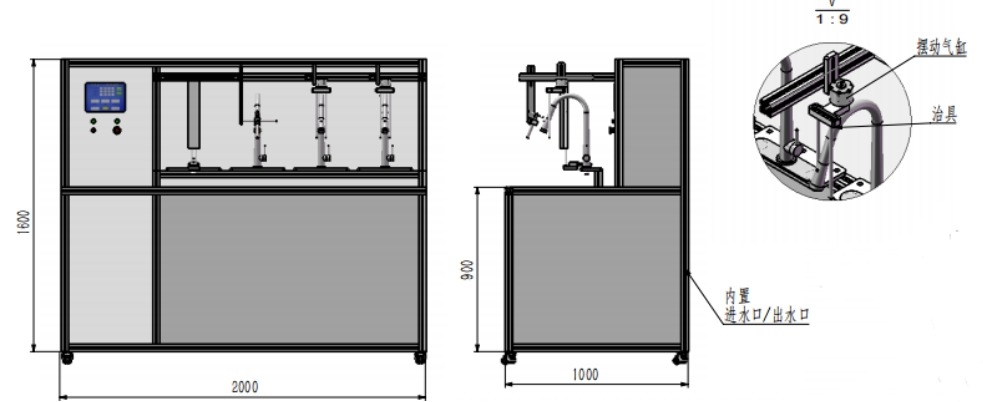

Workstation Details
  • Workstation 1: Water introduction → cylinder lowering → head grasping/lifting → release → water circuit disconnection (1 cycle)
  • Workstation 2: Shower head switching life test with 360° adjustable cylinders
  • Workstations 3 & 4: Torque sensor for rotation with adjustable force, angle, and height
Product Images
ASME Life Cycle Test Machine for Cookware Durability Testing 0
ASME Life Cycle Test Machine for Cookware Durability Testing 1
ASME Life Cycle Test Machine for Cookware Durability Testing 2
ASME Life Cycle Test Machine for Cookware Durability Testing 3
Customer Testimonials
ASME Life Cycle Test Machine for Cookware Durability Testing 4
ASME Life Cycle Test Machine for Cookware Durability Testing 5
Why Choose Haida International Equipment?
  • Design & Production: Custom solution consultation, cost-performance optimization, and special model development
  • Shipping & Delivery: Complete one-stop service from production to installation
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: 2-hour response time with video inspection and on-site support
About Haida International Equipment

Established in 2004 and located in Dongguan, China, we specialize in R&D and production of material testing equipment with four dedicated production lines for textile, footwear, leather, and mask testing equipment. Our products have served international markets since 2006.

Frequently Asked Questions
What is your warranty policy?

We offer a 1-year warranty including technical support and parts replacement. On-site engineer service is available when necessary.

What is your order process?

Inquiry → Quotation → Requirements confirmation → Order → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.

Can we visit your factory?

Yes, we welcome factory visits and can assist with hotel arrangements and airport transfers.

Do you offer customization?

Yes, we provide both standard and customized machines tailored to your specific requirements.
