Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

Gambar besar : Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

Detail produk:

Place of Origin:	Guangdong, China (Mainland)
Nama merek:	Haida
Sertifikasi:	ISO,CE
Model Number:	60094-HD

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Set
Harga:	Dapat dinegosiasikan
Packaging Details:	Export wooden case
Delivery Time:	15 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	30 Sets per Month Haida

Kontak

Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

Deskripsi

Display Device:	PC	Display Device:	PC
All Weight:	2800kg	All Weight:	2800kg
Available Tensile Stroke:	900mm	Unit Switchover:	G, KG, N, LB
Weight:	500 kg	Test Speed:	0.1~300mm/min
Usage:	Tension Material Tension Strength Tester	Resolution:	1/100,000
Test Space Height:	500 mm	Crosshead Travel:	1000 mm
Force Reading:	kgf, Ibf, N, KN, T etc	Load Capacity:	5-200kg
Crosshead Speed Accuracy:	±0.2%	Grip:	Tensile grip, Tear force grip
Dimensions:	1200 mm x 800 mm x 1800 mm	Safety Features:	Emergency Stop Button, Overload Protection
Deformation Measuring:	YYU–10/50	Power:	1∮, AC220V, 50HZ
Gross Weight:	1400kg	Screw:	High Precise Ball Screw
Test Area Material:	SUS304 stainless steel	Use:	universal tensile testing machine 10kn
Operation Control:	Hydraulic	Load Cell Resolution:	1/250,000
Horizontal Test Space:	≤400mm	Certifications:	ISO, CE
Transducer:	load cell
Menyoroti:	10kN Hydraulic Ceramic Bending Tester , Precise Ceramic Bending Tester , Ceramic Bending Tester

60094-HD MOR Machine/Ceramic Bending Tester

Key Features

Hydraulic operation control with emergency stop button and overload protection
High precision ball screw mechanism for accurate testing
SUS304 stainless steel test area material for durability
PC display device with load cell resolution of 1/250,000
Meets GB/T3810.4-2016 and ISO10545-4:2014 ceramic tile testing standards
Multiple grip options including tensile grip and tear force grip

Technical Specifications

Attribute	Value
Unit Switchover	G, KG, N, LB
Safety Features	Emergency Stop Button, Overload Protection
Grip Options	Tensile grip, Tear force grip
Deformation Measuring	YYU–10/50
Display Device	PC
Power	1∮, AC220V, 50HZ
Gross Weight	1400kg
Screw Type	High Precise Ball Screw
Test Area Material	SUS304 stainless steel
Certifications	ISO, CE

Performance Details

Max Loading Capacity: 10000N

Loading Speed: 5~700N/S (adjustable)

Measurement Accuracy: 0.5%

Horizontal Test Space: ≤400mm

Power Consumption: 0.2KW

Tile Size Compatibility

Standard: 100×100mm to 1000×1000mm (three specifications available)
Customizable up to 1200×1200mm upon request

Applications

This universal tensile testing machine is designed for MOR testing of ceramic pipes, glaze tiles, sanitary ware, electric ceramics, and fire-resistance materials. With fixture replacement, it can also perform burst resistance testing and measure flexural/compressive strength of various ceramic products.

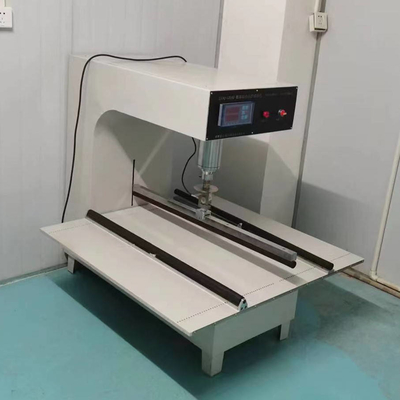

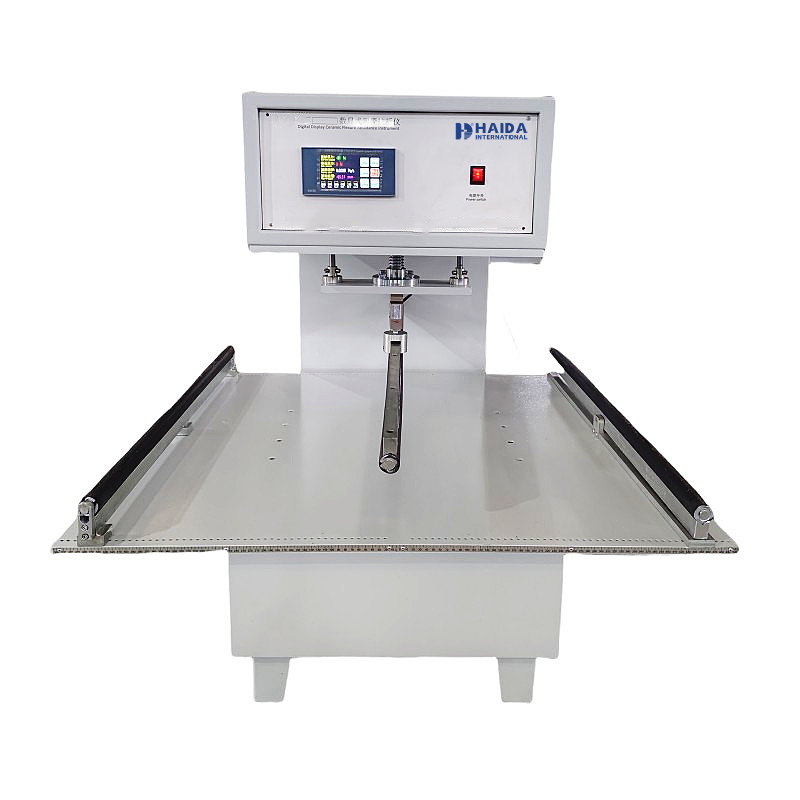

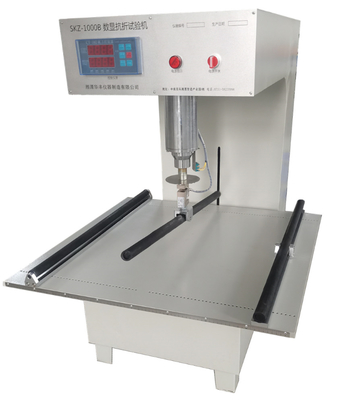

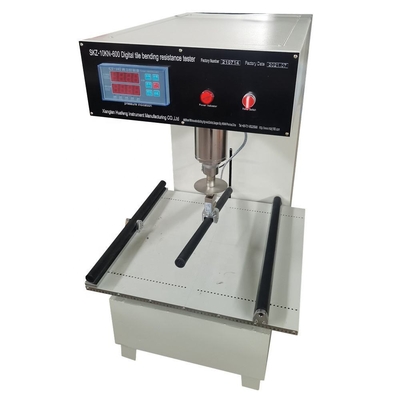

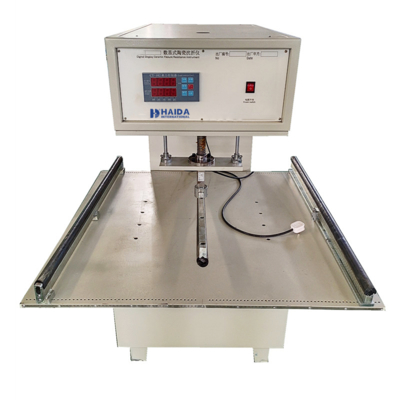

Ceramic Tester Detail View

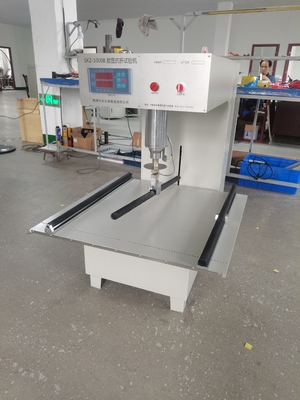

Ceramic Tester Operation View

Control System Features

Touch screen microcomputer control with intuitive interface
Real-time display of instantaneous pressure and peak pressure
Digital loading speed display and adjustment
Automatic calculation of destructive strength and fracture modulus
Sample size input and parameter setting interface
Built-in calibration functions
