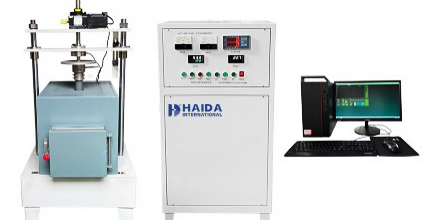

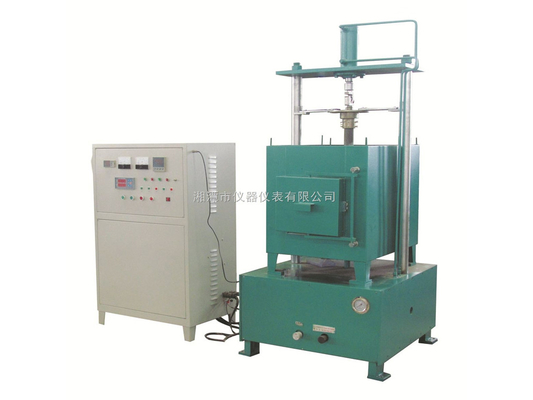

60095-HD Digital High Temperature MOR Machine for Refractory Testing

The 60095-HD Digital High Temperature MOR Machine is designed for testing high temperature flexural strength of various materials including refractory products, carbon-containing refractory materials, dense refractory castables, ceramic rollers, and other ceramics. Compliant with multiple industry standards including GB3002-2017, GB/T13243-1991, YB/T 5201-93, JB/T 2980.2-1999, and HB/T 5352.1-2004.

• Computer-connected for automatic testing and data processing
• Simple structure with stable force application and easy maintenance
• Maximum temperature options: 1400℃ or 1600℃
• Maximum load options: 1000N, 10000N, or 20000N
• Temperature control accuracy: ±1℃
• Automatic sample feeding mechanism for continuous testing
• Can test 4-6 samples simultaneously
• Voltage: 380V with power options of 8KW or 12KW
• Heating elements: silicon carbon rod (1400℃) or silicon molybdenum rod (1600℃)
• Generates test reports with print output capability

• GB3002-2017 shaped refractory material: 150/25/25mm × 6 pieces
• GB3002-2017 unshaped refractory material: 160/40/40mm × 4 pieces
• Lower blade spacing: 125±2mm
• HB/T 5352.1-2004 investment casting shell: 40/20/6mm × 6 pieces
• Lower blade spacing: 30mm
