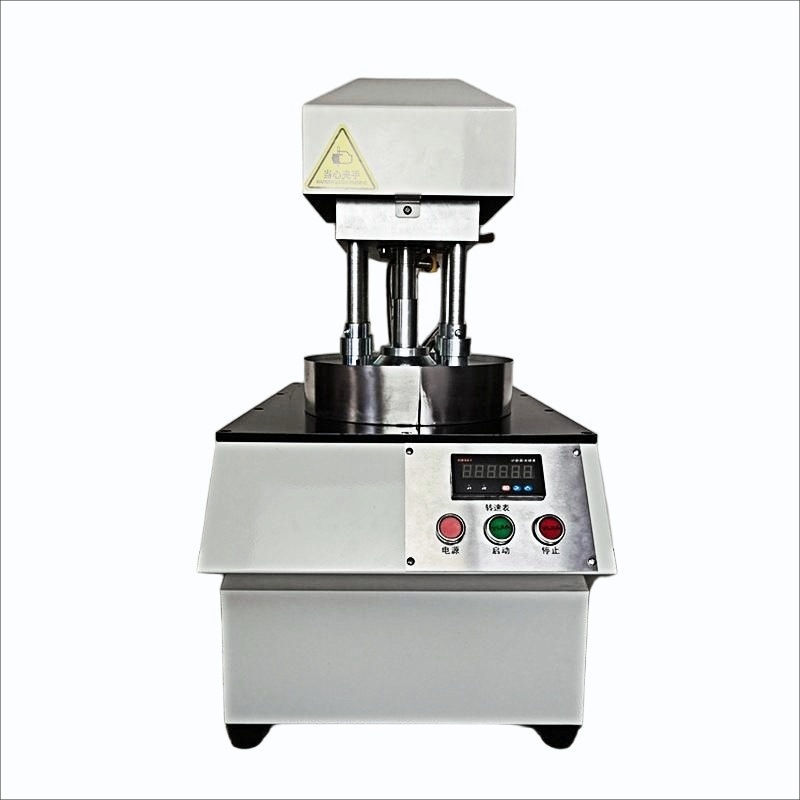

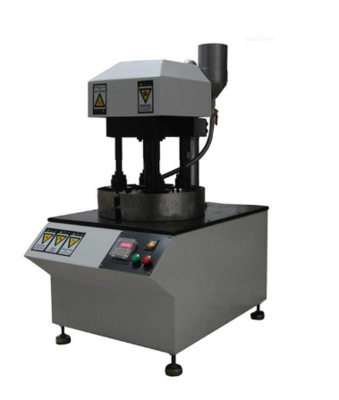

60110-HD Stone Wear Tester for Building Materials

60110-HD Stone Wear Tester for Building Materials
60110-HD Stone Wear Tester for Building Materials
60110-HD Stone Wear Tester for Building Materials 60110-HD Stone Wear Tester for Building Materials 60110-HD Stone Wear Tester for Building Materials

Gambar besar :  60110-HD Stone Wear Tester for Building Materials

Detail produk:
Place of Origin: Guangdong, China (Mainland)
Nama merek: Haida
Sertifikasi: ISO,CE
Model Number: 60110-HD
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 Set
Harga: Dapat dinegosiasikan
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida
Kontak

60110-HD Stone Wear Tester for Building Materials

Deskripsi
Control Mode: Computer Control Control System: Controller with LED
Grip: Tensile grip, Tear force grip Printing: Built-in Printer
Screw: High Precise Ball Screw Use: utm tensile testing machine
Additional Features: Automatic Data Recording, Real-time Graph Display Transducer: load cell
Force Reading: kgf, Ibf, N, KN, T etc Operation Control: Hydraulic
Usage: Tension Material Tension Strength Tester Software: Tensile Testing Software
Clamping Mode: Hydraulically Stoke: 1100mm including fixture
Sensor: Celtron load cell Safety Features: Emergency Stop Button, Overload Protection
Display: LCD Touch Screen Unit Switchover: G, KG, N, LB
Resolution: 1/100,000 Test Speed Range: 0.001-500 mm/min
Speed: 0.1-500mm/min, adjustable Elongation Accuracy: 0.001mm
Power Supply: 220V, 50Hz Speed Accuracy: ± 0.2%
Circuit Board: HD-002-A Motor: Panasonic Servo Motor
Load Cell Brand: Germany brand load cell Test Space Accuracy: ± 0.1 mm
Load Cell: China brand load cell, 50 kg (500N)
Menyoroti:

stone wear tester for building materials

,

HD stone abrasion tester

,

building materials wear testing machine

60110-HD Stone Wear Tester
Product Attributes
Attribute Value
Control Mode Computer Control
Control System Controller with LED
Grip Tensile grip, Tear force grip
Printing Built-in Printer
Screw High Precise Ball Screw
Use utm tensile testing machine
Additional Features Automatic Data Recording, Real-time Graph Display
Transducer load cell
Force Reading kgf, Ibf, N, KN, T etc
Operation Control Hydraulic
Usage Tension Material Tension Strength Tester
Software Tensile Testing Software
Clamping Mode Hydraulically
Stoke 1100mm including fixture
Sensor Celtron load cell
Safety Features Emergency Stop Button, Overload Protection
Display LCD Touch Screen
Unit Switchover G, KG, N, LB
Resolution 1/100,000
Test Speed Range 0.001-500 mm/min
Speed 0.1-500mm/min, adjustable
Elongation Accuracy 0.001mm
Power Supply 220V, 50Hz
Speed Accuracy ± 0.2%
Circuit Board HD-002-A
Motor Panasonic Servo Motor
Load Cell Brand Germany brand load cell
Test Space Accuracy ± 0.1 mm
Load Cell China brand load cell, 50 kg (500N)
Product Description
The 60110-HD Stone Wear Tester is designed for wear resistance testing of various building materials including natural granite, marble, limestone, sandstone, slate, artificial stone, and microcrystalline glass. It complies with national standards GB/T19766-2005, GB/T19966.4-2001, and American standard ASTMC241-90.
60110-HD Stone Wear Tester for Building Materials 0
Main Technical Parameters
  • Grinding disc size: ￠254*15mm
  • Distance between the center of four specimens and the center of the disc: 90mm
  • Load of specimen: 2000±50g, 1250±50g
  • Grinding disc speed and specimen rotation speed: 45±1rpm
  • Grinding disc working hardness:＞HB500
  • Abrasive flow: continuously adjustable
  • Applicable specimen specifications: square specimen: 50*50±0.5mm, thickness: 15-55mm; round specimen: ￠25±0.5mm; height: 25-60mm
  • Number of specimens: 4
  • Speed control range: 0-9999rpm
60110-HD Stone Wear Tester for Building Materials 1
