5053-HD Paper Printing Surface Strength Tester with LCD Display

5053-HD Paper Printing Surface Strength Tester with LCD Display
5053-HD Paper Printing Surface Strength Tester with LCD Display

Gambar besar :  5053-HD Paper Printing Surface Strength Tester with LCD Display

Detail produk:
Tempat asal: Cina
Nama merek: Haida
Sertifikasi: CE、ISO
Nomor model: 5053-hd
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan
Kontak

5053-HD Paper Printing Surface Strength Tester with LCD Display

Deskripsi
Fungsi: Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker Nama: Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan: LCD, Tampilan Digital Unit beralih: KGF, n. (Opsional), lbf
Mode tampilan: Tampilan LCD, Mode Digital Mode getaran: Bergerak maju mundur
Drive gerakan: sekrup bola dan motor servo Dukungan khusus: OEM ODM
Penggunaan: Instrumen pengujian kertas Fitur: Presisi tinggi, operasi mudah, kinerja yang andal
Pengontrol: PLC (pengontrol logika yang dapat diprogram) Tes jatuh: Sudut, tepi, permukaan sampel
Metode tampilan: Tampilan Digital Tampilan waktu: Untuk menampilkan waktu selama pengujian
Area AS: peralatan masak Kriteria Desain: EN71 ANSI, UL, ASTM ISTA
Sistem Kontrol: Kontrol Terprogram PLC Asal: Cina
Metode pengujian: Elektronik, mekanik, manual Berat: Dapat disesuaikan
Modus transmisi: Perangkat pneumatik + reducer + rilis Mode Pindai: garis tunggal
Menggunakan: Bahan kemasan
Menyoroti:

Paper Printing Surface Strength Tester

,

Pneumatic Paper Printing Surface Strength Tester

5053-HD Printing Surface Strength Tester
Product Overview

A precision testing device designed to measure the surface strength of paper, cardboard, and other printed materials. Evaluates print durability by applying controlled force to measure resistance to cracking or deformation.

Key Features
  • High precision measurements with 0.1s accuracy
  • Multiple test capabilities: compression, tensile, and burst testing
  • Digital LCD display with multiple unit options (Kgf, N, Lbf)
  • Programmable PLC control system for consistent results
  • Reciprocating vibration mode for comprehensive testing
  • Ball screw and servo motor drive system
  • Complies with international standards: EN71, ANSI, UL, ASTM, ISTA
Technical Specifications
Model 5053-HD
Test Area 10±0.05cm²
Measurement Range (0.2~3.5)m/s
Pendulum Elevation Angle 165°
Printing Plate Ø65mm*10mm, Ø65mm*20mm
Pendulum Speed (20～125)cm/s
Printing Pressure 0~700N
Fan Angle 155°
Dimensions 420*260*355mm (L*W*H)
Product Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test
Display LCD, Digital display
Control System PLC Programmed Control
Design Standards GB/T 22365-2008, ISO 3782, ISO 3783, QB/T 1020
Transmission Mode Pneumatic device + reducer + release
Customization OEM/ODM support available

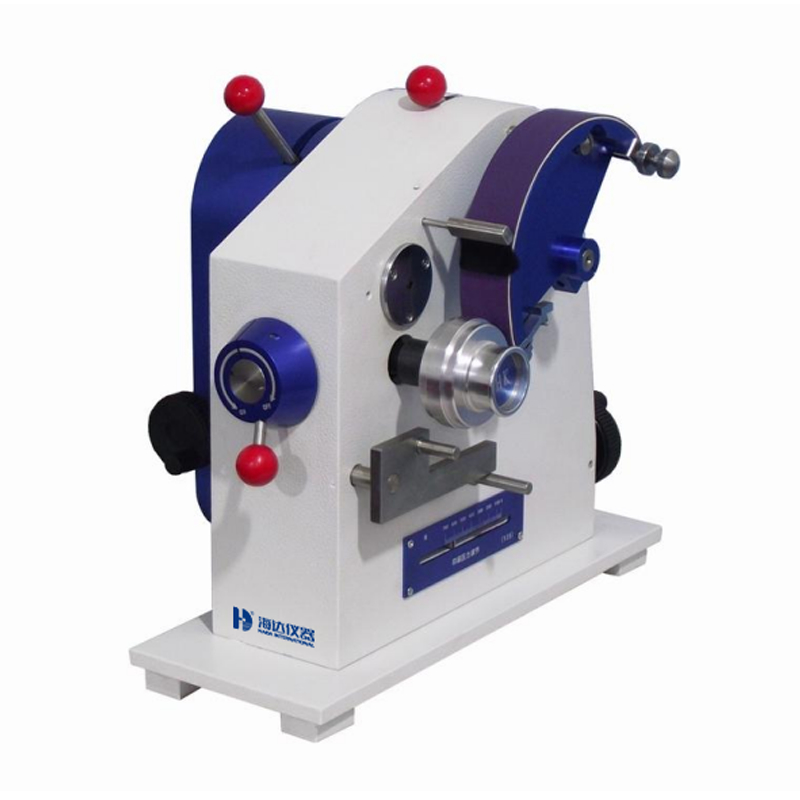

Product Images
5053-HD Paper Printing Surface Strength Tester with LCD Display 0 5053-HD Paper Printing Surface Strength Tester with LCD Display 1 5053-HD Paper Printing Surface Strength Tester with LCD Display 2 5053-HD Paper Printing Surface Strength Tester with LCD Display 3
Applications

This testing instrument is widely used in paper goods, packaging materials, ink printing, adhesive tapes, bags, footwear, leather goods, and quality control laboratories. Suitable for research institutions and quality inspection agencies.

Label:

pengujian mesin kertas,

Paper Printing Surface Strength Tester,

Pneumatic Paper Printing Surface Strength Tester
