5054-HD High Speed Inking Unit for Paper Packaging Testing

Name: 5054-HD High Speed Inking Unit for Paper Packaging Testing
Brand: Hai Da Labtester
SKU: 5054-hd
Price: 7,500.00 USD
Availability: InStock

Semua produk

Lab Test Machines
(68)

Uji lingkungan Chamber
(114)

Mesin Uji Tarik
(224)

Peralatan pengujian peradangan
(45)

Temperatur Kelembaban Kamar
(42)

Accelerated Aging Chamber
(59)

Peralatan Uji IP
(39)

korosi kamar uji
(41)

Pengujian Kemasan ISTA
(34)

Instrumen pengujian kemasan kertas
(96)

peralatan pengujian furnitur
(115)

Penguji perangkat medis
(10)

pengujian peralatan tekstil
(40)

Sistem Meja Shaker Vibration
(23)

Mesin pengujian mekanika
(6)

Mesin Pengukur Optik
(23)

Peralatan uji baterai
(43)

Peralatan pengujian karet plastik
(54)

mesin analisis kimia
(19)

Mesin Tes Rokok Elektronik
(10)

Sertifikasi

Ulasan pelanggan

Ya, kami menerima mesin minggu lalu. Kami sangat sibuk saat ini, dan saya belum bisa mengujinya, tapi sepertinya tidak masalah bagi saya.

—— Peter Maas

Atas nama perusahaan untuk mengunjungi pabrik dan perusahaan Anda, staf teknis sangat profesional dan sabar, saya pikir saya akan senang untuk bekerja sama dengan Anda lagi.

—— Steve Hubbard

I 'm Online Chat Now

5054-HD High Speed Inking Unit for Paper Packaging Testing

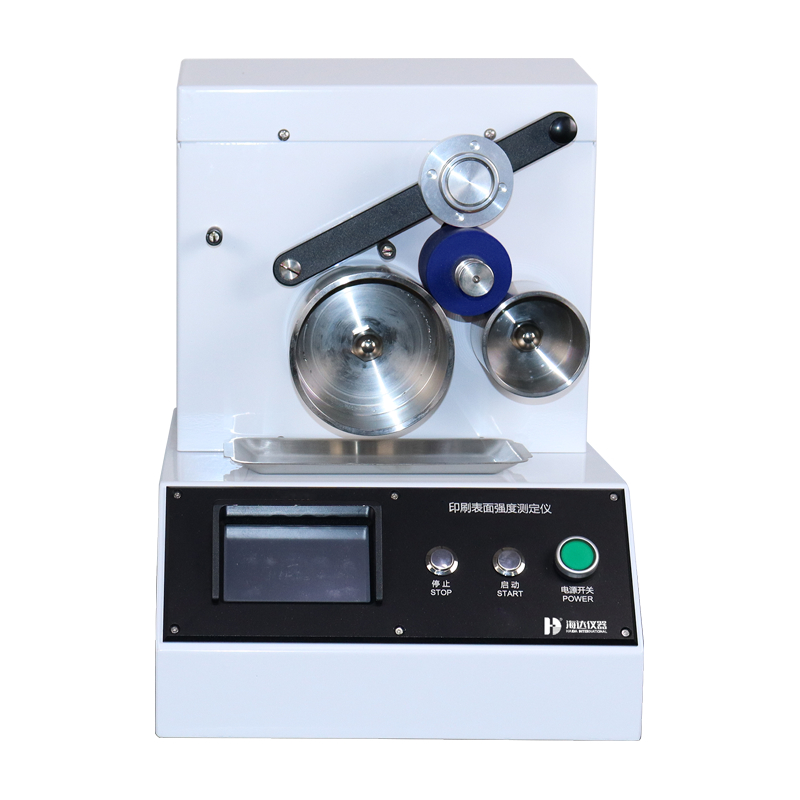

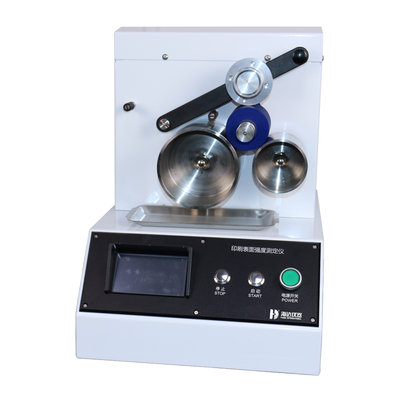

Gambar besar : 5054-HD High Speed Inking Unit for Paper Packaging Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5054-hd

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5054-HD High Speed Inking Unit for Paper Packaging Testing

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Unit beralih:	KGF, n. (Opsional), lbf
Mode tampilan:	Tampilan LCD, Mode Digital	Mode getaran:	Bergerak maju mundur
Drive gerakan:	sekrup bola dan motor servo	Customized Support:	OEM ODM
Penggunaan:	Instrumen pengujian kertas	Fitur:	Presisi tinggi, operasi mudah, kinerja yang andal
Pengontrol:	PLC (pengontrol logika yang dapat diprogram)	Tes jatuh:	Sudut, tepi, permukaan sampel
Metode tampilan:	Tampilan Digital	Tampilan waktu:	Untuk menampilkan waktu selama pengujian
Area AS:	peralatan masak	Design Criteria:	EN71 ANSI,UL,ASTM ISTA
Sistem Kontrol:	Kontrol Terprogram PLC	Asal:	Cina
Metode pengujian:	Elektronik, mekanik, manual	Berat:	Dapat disesuaikan
Modus transmisi:	Perangkat pneumatik + reducer + rilis	Mode Pindai:	garis tunggal
Menggunakan:	Bahan kemasan
Menyoroti:	5054-HD High Speed Inking Unit , Customizable High Speed Inking Unit

EQUIPMENT DETAILS OF 5054-HD HIGH SPEED INKING UNIT

Product Specifications

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Movement Drive	Ball screw and servo motor
Controller	PLC (programmable logic controller)
Control System	PLC Programmed Control
Design Criteria	EN71 ANSI, UL, ASTM ISTA
Test Methods	Electronic, mechanical, manual
Transmission Mode	Pneumatic device + reducer + release
Features	High precision, easy operation, reliable performance

Product Description

The high-speed ink distribution device is designed to quickly apply ink to printing plates while precisely controlling ink layer thickness.

Technical Parameters

Item	Description
Mobile main plate size	Ø118*80mm
Roller size	Ø60*70mm
Auxiliary plate size	Ø75mm*80mm
Ink distribution speed	60, 100, 140 r/min (adjustable)
Dimension	330390430mm (LWH)
Power	AC220V 50HZ 180W

Standard Features

Haida products are widely used across multiple industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
