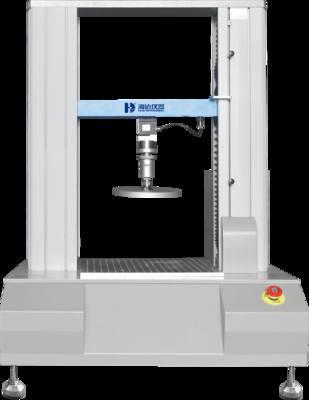

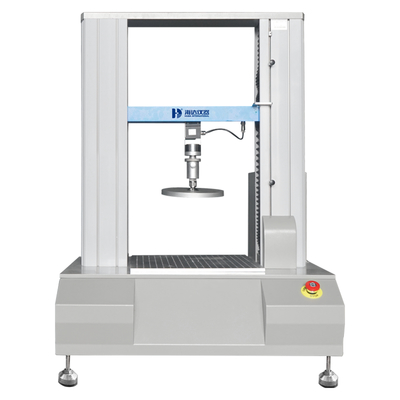

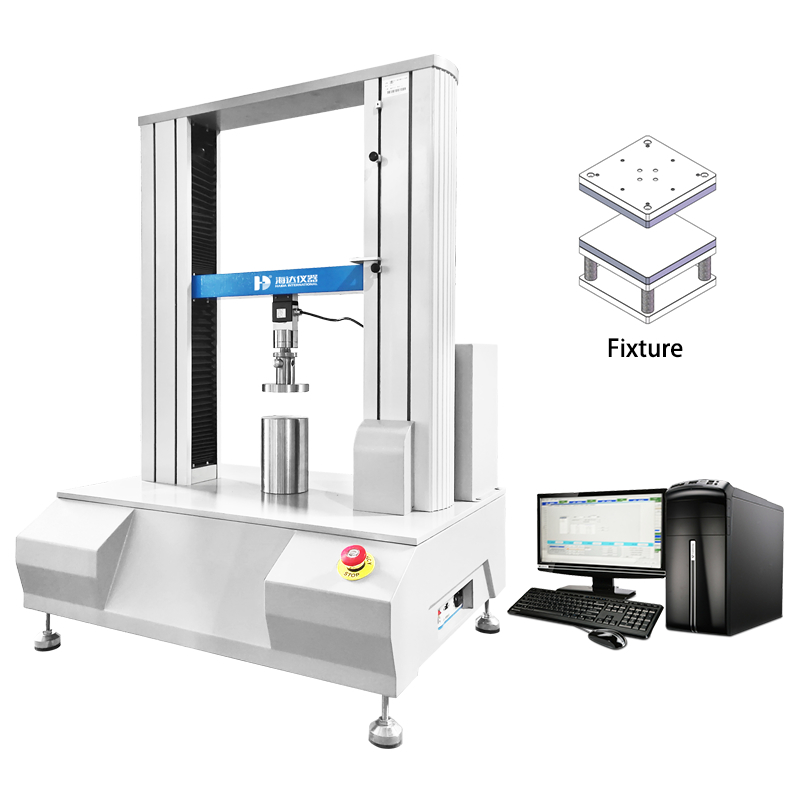

HD-A513-C Paper Bowl Compression Test Machine with Digital Display

HD-A513-C Paper Bowl Compression Test Machine with Digital Display
HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display

Gambar besar :  HD-A513-C Paper Bowl Compression Test Machine with Digital Display

Detail produk:
Tempat asal: Cina
Nama merek: Haida
Sertifikasi: CE、ISO
Nomor model: HD-A513-C
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan

HD-A513-C Paper Bowl Compression Test Machine with Digital Display

Deskripsi
Fungsi: Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker Nama: Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan: LCD, Tampilan Digital Tes jatuh: Sudut, tepi, permukaan sampel
Metode tampilan: Tampilan Digital Produsen: China Guangdong (Daratan)
Laporan keluaran: Printer mini, pencetakan termal Model: kontrol komputer mikro
Mode drive: dengan motor Akurasi pengukuran: 0.20ΔE*AB
Tampilan waktu: Untuk menampilkan waktu selama tes Perangkat lunak: TM 2101
Pencahayaan: D65 Kekuatan: AC 220V,50Hz
Rentang amplitudo: 25,4 mm (1 inci) DIMENSI LUAR: 400 (L) × 210 (W) × 395 (h) mm
Uji rentang kelembaban: 0 ~ 50% Membaca paksa: KGF, IBF, N, KN, T dll
Beban gesekan: 908g (2lb) | 1810g (4 lb) Lingkungan pengujian: Suhu: 23 ± 2 ℃, kelembaban: 20%RH-70%RH
Rentang pengukuran: 0-5 n Ultraviolet Gelombang Panjang: 365
Mode operasi: Komputer
Menyoroti:

HD-A513-C Compression Test Machine

,

Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine
Product Overview

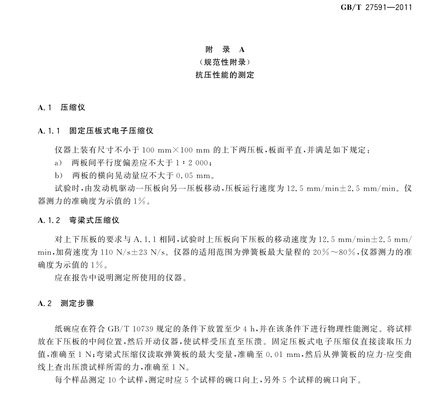

Specialized equipment for testing the compression performance of paper bowls, compliant with GB/T 27591 standards.

HD-A513-C Paper Bowl Compression Test Machine with Digital Display 0
Key Features
  • Double-column ball screw drive ensures high-precision and stable operation
  • Force value accuracy better than 1.0 level for precise test data
  • Embedded USB interface or network port for convenient data transmission
  • Adjustable test speed to accommodate various testing requirements
  • Microcomputer control with TM 2101 software
  • Digital LCD display with multiple unit options (Kgf, Ibf, N, KN, T)
  • Thermal printing for report output
Technical Specifications
Capacity 500kg, imported load cell
Load Resolution 1/250,000
Load Precision Within ± 0.5%
Motor 400W Panasonic servo motor
Test Speed 12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke 600mm (excluding fixture)
Dimensions 790 x 610 x 1100mm (L*W*H)
Weight Approx. 170 kg
Power 1∮, 220V, 500W
General Specifications

Packaging Dimensions: 1240 x 840 x 1320mm (WxDxH)

Power Supply: Single-phase, 220V±10%, 50/60Hz (customizable)

Gross Weight: 180kg

Test Environment: Temperature: 23±2℃, Humidity: 20%RH-70%RH

About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.

HD-A513-C Paper Bowl Compression Test Machine with Digital Display 1 HD-A513-C Paper Bowl Compression Test Machine with Digital Display 2 HD-A513-C Paper Bowl Compression Test Machine with Digital Display 3
