Paper Cup Stiffness Tester HD-P012 for Compression Strength Testing

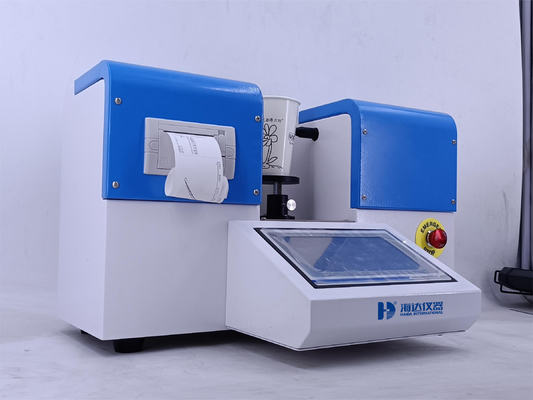

Gambar besar : Paper Cup Stiffness Tester HD-P012 for Compression Strength Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	HD-P012

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

Paper Cup Stiffness Tester HD-P012 for Compression Strength Testing

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Tes jatuh:	Sudut, tepi, permukaan sampel
Metode tampilan:	Tampilan Digital	Produsen:	China Guangdong (Daratan)
Laporan keluaran:	Printer mini, pencetakan termal	Model:	kontrol komputer mikro
Tampilan waktu:	Untuk menampilkan waktu selama tes	Membaca paksa:	KGF, IBF, N, KN, T dll
Prosedur Pengujian:	10 - 15 tes per menit	Penggunaan:	Instrumen pengujian kertas
Fitur:	Mudah dioperasikan	Rentang pengujian:	(1 ～ 30) n, resolusi 0,01n
Parameter pengujian:	Kekuatan meledak, kekuatan kompresi, kekuatan robek, daya tahan lipat, ketahanan tusukan, kekakuan,	Motor:	Domestik 0. Motor servo 4KW
Panjang sayatan:	20 ± 0,2mm	Rentang pengukuran:	0-1000 kPa, 0-5000 N, 0-5000 mn, 0-10 mm, 0-1000 g/m2, 0-100%, 0-100 dtk, 0-1000 ml/min
Kecepatan gesekan:	85	Gunakan Kekuatan:	30 W (Daya Pompa Udara Kecuali)
Satuan Pengukuran:	kPa, n, mn, mm, g/m2, %, sec, ml/mnt	Metode operasi:	kontrol komputer mikro
Metode operasi:	Otomatis
Menyoroti:	Compression Strength Testing Stiffness Tester , Compact Paper Cup Stiffness Tester , Stiffness Tester for Paper Cup

HD-P012 Paper Cup Stiffness Tester

Product Attributes

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument
Display	LCD, Digital display
Drop Test	Corners, edges, faces of sample
Display Method	Digital display
Producer	Guangdong, China (mainland)
Report Output	Mini-printer, thermal printing
Model	Microcomputer Control
Time Display	To display time during test(s)
Force Reading	Kgf, Ibf, N, KN, T etc
Testing Procedure	10-15 tests per min
Usage	Paper Testing Instrument
Feature	Easy to operate
Testing Range	(1～30)N, resolution 0.01N
Testing Parameters	Bursting strength, compression strength, tearing strength, folding endurance, puncture resistance, stiffness, moisture content, thickness, COF, brightness, opacity, porosity, water absorption, air permeability, tearing resistance
Motor	Domestic 0.4KW servo motor
Incision Length	20±0.2mm
Measurement Range	0-1000 kPa, 0-5000 N, 0-5000 mN, 0-10 mm, 0-1000 g/m2, 0-100%, 0-100 sec, 0-1000 ml/min
Friction Speed	85
Use Power	30 W (air pump power except)
Measurement Units	kPa, N, mN, mm, g/m2, %, sec, ml/min
Operating Method	Microcomputer Control
Operation Method	Automatic

Product Description

The HD-P012 Paper Cup Stiffness Tester is a specialized instrument designed for testing the stiffness of paper cup bodies. Developed in accordance with QB/T2294 paper cup standards, GB/T27590 paper cup standards, and JJG157 technical requirements for non-metallic testing machines, this instrument is essential for paper cup manufacturers, quality control departments, and research facilities.

Testing Standards

GB/T27590-2022, QB/T 2294, JJG157 and related standards.

Key Features

High-precision force sensors and chip processing systems imported from the United States ensure accurate measurements
Excellent test repeatability with adjustable test speed and probe movement distance for enhanced versatility
User-friendly operation with 7-inch touch screen displaying Chinese and English interfaces
Automated testing with real-time display of force-deformation curves and test data
Built-in statistical processing and micro-printer output capabilities

Standard Specifications

Specification	Value
Measuring range	0~30N (optional 5, 10, 20, 50N)
Resolution	0.001N
Indication accuracy	±1%
Test speed	50±0.1mm/min (adjustable from 1 to 500 mm/min)
Probe movement distance	9.5±0.1mm (adjustable from 1 to 80mm)
Probe centering	≤0.2mm
Distance between probes	40~120mm
Data output	Thermal printer
Data storage capacity	99 groups
Dimensions	500×270×330mm
Weight	Approximately 18kg
