HD-P008 Sheet Former for Paper Compression and Burst Testing

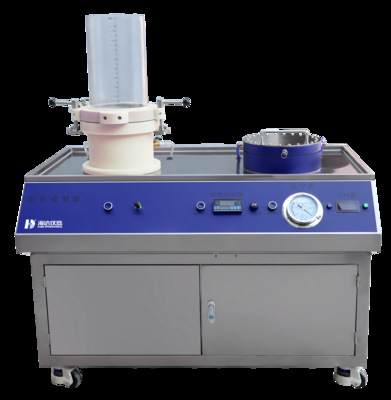

Gambar besar : HD-P008 Sheet Former for Paper Compression and Burst Testing

Detail produk:

Place of Origin:	China
Nama merek:	Haida
Sertifikasi:	CE、ISO
Model Number:	HD-P008

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Dapat dinegosiasikan
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Kontak

HD-P008 Sheet Former for Paper Compression and Burst Testing

Deskripsi

Fungsi:	Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker	Nama:	Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst
Menampilkan:	LCD, Tampilan Digital	Fitur:	mudah dioperasikan
Metode operasi:	Otomatis	Jenis produk:	Instrumen pengujian
Perangkat perlindungan:	Perangkat Perlindungan Jenis Induksi	Kontrol:	Kontrol PLC
Metode penginderaan:	Pemancar tekanan	Berhenti:	Hentikan tes
Resolusi kekuatan:	1/500000 dari gaya uji maksimum FS	Mode getaran:	membalas
Pengaturan siklus uji:	4 digit penghitung yang sudah ditetapkan sebelumnya
Menyoroti:	Burst Testing Paper Sheet Former , Paper Compression Sheet Former , Paper Sheet Former

EQUIPMENT DETAILS OF HD-P008 SHEET FORMER

Product Attributes

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, Paper testing instrument
Display	LCD, Digital display
Feature	Easy to operate
Operation Method	Automatic
Product Type	Testing Instruments
Protection Device	Induction type protection device
Control	PLC control
Sensing Method	Pressure Transmitter
Stop	Stop test
Force Resolution	1/500000 of the maximum test force fs
Vibration Mode	Reciprocating
Test Cycles Setting	4 digits pre-set counter

Application

This instrument complies with ISO5269/2 "Pulp - Preparation of Laboratory Paper for Physical Testing" Part II - Rapid Sheet Forming Method. It is used to prepare handsheets for testing physical properties and can also be used for wet sheeting of various fibers including glass fibers, carbon fibers, and nanomaterials. The machine integrates sheet copying, suction filtration, pressing, and drying functions, enabling the complete process from fiber to sample shaping on a single unit.

Standard Features

Inner diameter of round type pulp storage container	≥ 200mm
Water filtering copper mesh surface to water seal overflow edge	800+5mm
Water filtering copper mesh pressure hole	(80 .100) optional (nano-fiber using the way of the tray network + filter paper)
Copper mesh clip material	304 stainless steel Copper mesh material: paper special phosphorus copper mesh
Volt weight	13kg hand-copied paper sheet pressure of 400kpa (volt roller press can increase the smoothness and uniformity of the paper)
Diameter of hand-copied paper sheet	∮200mm
Vacuum pump vacuum degree	-0.092~-0.098MPa
Vacuum pressing force	≈0.1MPa
Drying station	1 (2 or more stations can be optioned)
Drying temperature	≤140℃ Digital arbitrary setting
Drying plate release mode	Natural release (with self-absorbing function automatically absorbing after pressing together)
Drying time (quantitative 10-85g/m2)	3-6 minutes (varies for different fiber types with different moisture content of paper samples)
Heating power	2.5KW
Paper thickness range	10-200g/m2 0.05-3mm (varies for different fiber types)
Seal ring material	Silicone
Water way	Bottom water. The upper end of the water
Drainage method	Pneumatic water release
