5027-HD Coefficient Friction Tester for Paper Packaging Testing

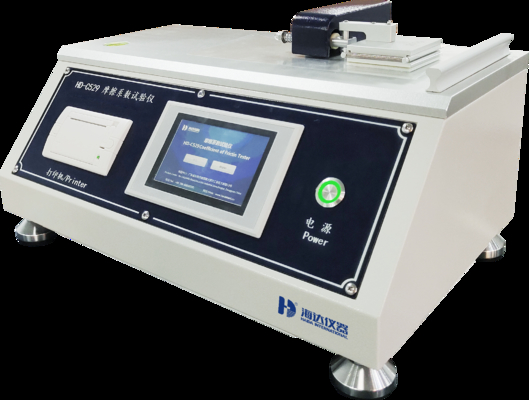

Gambar besar : 5027-HD Coefficient Friction Tester for Paper Packaging Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5027-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5027-HD Coefficient Friction Tester for Paper Packaging Testing

Deskripsi

Standar Desain:	ASTM D646, JIS P8124, QB / T 1671	Metode operasi:	Kontrol komputer mikro
Pembacaan Minimal:	0.1	Menjatuhkan penyimpangan:	±10mm
Resolusi beban:	1/250.000	Standar pengujian:	ISO, ASTM, Tappi
Tes jatuh:	Sudut, tepi, permukaan sampel	Sudut lentur berperingkat:	± 7,5 ° dan ± 15 °
Penggunaan:	Pengujian kemasan	Ukuran kayu lapis:	H48in * d48in
Udara terkompresi:	6 kg/cm2	Opsi beban uji:	55g, 175g, 275g
Mode drive:	dengan motor	Memuat resolusi sel:	1/250.000
Menyoroti:	coefficient friction tester , Paper Packaging Testing Friction tester , coefficient friction Tester 5027-HD

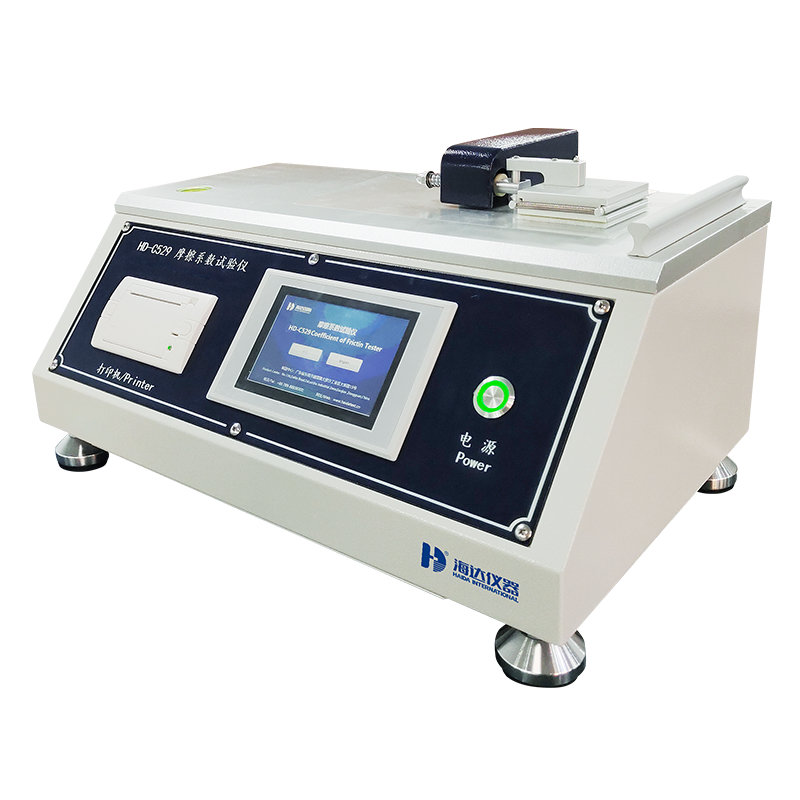

5027-HD Coefficient Friction Tester

Product Description

This tester complies with GB 10006-88 and ISO 8295-1986 standards for measuring dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness < 0.2mm) when sliding on themselves or other materials. Suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The measured friction coefficient indicates product smoothness.

Technical Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB/T 1671
Operating Method	Microcomputer Control
Minimum Readout	0.1
Dropping Deviation	±10mm
Load Resolution	1/250,000
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Rated Bending Angle	±7.5° and ±15°
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm²
Test Load Options	55g, 175g, 275g
Drive Mode	Power-driven

Standard Features

Specification	5027-HD
Control mode	Touch screen control
Test stroke	1-200mm
Test speed	100±10mm/min (speed adjustable)
Slider weight	200±2g (others can be customized)
Upper sample size	63mm63mm (LW)
Lower sample size	80mm200mm (LW)
Force test accuracy	±0.02N
Measuring range	0.001-5N (expandable)
Instrument dimensions	Approx. 490320210mm (LWH)
Usage environment	Indoor temperature 20±10℃, relative humidity <85%
Power supply	1∮ AC220V
Machine weight	Approx. 18kg
Power	Approx. 350W

Key Features

Hardware Features

Stepper motor components for precise positioning and motion repeatability
Dual guide rails and linear bearings for accurate positioning and smooth movement
Paint-sprayed exterior for high rust resistance and aesthetic appeal

Software Features

Touch screen control for easy operation and improved efficiency
Built-in direct thermal line printer for immediate test results
Travel limit protection and fault alarm system for safe operation

Operation Principle

The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force test module for uniform linear motion. Samples are secured under the handle, and the system calculates friction coefficients during motion, with results printed upon completion.
