5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing

Name: 5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing
Brand: Hai Da Labtester
SKU: 5028-hd
Price: 7,500.00 USD
Availability: InStock

Semua produk

Lab Test Machines
(68)

Uji lingkungan Chamber
(114)

Mesin Uji Tarik
(224)

Peralatan pengujian peradangan
(45)

Temperatur Kelembaban Kamar
(42)

Accelerated Aging Chamber
(59)

Peralatan Uji IP
(39)

korosi kamar uji
(41)

Pengujian Kemasan ISTA
(34)

Instrumen pengujian kemasan kertas
(96)

peralatan pengujian furnitur
(115)

Penguji perangkat medis
(10)

pengujian peralatan tekstil
(40)

Sistem Meja Shaker Vibration
(23)

Mesin pengujian mekanika
(6)

Mesin Pengukur Optik
(23)

Peralatan uji baterai
(43)

Peralatan pengujian karet plastik
(54)

mesin analisis kimia
(19)

Mesin Tes Rokok Elektronik
(10)

Sertifikasi

Ulasan pelanggan

Ya, kami menerima mesin minggu lalu. Kami sangat sibuk saat ini, dan saya belum bisa mengujinya, tapi sepertinya tidak masalah bagi saya.

—— Peter Maas

Atas nama perusahaan untuk mengunjungi pabrik dan perusahaan Anda, staf teknis sangat profesional dan sabar, saya pikir saya akan senang untuk bekerja sama dengan Anda lagi.

—— Steve Hubbard

I 'm Online Chat Now

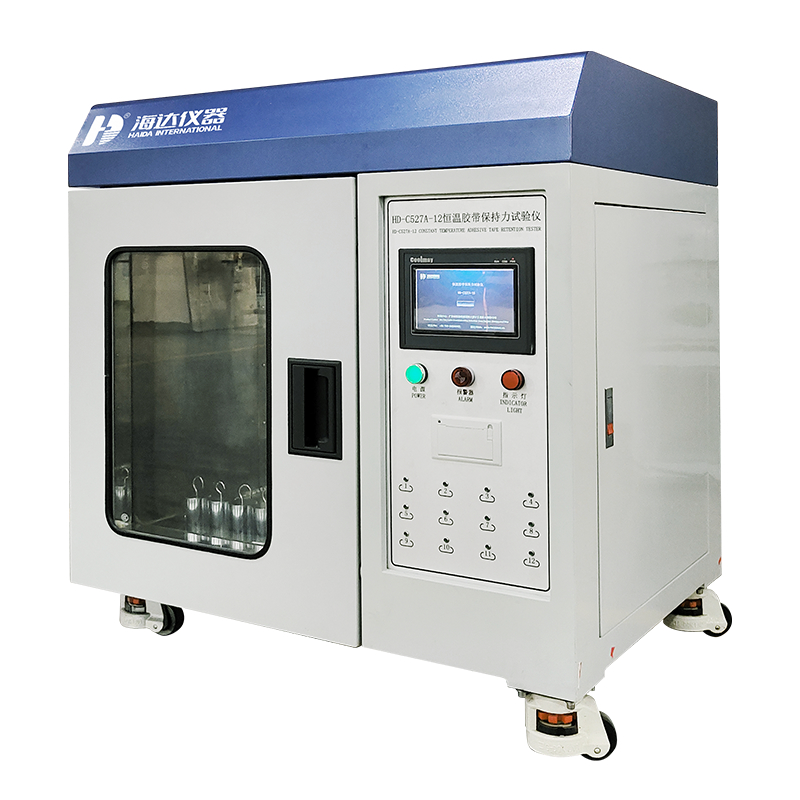

5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing

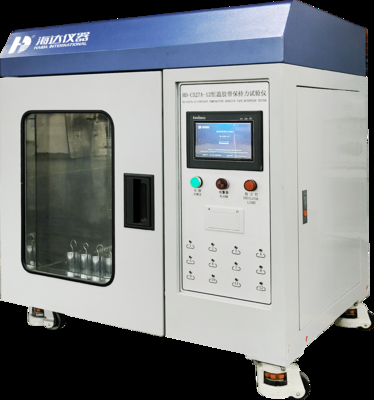

Gambar besar : 5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5028-hd

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing

Deskripsi

Standar Desain:	ASTM D646, JIS P8124, QB / T 1671	Metode operasi:	Kontrol komputer mikro
Pembacaan Minimal:	0.1	Menjatuhkan penyimpangan:	±10mm
Resolusi beban:	1/250.000	Standar pengujian:	ISO, ASTM, Tappi
Tes jatuh:	Sudut, tepi, permukaan sampel	Sudut lentur berperingkat:	± 7,5 ° dan ± 15 °
Penggunaan:	Pengujian kemasan	Ukuran kayu lapis:	H48in * d48in
Udara terkompresi:	6 kg/cm2	Opsi beban uji:	55g, 175g, 275g
Mode drive:	dengan motor	Memuat resolusi sel:	1/250.000
Menyoroti:	Stick Viscosity Tester 5028-HD , Packaging Stick Viscosity Tester , Constant Temperature Stick Viscosity Tester

5028-HD Constant Temperature Stick Viscosity Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB/T 1671
Operating Method	Microcomputer Control
Minimum Readout	0.1
Dropping Deviation	±10mm
Load Resolution	1/250,000
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Rated Bending Angle	±7.5° and ±15°
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm²
Test Load Options	55g, 175g, 275g
Drive Mode	Power-driven

Machine Production

Designed and manufactured in accordance with GB 4851 (pressure-sensitive adhesive tape stickiness test method) and plaster adhesion test method standards. Suitable for testing pressure-sensitive adhesive tapes, self-adhesives, plaster, hot sol, and similar products.

Test Standards

GB 4851: Test Method for Holding Tack of Pressure Sensitive Adhesive Tapes
JIS Z 0237: Test methods for pressure-sensitive adhesive tapes and pressure-sensitive adhesive sheets
ASTM D 3654: Test Method for Shear Tack of Pressure Sensitive Tapes

Standard Features

Feature	Specification
Number of test groups	12 groups
Timing mode	PLC system setting program record
Test Indicator	Separate metal indicator light
Inner box lighting	24W high temperature resistant lamp (can withstand 500°C)
Test temperature	Normal temperature~200°C
Temperature control mode	PLC system sets program to adjust temperature and constant temperature time
Temperature display	0.1°C
Temperature control accuracy	±1°C
Standard weight	1000g±5g (including loading plate weight)
Heating method	Hot air circulation
Test steel plate	150(L)50(B)2(D)mm
Test steel plate materials	SUS304 mirrored stainless steel sheet
Standard test plate roughness	Mirror 50nm±25nm
Safety device	Power-off protection for over-temperature and electric overload
Machine material	Internal SUS304# stainless steel plate, external high-grade steel plate with baked paint
Inner box size	448350540mm (LWH)
Dimensions	960660960mm (LWH)
Weight	Approximately 320kg
Power supply	AC220V 2100W
