5030-HD Martindale Abrasion Tester for Packaging Testing

Name: 5030-HD Martindale Abrasion Tester for Packaging Testing
Brand: Hai Da Labtester
SKU: 5030-HD
Price: 7,500.00 USD
Availability: InStock

Semua produk

Lab Test Machines
(68)

Uji lingkungan Chamber
(114)

Mesin Uji Tarik
(224)

Peralatan pengujian peradangan
(45)

Temperatur Kelembaban Kamar
(42)

Accelerated Aging Chamber
(59)

Peralatan Uji IP
(39)

korosi kamar uji
(41)

Pengujian Kemasan ISTA
(34)

Instrumen pengujian kemasan kertas
(96)

peralatan pengujian furnitur
(115)

Penguji perangkat medis
(10)

pengujian peralatan tekstil
(40)

Sistem Meja Shaker Vibration
(23)

Mesin pengujian mekanika
(6)

Mesin Pengukur Optik
(23)

Peralatan uji baterai
(43)

Peralatan pengujian karet plastik
(54)

mesin analisis kimia
(19)

Mesin Tes Rokok Elektronik
(10)

Sertifikasi

Ulasan pelanggan

Ya, kami menerima mesin minggu lalu. Kami sangat sibuk saat ini, dan saya belum bisa mengujinya, tapi sepertinya tidak masalah bagi saya.

—— Peter Maas

Atas nama perusahaan untuk mengunjungi pabrik dan perusahaan Anda, staf teknis sangat profesional dan sabar, saya pikir saya akan senang untuk bekerja sama dengan Anda lagi.

—— Steve Hubbard

I 'm Online Chat Now

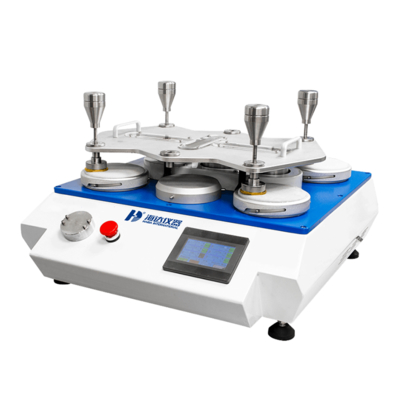

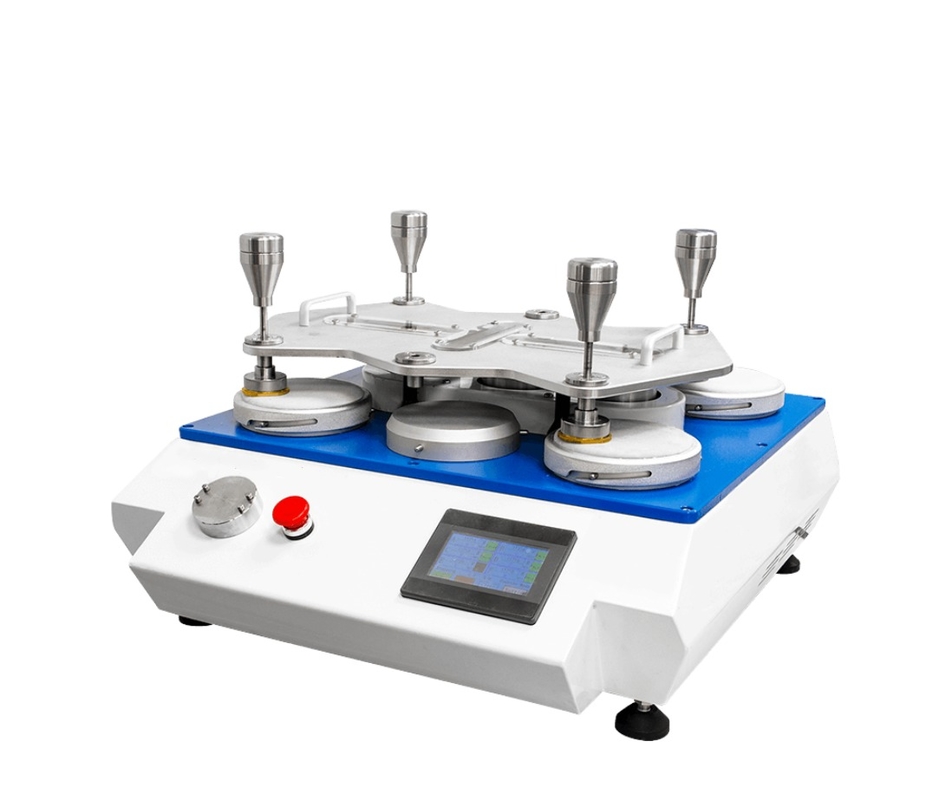

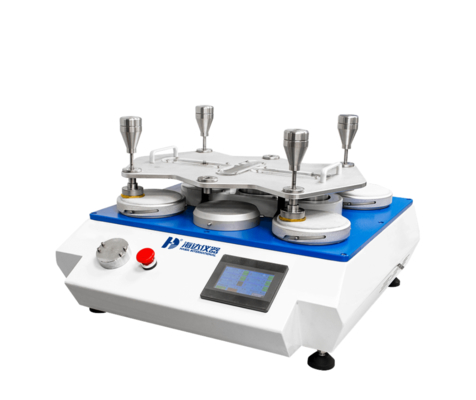

5030-HD Martindale Abrasion Tester for Packaging Testing

Gambar besar : 5030-HD Martindale Abrasion Tester for Packaging Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5030-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5030-HD Martindale Abrasion Tester for Packaging Testing

Deskripsi

Standar Desain:	ASTM D646, JIS P8124, QB / T 1671	Metode operasi:	Kontrol komputer mikro
Standar pengujian:	ISO, ASTM, Tappi	Tes jatuh:	Sudut, tepi, permukaan sampel
Penggunaan:	Pengujian kemasan	Ukuran kayu lapis:	H48in * d48in
Udara terkompresi:	6 kg/cm2	Kapasitas:	10, 20, 50, 100, 200 kg
Rentang tekanan:	600 ~ 1200kpa	Dimensi pengemasan:	(W x d x h) 680500680mm
Menjamin:	1 tahun	Volume Burette:	50 mL
Fungsi:	Menguji kualitas dan kinerja bahan kemasan kertas	Tampilan sudut:	Tampilan Digital LCD
Tampilan Data:	Memuat, perpindahan, kecepatan	Ukuran Spesimen:	Ukuran minimum: 230 × 50 mm
Kecepatan kembali:	30mm/menit	Mode Pindai:	Satu baris
Muat Presisi:	Dalam ±0,25%	Ketepatan:	± 1%
Voltase:	110/220V AC, 250W
Menyoroti:	Packaging Testing Martindale Abrasion Tester , 5030-HD Martindale Abrasion Tester

5030-HD Martindale Abrasion Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm2
Capacity	10, 20, 50, 100, 200 kg
Pressure Range	600~1200kpa
Packaging Dimensions	(W x D x H) 680500680mm
Guarantee	1 Year
Burette Volume	50 ml
Function	Testing the quality and performance of paper packaging materials
Angle Display	LCD digital display
Data Display	Load, displacement, speed
Specimen Size	Minimum Size: 230×50 mm
Return Speed	30mm/min
Scan Mode	single line
Load Precision	Within ±0.25%
Accuracy	±1%
Voltage	110/220V AC, 250W

General Specifications

Packaging Dimensions: (W x D x H)70cmx75cmx47cm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 110KG

Introduction

The 5030-HD Martindale Abrasion Tester is primarily used for resistance testing of textiles, outer layers, linings, or under layers of footwear and similar fabrics. Tests can be conducted as dry or wet tests according to standards. Samples are tested Lissajous-oriented for regulated times, after which the difference between tested and original samples is observed to determine the grade of scrubbing resistance.

Standards Compliance

ASTM D4970, ISO12945-2 and other pilling degree tests
ASTM D4966, ISO12947 and other fabric abrasion tests

Key Features

LCD touch screen interface for clear operation
Supports both pill and abrasion testing processes to meet various international standards
Reduces and increases counting testing method for simplified operation
Features imported PLC for reliable, long-term testing

Standard Features

Model: 5030-HD

Stations: 6 Stations

Interface: LCD display

Count display: Projected Count: 0 ~ 999,999 times; Cumulative count: 0 ~ 999,999 times

Maximum stroke: 24 ± 0.5mm, 60.5 ± 0.5mm

Loading:

Holder: 200±1g
Dress material counter weight: 395±2g
Furnishings/Leather material counter weight: 594±2g
Stainless steel butterfly slice: 260±1g

Abrasion chunk effective rub diameter:

A model: 200g(1.96N,9KPa), abrasion head￠28.8 -0.084mm
B model: 155g(1.52N,12KPa), abrasion head￠90 -0.10mm

Pace speed of the holder: 50-2r/min

Sample loading pressure hammer: 2385±10g

Consumables: Baize 6, Testing Cotton 6

Diameter of abrasion fabric: 140mm

Diameter of Specimen: 38mm

Power: AC 220V/50Hz

Overall dimension: 50cmx60cmx32cm(L*W*H)

Weight: 76 KG
