5032-HD Non-Woven Air Permeability Tester for Packaging Materials

5032-HD Non-Woven Air Permeability Tester for Packaging Materials
5032-HD Non-Woven Air Permeability Tester for Packaging Materials 5032-HD Non-Woven Air Permeability Tester for Packaging Materials 5032-HD Non-Woven Air Permeability Tester for Packaging Materials

Gambar besar :  5032-HD Non-Woven Air Permeability Tester for Packaging Materials

Detail produk:
Tempat asal: Cina
Nama merek: Haida
Sertifikasi: CE、ISO
Nomor model: 5032-hd
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan
Kontak

5032-HD Non-Woven Air Permeability Tester for Packaging Materials

Deskripsi
Standar Desain: ASTM D646, JIS P8124, QB / T 1671 Metode operasi: Kontrol komputer mikro
Standar pengujian: ISO, ASTM, Tappi Tes jatuh: Sudut, tepi, permukaan sampel
Penggunaan: Pengujian kemasan Ukuran kayu lapis: H48in * d48in
Udara terkompresi: 6 kg/cm2 Kapasitas: 10, 20, 50, 100, 200 kg
Rentang tekanan: 600 ~ 1200kpa Fungsi: Menguji kualitas dan kinerja bahan kemasan kertas
Tampilan sudut: Tampilan Digital LCD Tampilan Data: Memuat, perpindahan, kecepatan
Kecepatan kembali: 30mm/menit Mode Pindai: Satu baris
Menyoroti:

5032-HD Permeability Tester

,

Packaging Materials Permeability Tester

,

Non-Woven Air Permeability Tester

5032-HD Non-Woven Air Permeability Tester for Packaging Materials
Product Specifications
Attribute Value
Design Standards ASTM D646, JIS P8124, QB / T 1671
Operating Method Microcomputer Control
Testing Standards ISO, ASTM, TAPPI
Usage Packaging Testing
Plywood Size H48in * D48in
Compressed Air 6 kg/cm2
Capacity 10, 20, 50, 100, 200 kg
Pressure Range 600~1200kpa
Function Testing the quality and performance of paper packaging materials
Data Display Load, displacement, speed
Return Speed 30mm/min
Equipment Overview

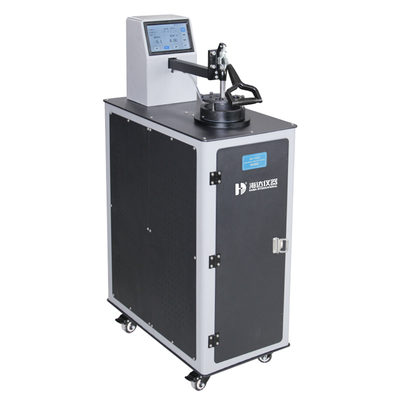

5032-HD Non-Woven Air Permeability Tester for Packaging Materials 0

The 5032-HD Non-Woven Air Permeability Tester directly measures air permeability (the speed of air flow passing vertically through a sample under specific conditions) of various materials including woven and knitted fabrics, industrial textiles, non-wovens, artificial leather, felts, and paper.

Compliance Standards

GB/T5453, GB/T13764, ISO 9237, EN ISO 7231, AFNOR G07, ASTM D737, BS5636, DIN 53887, EDANA 140.1, JIS L1096, TAPPIT251

General Specifications
  • Packaging Dimensions: 1170×780×1,230mm (W×D×H)
  • Power supply: Single-phase, 220V±10%, 50/60Hz (configurable)
  • Gross Weight: 120kg
Key Features
  • High-precision micro-pressure differential sensor for accurate, repeatable measurements
  • Large color touch screen with Chinese/English interface
  • Custom-designed muffler reduces operational noise
  • Includes standard calibration orifice plate for quick calibration
  • Two test modes: Quick test (results in <30 seconds) and Stability test (for high-precision measurements)
  • Manual test orifice plate replacement with test prompts
  • Manual sample clamping device
Technical Specifications
Technical Index 5032-HD
Air permeability measuring range 0.5~14000mm/s(20cm2),0.1mm/s
Units mm/s, cm3/cm2/s, L/dm2/min, m3/m2/min, m3/m2/h, d m3/s, cfm
Sample pressure range 0~2,400 Pa
Accuracy ≤±1%
Test areas 20 cm²
Sample thickness ≤10mm
Accessories Test Heads: 01 Nos. 20cm²; Calibration Check Plate: 01 Nos. ΦO=7.8
Dimensions 360×620×1070mm (L×W×H)
Power supply AC220V,50Hz, 1500W
Weight 65kg

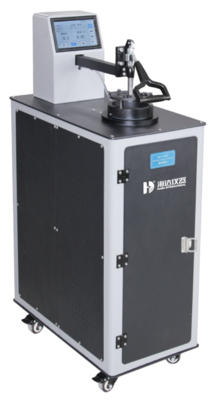

5032-HD Non-Woven Air Permeability Tester for Packaging Materials 1
Haida Bottle Compression Test Machine

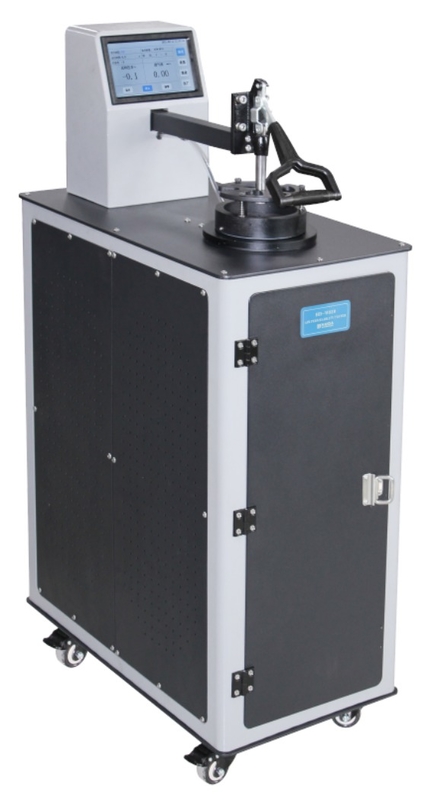

5032-HD Non-Woven Air Permeability Tester for Packaging Materials 2
Haida Testing Equipment
5032-HD Non-Woven Air Permeability Tester for Packaging Materials 3
Haida Laboratory Testing Machine
