Sanitary Napkin Backing Peeling Strength Tester ASTM D646

Gambar besar : Sanitary Napkin Backing Peeling Strength Tester ASTM D646

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5034-hd

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

Sanitary Napkin Backing Peeling Strength Tester ASTM D646

Deskripsi

Standar Desain:	ASTM D646, JIS P8124, QB / T 1671	Metode operasi:	Kontrol komputer mikro
Standar pengujian:	ISO, ASTM, Tappi	Tes jatuh:	Sudut, tepi, permukaan sampel
Penggunaan:	Pengujian kemasan	Area Tes:	10 ± 0,05cm ^ 2
Ukuran kayu lapis:	H48in * d48in	Prosedur Pengujian:	10 - 15 tes per menit
Satuan:	Kpa, psi, kg/cm^2	Warna:	Opsional
Rentang beban:	0 ~ 60g (ditunjuk 0 ~ 100g)	Akurasi kekuatan tes:	< ±1% dari nilai tampilan
Lebar sampel maksimum:	100 mm	Aplikasi:	Pengujian paket
Ketepatan:	± 1%	Kecepatan pengujian:	2 °/ detik
Kedalaman pemotongan:	<8 mm	Rentang pengukuran:	0-9999 Detik
Kecepatan kembali:	30mm/menit	Potong spesimen:	100 × 60 mm
Menyoroti:	ASTM D646 Peeling Strength Tester , Sanitary Napkin Backing Peeling Strength Tester

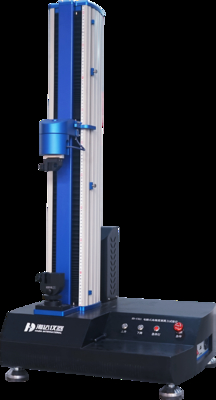

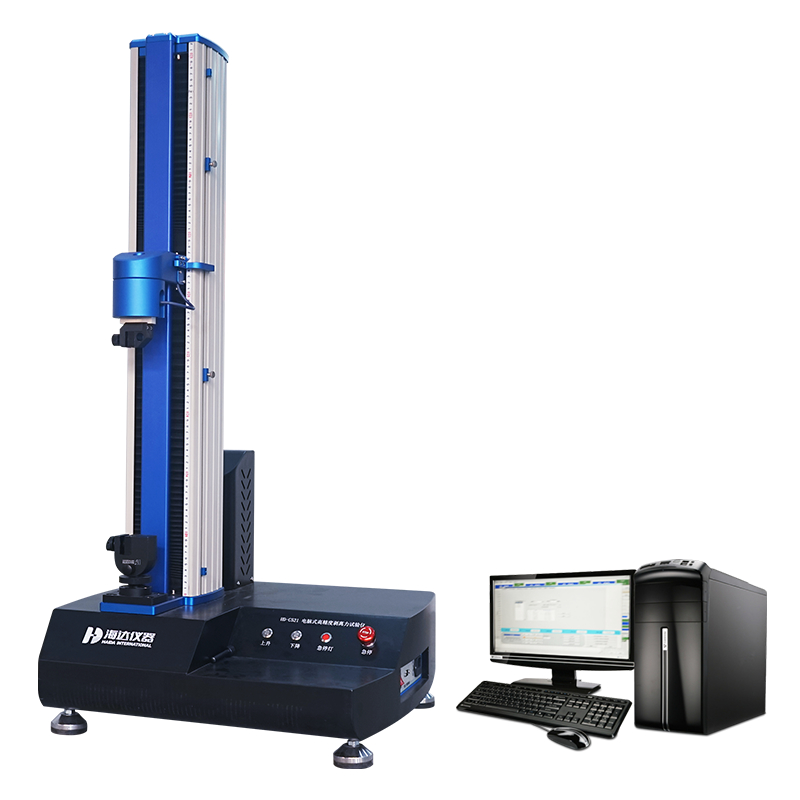

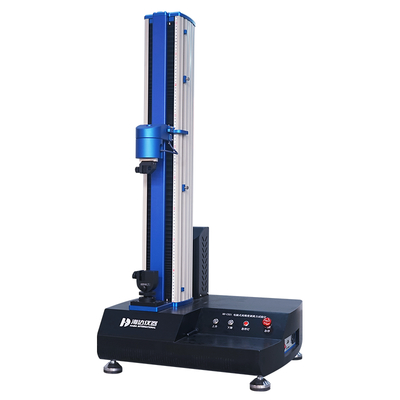

5034-HD Sanitary Napkins (Pads) Backing Peeling Strength Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Testing Standards	ISO, ASTM, TAPPI
Test Area	10 ± 0.05cm²
Plywood Size	H48in * D48in
Testing Procedure	10-15 tests per min
Unit	Kpa, psi, kg/cm²
Load Range	0~60g (designated 0~100g)
Test Force Accuracy	< ±1% of the display value
Maximum Sample Width	100 mm
Accuracy	±1%
Testing Speed	2°/ second
Cutting Depth	< 8 mm
Measuring Range	0-9999 seconds

Product Description

The 5034-HD tester is designed for evaluating the peeling strength of sanitary napkins and panty liners. It also effectively tests the peeling and adhesion performance of various materials including plastic films, adhesive tapes, self-adhesive labels, release papers, protective films, and diaphragms.

Testing Principle

A standard jersey is attached to the adhesive backing of sanitary absorbent pads. After conditioning under specified conditions, the sanitary napkin and standard jersey are peeled 180° apart. The average peeling force within the specified displacement is measured to determine adhesive strength.

Design Standards

GB/T 8939-2018-Annex E, GB/T 2792-2014, GB 2792-81, ASTM D3330, JIS_K6854-1-1999, DIN 53357, ISO 8510, ISO 29862

Product Features

Structural Features

Baking varnish coating enhances protective performance and pressure resistance
Flexible accordion-style protective cover reduces friction noise
Manual rising/falling operation for user convenience

Control System

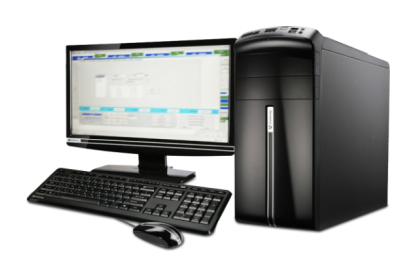

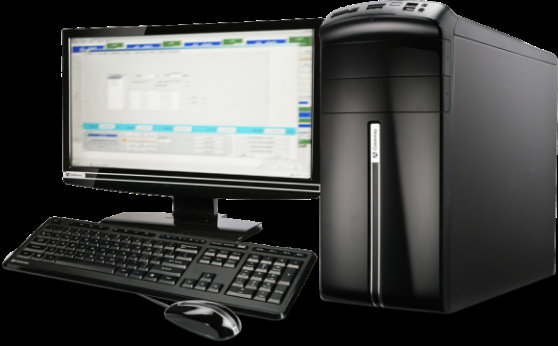

Direct PC connection minimizes data interference
MTest software with multilingual support (English, Chinese, Traditional Chinese)

Test Structure

High-quality components ensure accurate low-viscosity testing
Silent reducer prevents vibration and noise
Servo motor system with precision ball screw for 0.5 displacement accuracy

Protection System

Includes intelligent limit protection, overload protection, and automatic return for safe operation.

Sample Schematic Diagram

Technical Parameters

Load capacity	50N (standard); 10N/20N (optional)
Motor	400w servo motor
Driver	400w servo driver
Control method	Computer control, Windows mode operation
Adjustable speed	0.1-500mm/min (Standard: 400±10 mm/min)
Initial clamp distance	80mm
Clamp width	(80±1) mm
Sample requirements	Length: 120mm (minimum 60mm for shorter backings)
Standard jersey	120-140g/m², L(120±1)xW(65±1)mm, elongation ≤25.0%
Stripping length	60mm
Dimensions	580×550×1150mm (L×W×H)
Weight	68Kg
Power	1∮ AC 220V 500W
