Detail produk:
|
Nama: | Tabung Kertas Tabung Kekuatan Kompresif Penguji, Instrumen Pengujian Kertas Kertas GSM Tester/ Burst | Menampilkan: | LCD, Tampilan Digital |
---|---|---|---|
Fitur: | Mudah dioperasikan | Metode operasi: | Otomatis |
Jenis produk: | Instrumen pengujian | Perangkat perlindungan: | Perangkat Perlindungan Jenis Induksi |
Kontrol: | Kontrol PLC | Kekuatan: | Elektronik, 220V/50Hz, AC220V, grounded, catu daya harus dapat diandalkan |
Penggunaan: | Instrumen Pengujian Kertas, Mesin Pengujian Universal, Kertas/Bahan Plastik Instrumen Pengujian Keku | Nama Produk: | Instrumen Pengujian Permeabilitas Udara Kertas Lab, Paket Drop Dampak Keandalan Tester / Instrumen P |
Jaminan: | 12 bulan, 1 tahun, 2 tahun, 1-2 tahun, satu tahun | Berat: | 70 kg, 91 kg, sekitar 145 kg, 75kg, 64kg |
Catu daya: | 6a, AC220V, 220V 50Hz, 50-60Hz, 1 diameter | Aplikasi: | dll, tube tube tester kekuatan tekan, pelat, karet, batang |
Resolusi: | 1 / 20000,1 / 50000,0.1n, 000,1mn | Kapasitas: | 200.500.1000kg, 20.10t Kustomisasi |
Ketepatan: | ± 0,5%, ± 1%, ± 0,5% | Fungsi: | Tes Kompresi, Uji Kekuatan Kompresif Tabung Kertas, Tester Burst, Uji Tarik, Instrumen Pengujian Ker |
Unit beralih: | KGF, n. (Opsional), lbf | Kecepatan pengujian: | 10 ~ 200 mm/menit |
Dimensi: | 360*264*400mm, 70*34*60 cm, 85*65*80cm | Rentang pengukuran: | 250-5600 kPa, 10 ~ 1000mn |
Mode tampilan: | Tampilan LCD, Mode Digital | Kriteria Desain: | ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87 |

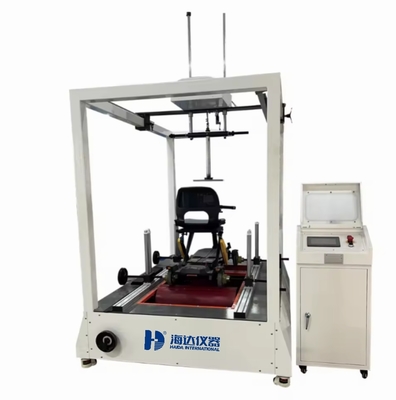

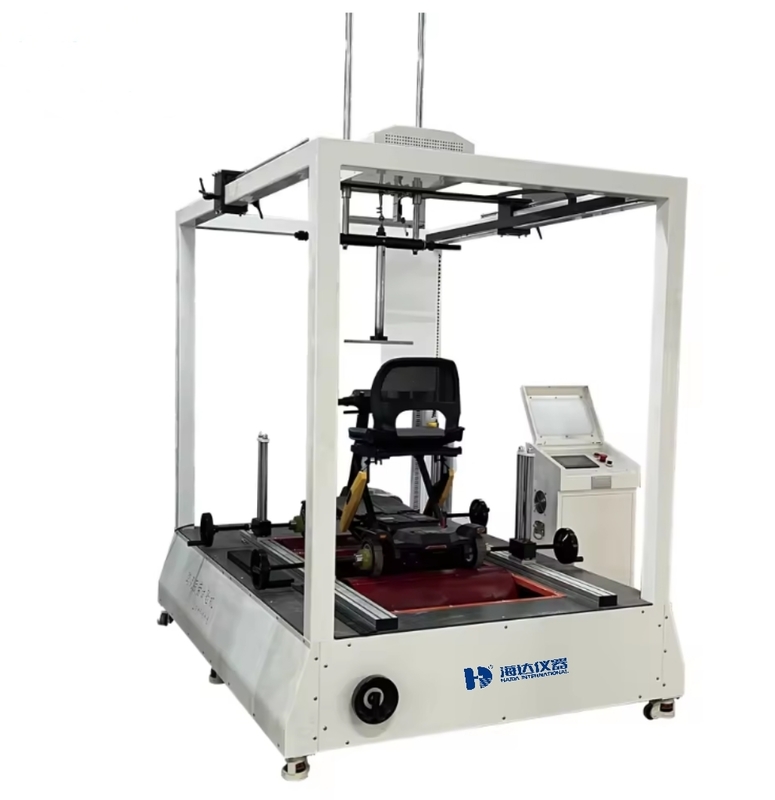

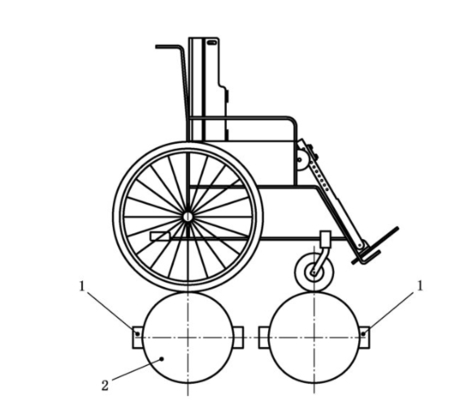

This machine performs road condition fatigue tests on wheelchairs, visually inspecting the extent of damage to the wheelchair. It is suitable for manual wheelchairs operated by the user or caregiver, as well as indoor and outdoor electric wheelchairs. Electric wheelchairs have three or more wheels mounted on two parallel drive axles, with no more than two driving wheels, and a speed not exceeding 5km/h. The machine is controlled by a PLC touch screen, allowing the setting of driving speed and distance. It can be set to distance mode or rotation mode, and will automatically shut off upon reaching the set distance.
ISO 7176-8-5.8;GB/T 1802
Maximum load capacity | ≥300kg |
Speed Range | 0-5KM/H Test speed: 1.0m/s (reference roller), 1.02—1.07m/s (driven roller) |
Test times | 0~999999 R can be set |
Obstacle height | 36±3 x 12±1 x 500mm(W×H×L), interchangeable |
Power supply | 380v, 50hz |
Roller quantity | 2-3 rollers customized |
Wheel diameter | ∮250±25mm. Width 900mm, surface knurling to increase the friction coefficient |
Wheel center distance adjustment range | 400~1000mm, adjusted by screw handwheel |
Dimensions | Approx.2200mmx1260mmx2700mm |
