5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply

Gambar besar : 5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply

Detail produk:

Tempat asal:	CINA
Nama merek:	Haida
Sertifikasi:	CE、ISO
Nomor model:	5121-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	300 set per bulan

Kontak

5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply

Deskripsi

Bahan:	Baja	Fitur opsional:	Kapasitas dan dimensi beban yang dapat disesuaikan
Kata kunci:	mesin pengujian furnitur	Kekuatan:	Elektronik
Metode pengujian:	Pengujian beban dinamis dan statis	Catu daya:	AC/DC
menggunakan:	kursi	Jenis:	Peralatan uji
Sakelar unit:	gf，kgf, N, LBf, W, KN, T	Kapasitas muatan maksimal:	500 lbs
Mode mengemudi:	motor frekuensi variabel dan timing belt	Sumber Daya:	Listrik
Stroke:	762mm (+50mm)	Kecepatan tes:	0～30 kali/menit
Berat penguji:	240kg	Tampilan LCD:	Ya
Dimensi:	WDH (188103230cm)	Pasokan udara terkompresi:	6 bar
Ukuran:	50 x 30 x 40 inci	Sandaran tangan yang dapat disesuaikan:	Ya
Dampak diameter karung pasir:	Karung pasir standar 16 inci 125 pon	Stand tester:	1800x1000mm
Menyoroti:	5121-HD Stability Test Platform , Weelchair Dynamic Stability Test Platform

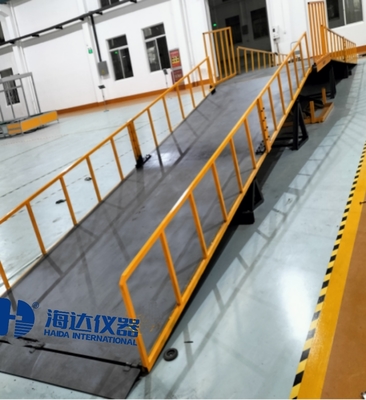

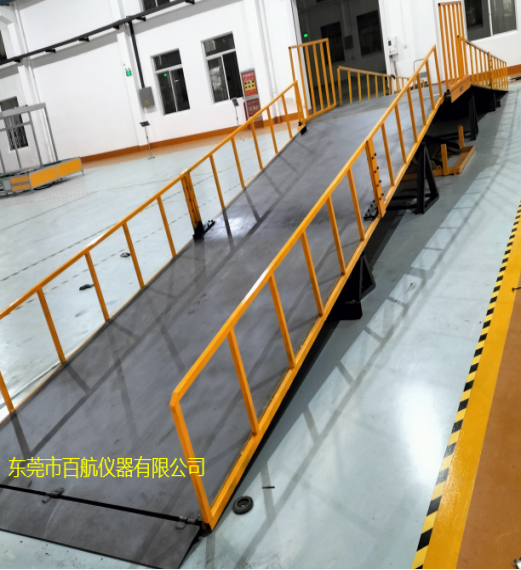

5121-HD Weelchair Dynamic Stability Test Platform

EQUIPMENT DETAILS

5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply 0

APPLICATIONS & TEST PURPOSE:

The test dummy is used for dynamic stability testing and climbing performance of wheelchairs. The entire machine is made of rigid materials welded and processed to ensure the strength and stability of the machine. The platform uses electric hydraulic lifting.

TEST STANDARD:

ISO 7176-2

STANDARD FEATURES:

Dynamic testing requires the wheelchair to run on the platform, with the adjustable tilt table at 3-6-9-10 degrees;
Ramp dimensions: width x length 2.5m x 10m, platform 2 meters. Customizable (if both sides of the ramp are required, please specify as the price will differ)
Made of rigid materials welded together; ensuring the strength and stability of the machine.
Secured with screws for easy adjustment of angles.
Angle measuring device: used to measure the angle between the test platform and the horizontal plane, with a digital display showing the angle, measurement accuracy ±0.2.
Platform uses electric hydraulic platform lifting.
There is a movable support under the ramp for safety and stability assurance.
Surface friction coefficient 0.7-1. Anti-slip treatment applied.
