HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS
HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

Gambar besar :  HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

Detail produk:
Tempat asal: Guangdong, Cina (Daratan)
Nama merek: HAIDA
Sertifikasi: ISO 9001:2000; ISO 9001:2008
Nomor model: 5100-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu yang k
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram, dalam bentuk tunai, escrow
Menyediakan kemampuan: 30 set per bulan Haida
Kontak

HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

Deskripsi
Ukuran sampel: 80mm × 300mm Rentang rotasi: 0-360 °
Tinggi sandaran tangan: 650-780mm Berat: 150kg
Rentang waktu: 0-999S Kekuatan Penutup: 50+/-5N
Memuat berat: 100 pon atau 225 pon Sensor kekuatan: Sensor merek presisi tinggi 7 set
Kecepatan: 8 ~ 12 kali / mnt Resolusi: 0,1kg, 0,98N, 0,22LB
Kapasitas muatan maksimal: 1000kg Jumlah siklus: 1 ~ 500.000
Akurasi tes statis: ± 0,1% Jangkauan pengukuran aliran: 10~100m1/menit
Ketinggian uji: 300-600mm

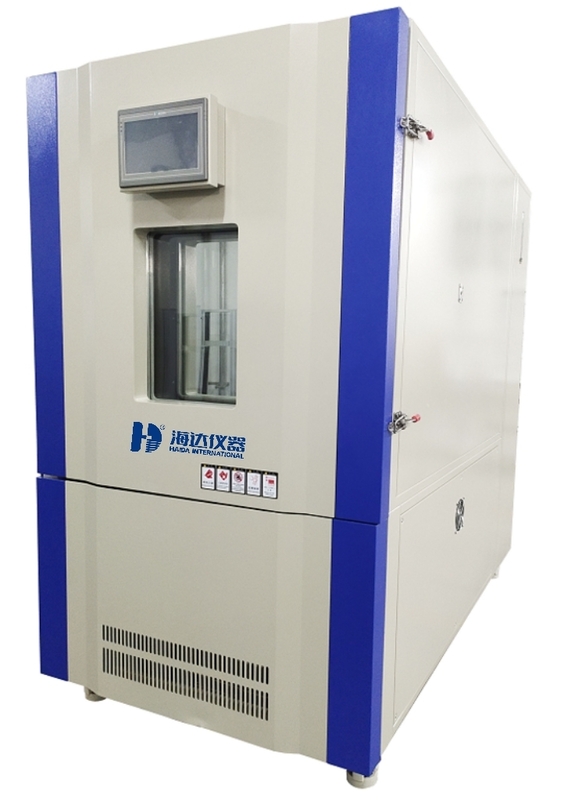

HD-F801-1 VOC Test Chamber
EQUIPMENT DETAILS

It is used to test VOC (volatile organic compound) emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.

Working Principle

Put sample into 1000L square test chamber, under specify temperature, humidity, air velocity. The VOC and formaldehyde will released from samples and mixed with the air in the chamber, the air will be drawn through the absorption bottle is filled with distilled water, all the formaldehyde in air dissolve in the water; Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m³).

Design Standard

ISO 16000-9 <Part9: Determination of the emission of volatile organic compounds from building products and compounds from building products and furnishing—Emission test chamber method>

EN 16516 <Construction products: Assessments of release of dangerous substances – Determination of emissions into indoor air>

Main technical parameters
Item Specification
Inner dimension(W*D*H) (1±0.02)m3
External dimension(W*D*H) 1230*2150*2020mm(W*D*H)
Test temperature range (15- 40)℃ (deviation: ±0.5℃, Resolution 0.1℃) Adjustable
Humidity range (30- 80)% R.H. (accuracy:±3%, Resolution 0.1%) Adjustable
Background levels

Formaldehyde≤0.006mg/m³

TVOC≤0.02 mg/m³

Single VOC≤0.002 mg/m³
Air Velocity 0.1- 2m/s, Adjustable
Air replacement rate 0.5/h
Loading factor 0.4~1.8(m2/m3)
Flowmeter Electronic air flow meter
Leakproofness 1KPa relative pressure, leakage rate＜10-3*1m³/min, import and export air differ＜1%
Cooling system Aspero refrigerating compressor
Air supply system Oil-free air compressor, cold dryer
Adiabaticity The inner walls and doors of chamber shall have effective thermal insulation.
Material
  • Chamber using Jacket structure design
  • Two layers of stainless steel inner compartment
  • The middle air layer
  • The inner compartment with mirror stainless steel
  • Don’t produce and absorb formaldehyde and VOC
Air collector

Collector speed: 0.25L/min ~ 2.5L/min, accuracy:±5%

Collector time: 99 hours adjustable

Equipped with sampling tube, absorption bottle, gas sampler
Power Three-phase, AC380V,50Hz
Standard Test Chamber, sampling tube, absorption bottle
Test Standard:EN 16516

Label:

Kelelahan Testing Machine,

Mebel pengujian peralatan,

mesin uji kompresi
