EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER
EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

Gambar besar :  EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

Detail produk:
Tempat asal: Cina
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 5078-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan
Kontak

EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

Deskripsi
sudut tumbukan: 90 derajat Resolusi waktu: 1s
Standar Desain: ￠ 84mm × 45mm Akurasi pengukuran: ± 3%
Sudut pengujian: 20 °, 30 °, 40 ° Kecepatan suara material: 1000-9999m/dtk
Kecepatan rol: 40 ± 1R. P . M Kapasitas injeksi: 40*65 cm³
Rentang waktu: 3 menit (dapat diatur secara sewenang -wenang) Ukuran kerja: Diameter 160*44 (mm) Tinggi tengah 214mm
Suhu konstan: 50 ℃ ± 0,5 ℃ dan 100 ℃ ± 0,5 ℃ Sudut Mengupas: 90 °
Dimensi: 550x440x690 mm Dimensi luar: (L × W × H) 500 × 200 × 300 mm
Jenis: tangan palu tunggal

EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER



EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER 0

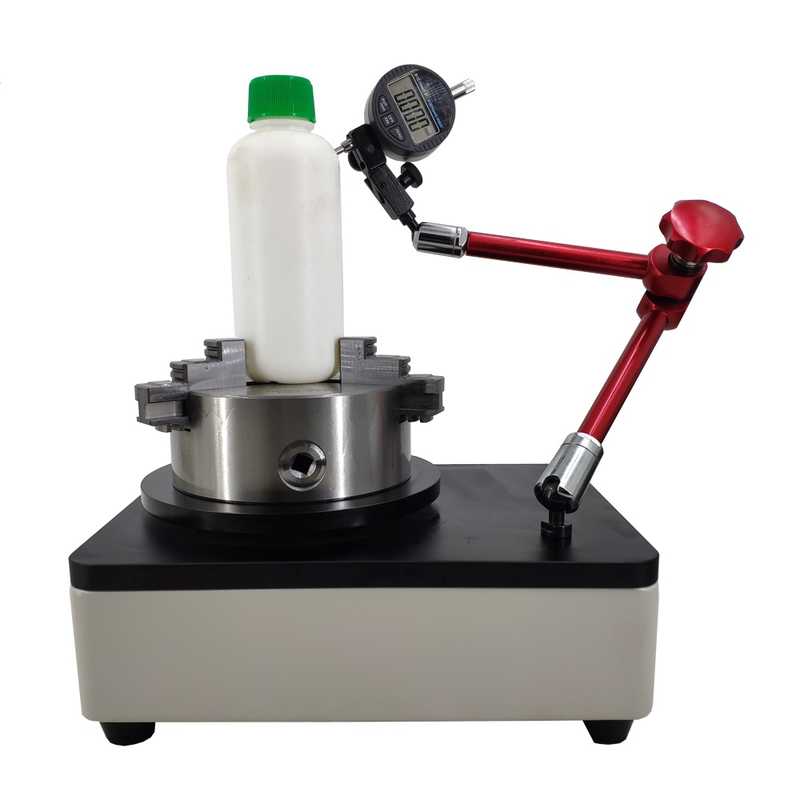

***Picture for reference



DESCIPTION

Determination professional for food, cosmetics, pharmaceuticals and other industries of various bottle container vertical deviation, and is bottle factory , bottle users and research institutions to detect bottle verticality preferred instrument bias.



PRINCIPLE

Fix the bottom of the bottle on the rotating disk of the horizontal plate, make the bottle mouth contact the micrometer, rotate 360° to read the maximum and minimum values, and 1/2 of the difference between the two is the vertical axis deviation value. The instrument uses the high concentricity of the four-claw self-centering chuck, with a set of high-freedom brackets that can freely adjust the height and orientation, to meet the testing of various glass bottles and plastic bottles.



STANDARD

QB2357, QB/T1868, YY 0056, YBB 00012012, GBT 8452, GB 2637, YBB 00332002, YBB 00042012, YBB 00052012







TECHNICAL PARAMETER

Sample diameter

Positive claw 3-55mm, reverse claw 55-145mm

Centering chuck

Four-claw/three-claw optional

Measuring range

0-12.7mm

Measuring table positioning method

Universal bracket

Resolution

0.001mm

Indication error

±0.005mm

Measurement error

≤0.05mm

Measurable height

5mm-400mm

Data output method

Can connect to computer to output data to EXCEL, Word table for data statistical analysis; (optional)

Measurement parallelism

330mm*240mm*240mm

Weight

20kg
