EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

Gambar besar :  EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

Detail produk:
Tempat asal: CINA
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 5088-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan
Kontak

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

Deskripsi
Kisaran torsi: 0-200MV Kontrol suhu: Dalam 70 ± 1 ℃ atau 100 ± 1 ℃ ke suhu kamar
Dimensi: 550x440x690 mm Kekuatan: AC 220V
Pasokan Udara: 0.6mpa Panjang roda rol: 460mm
Mode uji a: Suhu kamar Rentang tes: Rentang penuh: 0,55-500mm
stasiun uji: 3 Kesalahan tampilan suhu: 1℃
Waktu injeksi: 0-9999S [disesuaikan] Kecepatan suara material: 1000-9999m/dtk
Daya pemanas: 4KW Tampilan: Digital
Spesifikasi: 20-88HRA, 20-100HRB, 20-70HRC

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 0

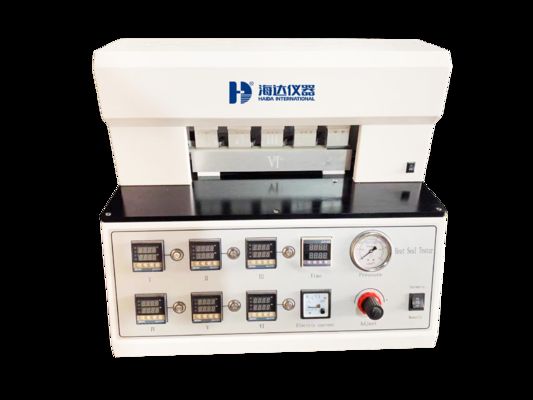

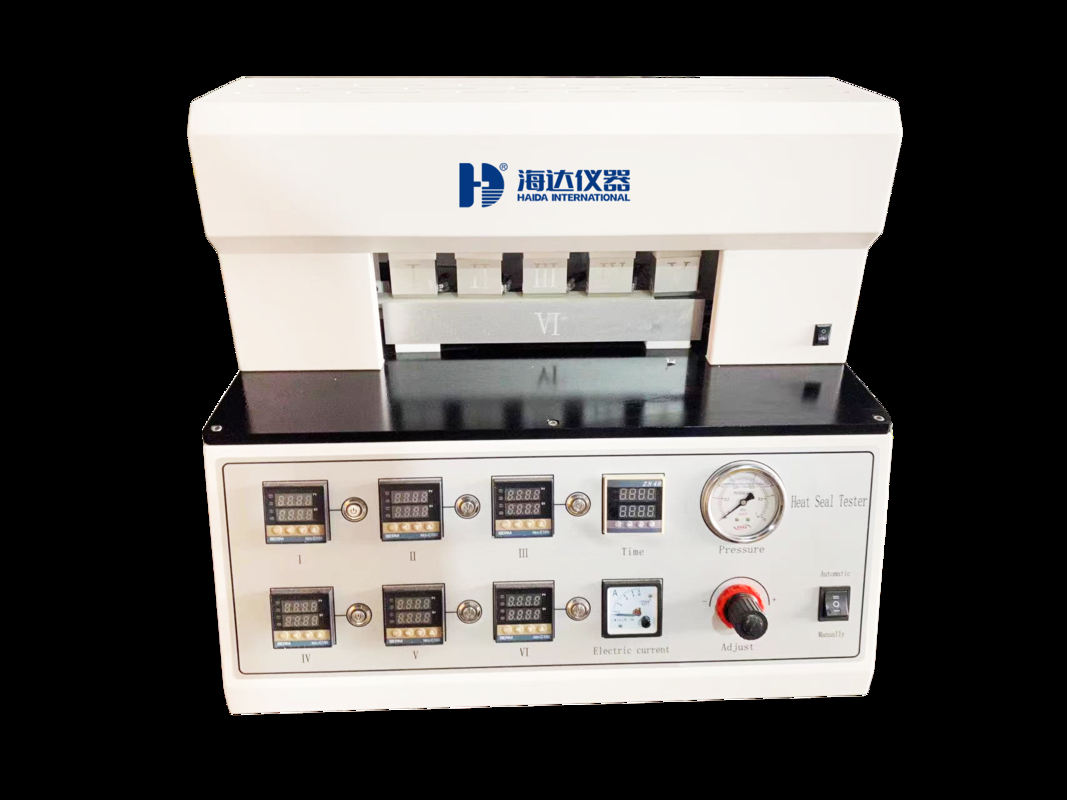

***Picture for reference***



PRODUCT DECRIPTION

Heat sealing tester adopt hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters , to provide users with accurate heat sealing test index. Fully digital control system, the key parts adopt international famous brand products, a high degree of automation, easy operation.

TEST STANDARD

ASTM F2029, QB/T 2358, YBB 00122003





TECHNICAL PARAMETERS

Item

Description

Heat sealing temperature

RT+10~250℃

accuracy

±1℃

Heating sealing pressure

0~0.7Mpa(Adjustable)

Heating sealing time

0.01~99.99s(Adjustable)

Heating sealing surface(L*W)

40mmx10mm * 5 stations

Heating method

Single heating or double heating;

upper and lower sealing knives can be individually switched and individually temperature controlled

Test mode

Manual mode / automatic mode

(Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay);

Air pressure

≤0.7MPa (user-supplied)

Machine Dimension(L*W*H)

550*330*460mm

Net weight

Around 35kg

Power

1-PH, AC 220V,50Hz

Standard configuration

Foot switch + Air supply line + Air filter + Power cord
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 1ABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 2 EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 3 EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 4
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
