Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment

Sertifikasi
CINA Hai Da Labtester Sertifikasi
CINA Hai Da Labtester Sertifikasi
Ulasan pelanggan
Ya, kami menerima mesin minggu lalu. Kami sangat sibuk saat ini, dan saya belum bisa mengujinya, tapi sepertinya tidak masalah bagi saya.

—— Peter Maas

Atas nama perusahaan untuk mengunjungi pabrik dan perusahaan Anda, staf teknis sangat profesional dan sabar, saya pikir saya akan senang untuk bekerja sama dengan Anda lagi.

—— Steve Hubbard

I 'm Online Chat Now

Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment

Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment
Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment

Gambar besar :  Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment

Detail produk:
Tempat asal: CINA
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 9002-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan

Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment

Deskripsi
Aplikasi: Pengujian Baterai Metode kabel: AC empat fase empat fase
Menampilkan: LCD Kisaran saat ini: 0-10A
Resolusi: 0.001V/0.001a Metode kabel: AC 220V
Ketepatan: ± 0,1% Catu daya: Ac
Menyoroti:

Advanced Charge Discharge Battery Testing System

,

Safety Charge Discharge Battery Testing System

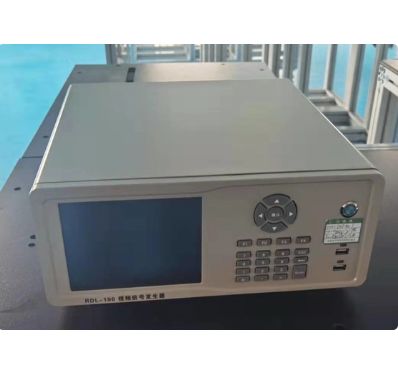

Product Overview
This video signal generator is designed for testing digital TVs, providing test signals for safety, EMC, and other related TV testing experiments. It supports CVBS, YPbPr, and HDMI interfaces, and offers a range of standard and high-definition video formats.

Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment 0

Key Features

  • Supports CVBS, YPbPr, and HDMI outputs

  • Compatible with PAL and NTSC video formats

  • Provides HD formats including 720p, 1080i, 1080p (25/30/50/60Hz)

  • Supports 4K UHD formats: 3840×2160 at 25p and 30p

  • Intuitive touchscreen and keypad control

  • USB host port for peripherals

  • Audio output (left and right channels)

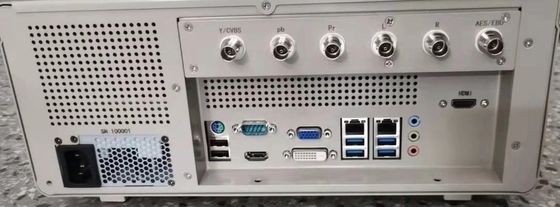

Rear Panel Interfaces

  • Y/CVBS, Pb, Pr: Analog composite and component video

  • L/R: Left and right audio channels

  • HDMI: Digital video output

  • Peripheral ports for display, mouse, keyboard, etc.

  • Power input and switch

Technical Specifications



Interface Parameter Range Tolerance
CVBS Intensity Level 0–700 mV ±(2%X + 6mV)
  Color Level 0–885.1 mV ±(2%X + 6mV)
  Chrominance Phase 0–360° ±2°
YPbPr Luminance (Y) 0–700 mV ±(2%X + 6mV)
  Color Difference (Pb, Pr) -350–350 mV ±(2%X + 6mV)

Software Operation
The system software includes controls for:

  • Time: Video format selection

  • Pattern: Test signal type

  • Pixel: Sampling mode

  • Audio Freq/Level: Audio settings

  • Preview/Play: Signal preview and playback

  • Minimize/Close: Window management

Three Vertical Bar Signal
As defined in IEC 60107-1:1997, this signal produces three equidistant vertical white bars on a black background. Each bar is 1/6 of the picture width. It features a 50% APL and includes reference white level, suitable for luminance and signal level calibration. For SECAM, a subcarrier is superimposed corresponding to black and white levels.

  • Advanced Charge / Discharge Battery Testing System with Supplementary Safety Protection Assessment 1
