8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing

Gambar besar : 8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	Haida
Sertifikasi:	CE,,ISO
Nomor model:	8040-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman:	20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Menyediakan kemampuan:	300 set per bulan

Kontak

8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing

Deskripsi

Dinding Tabung:	Dinding normal, dinding tipis, dinding ultra-tipis	Spesifikasi tabung jarum:	0.1 ∙4.0mm
Atur beban:	1.0 ～ Keakuratan 100n: ± 0,01n	Kecepatan Memuat:	1mm/mnt (0,1 ～ 200mm/min dapat disesuaikan)
Rentang rentang:	Keakuratan: ±0.01mm	Tes defleksi:	0 ～ akurasi 10mm: ± 0,001mm
Dimensi (LDT):	460380450mm	Pengendali:	Tipe Pengontrol LCD
Kekuatan:	AC220V/50Hz	Berat:	28kg
Menyoroti:	0.1～4.0mm Needle Tube Medical Needle Tester , 1.0～100N Set Load Syringe Puncture Force Tester , 7-inch Touch Screen Medical Device Tester

8040-HD Medical Needle Tip Strength and Piercing Force Tester

The 8040-HD Medical Needle Tip Strength and Piercing Force Tester is designed to evaluate the puncture force performance of syringe tips, determining whether the sharpness meets standard requirements. This instrument is also known as a Syringe Puncture Force Tester.

Product Features

Tests puncture force performance of syringe tips
Evaluates needle sharpness against standard requirements
Professional medical testing equipment

Technical Parameters

Feature	Description

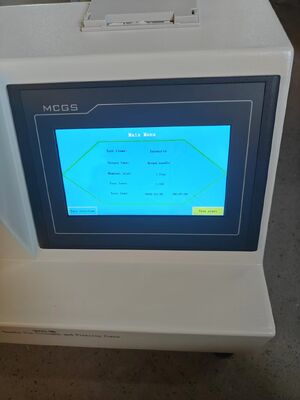

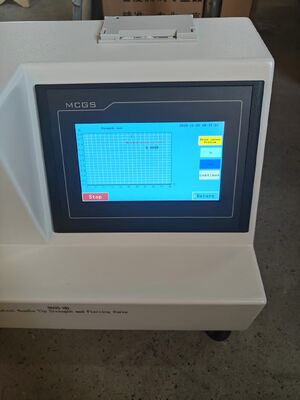

Display	7-inch K600+ core/dot matrix 65-color, 800*480 resolution touch screen with dynamic loading force value display via PLC control system
User Interface	Selectable: Chinese / English / Chinese-English switchable
Control & Data Acquisition	Digital closed-loop control, AD sampling speed of 500KHz, internal resolution of 500,000
Data & Protection	High-precision clock chip, power-off storage; Overload alarm and automatic shutdown protection
Touch Controls	Nominal specification, Test item, Applied load, Print, Test, Up, Down, Time, Calibration
Printing	Built-in printer outputs test results

About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. In 2006, our textile, footwear, leather, and mask testing equipment officially entered production and began serving the international market.

Why Choose Haida?

Design & Production

Solution consultation for each order
Recommendation of the most cost-performance machines
Research and development of specialized models for specific requirements

Shipping & Delivery

One-stop service from production to delivery
Complete delivery to your door including installation and training
Comprehensive technical support

Warranty

1-year warranty with lifetime technology support

After-Sale Service

Response within 2 hours
Combined video inspection and on-site service

Frequently Asked Questions

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we offer technical support and replacement parts. If necessary, our engineers may provide on-site service at your location.

Q: What is the order process?

A: Inquiry → Quotation → Requirement confirmation → Order confirmation → Payment → Production → Testing and debugging → Packing → Document confirmation → Delivery arrangement → Product shipment → Customer receipt → After-sales service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory. We will help arrange hotel accommodations and provide airport pickup service.

Q: Do you accept customization service?

A: Yes, we offer both standard machines and customized equipment according to your specific requirements. Please share your needs with us, and we will do our best to meet them.
