8041-HD Medical Suture Diameter Tester

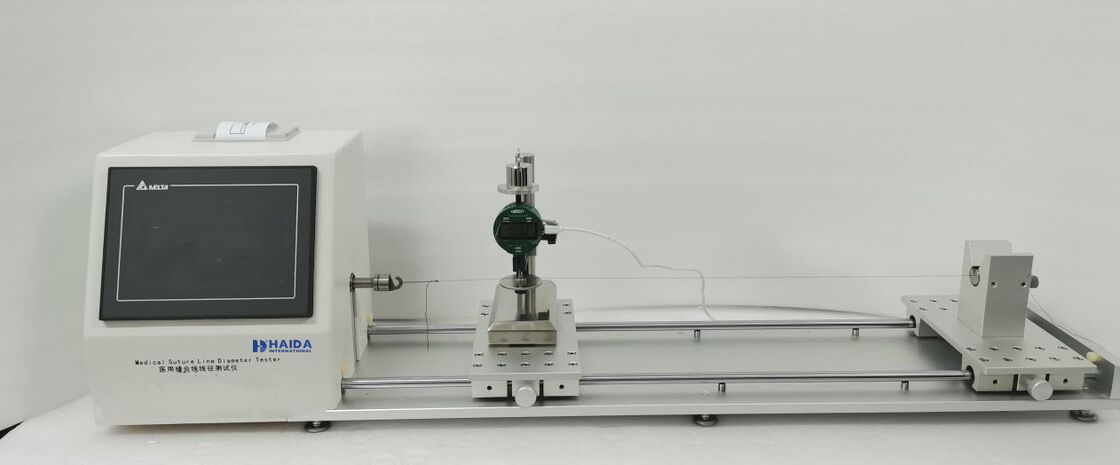

Gambar besar : 8041-HD Medical Suture Diameter Tester

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	HAIDA
Nomor model:	8041-HD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

8041-HD Medical Suture Diameter Tester

Deskripsi

Jenis:	tangki air penyimpanan	Kelas akurasi:	Akurasi standar
Ketepatan:	Dalam ±15%	Aplikasi:	PV
Dukungan yang disesuaikan:	OEM, ODM	Kekuatan:	220V 50HZ
Kelas Perlindungan:	/	Voltase:	Peralatan Listrik 220V
Jaminan:	1 Tahun	Dimensi Dalam:	7007001200mm
Dimensi eksternal:	100010001320mm	Ukuran sampel maks:	300400100mm
Contoh Metode Pengangkatan:	Lengkapi kerekan listrik untuk membawa sampel ke atas dan ke bawah	Berat Sampel:	Maksimal hingga 100kg
Kekuatan:	Fase tunggal, 220V 50Hz	standar tes:	IEC 60529 - IPX7
Menyoroti:	medical suture diameter tester , HD suture diameter measurement , PV module testing equipment with warranty

8041-HD Medical Suture Diameter Tester

Product Features

Equipped with a 7-inch K600+ core/dot matrix 65-color touchscreen display at 800*480 resolution. The PLC control system dynamically displays the loading force value. The operable interface is selectable: Chinese/English/Chinese-English switchable. It features digital closed-loop control, an AD acquisition speed of 500KHz, and an internal resolution of 500,000 counts. Includes a high-precision clock chip for power-off storage and overload alarm with automatic shutdown protection. Touch controls include: Nominal Size, Test Load, Print, Test, Move Left, Move Right, Time, and Calibration. Utilizes weight loading for tension, automatically records diameter data, automatically outputs data reports, and prints test results via the built-in printer.

Design Standards

Manufactured in accordance with the clauses related to diameter testing in standards YY1116-2020 "Absorbable Surgical Suture" and YY0167-2020 "Non-Absorbable Surgical Suture".

Technical Parameters

Parameter	Specification
Nominal Size Range	12-0 to 10 medical sutures
Diameter Measurement Range	0–5 mm
Measurement Error	≤ ±1‰
Resolution	0.001 mm
Presser Foot Diameter	12.7 ± 0.02 mm
Reference Plate Diameter	50 mm
Presser Foot & Plate Flatness	≤ ±0.005 mm
Presser Foot & Plate Parallelism	≤ 0.5%
Loading Weights Range	0–2 Kg
Weight Accuracy	±0.1 g
Presser Foot Load	≤60 g, 210 g ± 3 g
Print Method	Can print 3-point (1/4, 1/2, 3/4 positions) measurement data and average value; Can print the average of 10 tests, their overall average, and deviation.
Shipping List	Main unit x1, Certificate of Conformity x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching hook weights.
Power Supply	AC 90V-240V / 50Hz
Data Saving	Onboard dot matrix printer / USB export to computer
Net Weight	38 kg
Overall Dimensions	320 * 1200 * 280 (mm)
