5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection
5083-HD Leak Test Machine with 300mm Max Width & 40g Injection 5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Gambar besar :  5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Detail produk:
Tempat asal: CINA
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 5083-hd
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Deskripsi
Sudut pengukur: 20 °/ 60 °/ 85 ° Kecepatan pemotongan: 100 ~ 3000mm/min dapat disesuaikan
Lebar pemrosesan maksimum: 300mm Stroke sekrup: 90 mm
Akurasi waktu: 0.1S Volume injeksi maksimum: 40g
Silinder: Diameter9.5504 ± 0,0076mm Berat: Tergantung pada model tertentu
Rentang Diameter Pipa: Φ2-φ2000mm Sudut Mengupas: 90 °
Rentang waktu: 0-10000h Kapasitas injeksi: 40*65 cm³
Menyoroti:

5083-HD leak test machine

,

leak test machine 300mm width

,

plastic test equipment with injection

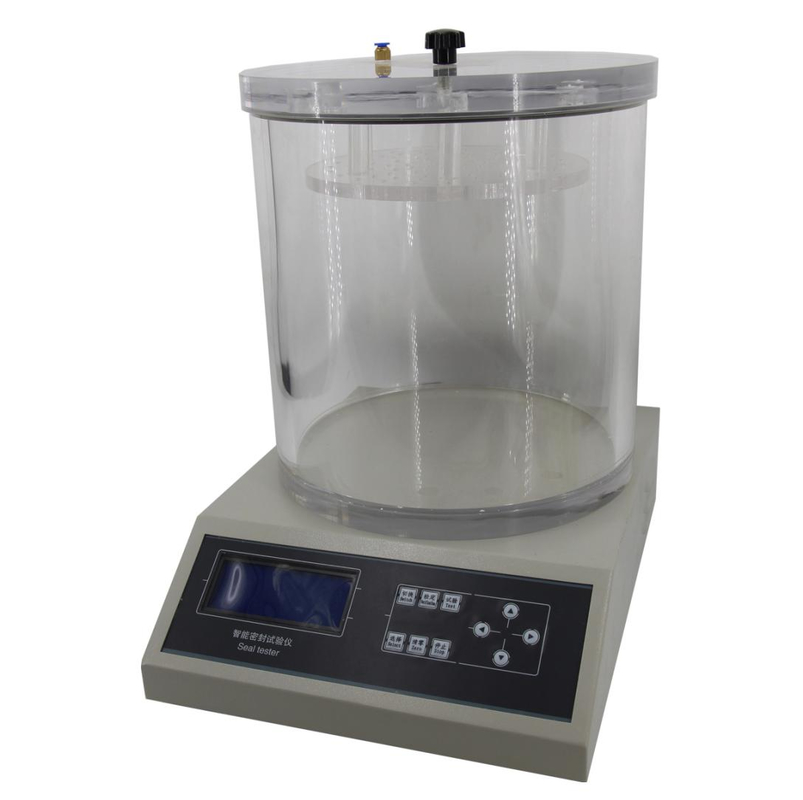

5083-HD Leak Test Machine (Vacuum Tester)
5083-HD Leak Test Machine with 300mm Max Width & 40g Injection 0
Product Description
This leak test machine is suitable for sealing tests of bottles, pipes, cans, and boxes in various industries including food, pharmaceutical, medical equipment, daily chemical, automotive, electronic components, and stationery. It can also evaluate sealing performance after impact tests and pressure resistance tests.
Design Standard
ASTM D3078, GB/T 15171
Test Principle
  • By evacuating the vacuum chamber, the sample immersed in water generates a pressure difference between inside and outside, allowing observation of gas escape to determine sealing performance
  • Through vacuum chamber evacuation, the sample develops internal/external pressure difference, enabling observation of sample expansion and shape recovery after vacuum release to assess sealing capability
Technical Parameters
Item Description
Vacuum Density -90-0kPa
Accuracy ± 0.1kPa
Pressure speed 1m/s
Available Vacuum room Size Standard: Φ270mm*210mm(H) (other sizes available)
Air pressure 0.7MPa (user-provided)
Gas Source interface Φ6PU pipe
Control ways Microcomputer control, automatic test
Display ways LCD display
Power AC 220V 50Hz (AC110V 50HZ)

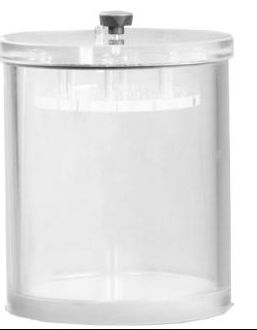

Standard Configuration Main unit, experimental sealed barrels, power cords
Net Weight 16kg
Dimensions (L*W*H) 420*320*520mm
About Haida International Equipment Co., Ltd
Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. Since 2006, our testing equipment has been in production and successfully entered international markets.
Why Choose Haida?
  • Design & Production: Solution consultation for each order, recommendation of most cost-effective machines, and R&D for special-designed models
  • Shipping & Delivery: One-stop service from production to door delivery, including installation, training, and technical support
  • Warranty: 1 year warranty with lifetime technology support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: How about your warranty?
A: Our standard warranty is one year. During this period, we provide technical support and replacement parts as needed. For complex issues, our engineers may visit your location for service.
Q: What is the order process?
A: Our process includes: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Q: Can we visit your factory before ordering?
A: Yes, we warmly welcome visits and can assist with hotel arrangements and airport transfers.
Q: Do you accept customization service?
A: Absolutely. We offer both standard machines and customized solutions tailored to your specific requirements.
