EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Gambar besar :  EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Detail produk:
Tempat asal: CINA
Nama merek: Haida
Sertifikasi: CE,,ISO
Nomor model: 5085-HD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kasing kayu yang
Waktu pengiriman: 20 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran: L/C, T/T, D/A, D/P, Western Union, Moneygram
Menyediakan kemampuan: 300 set per bulan
Kontak

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Deskripsi
Waktu injeksi: 0-9999S [disesuaikan] Resolusi Torsi: 0.001NM
Jaminan: 1 tahun Metode operasi: Kontrol Listrik
Daya pemanas: 4KW Waktu pengisian daya: 0 ~ 999 · Programmable
Rentang tes: 0.005-300W/(m*K) Akurasi perpindahan: 0.01mm
Penyelam: Diameter9.4742 ± 0,0076mm Penggunaan: Pengujian
Mode uji a: Suhu kamar Kecepatan sekrup: 0 ~ 150 rpm
Kisaran suhu: Suhu normal-30 ° Cor -50 ° C. Pemegang Spesimen: Lebar Groove Dalam 12mm
Ukuran eksternal: 900*500*800 (W*d*h)

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
SOFTWARE DETAILS

APPLICATIONS

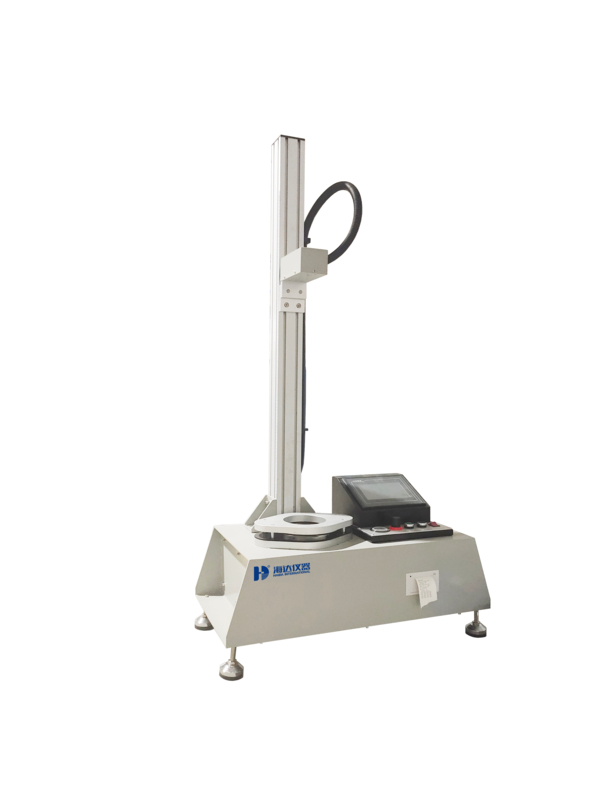

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

GENERAL SPECIFICATIONS

Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm

Estimated Gross Weight: 130kg

Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)

STANDARD FEATURES
Test Item Specification
Testing sample mass Method A: 50-2000g; Method B: 300-2000g
Testing accuracy 0.1g (0.1J)
Testing method Method A & Method B (Option)
Specimen size ＞150mm×150mm
Diameter of impacting head Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm
Diameter of dart shaft Ф6.5±0.1mm
Inner diameter of specimen fixture 125±2 mm
Impacting height Method A : 0-660mm, Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic
